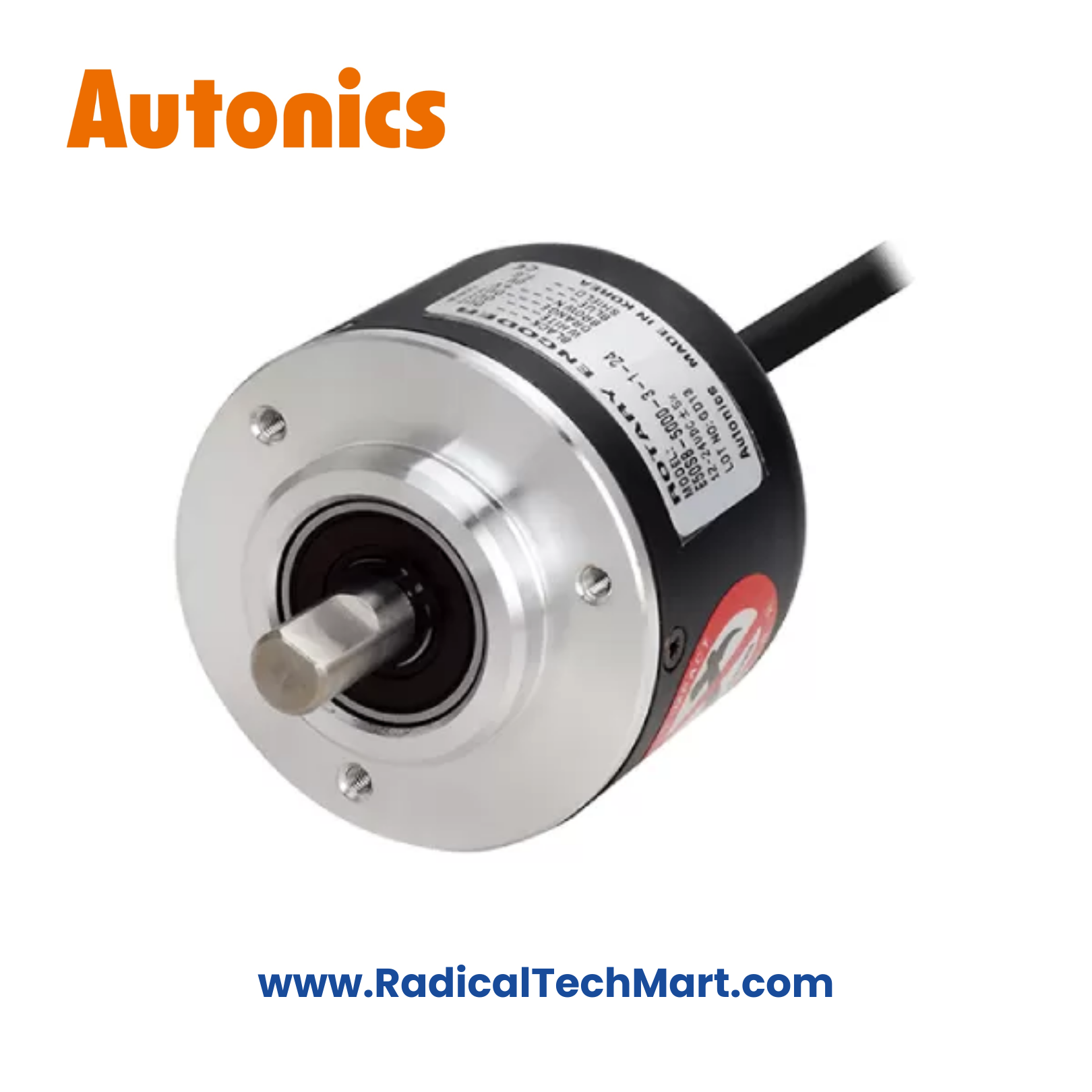

Autonics E50S8-5000-6-L-5 Rotary Encoder
High-resolution 5000 P/R rotary encoder with line driver output, designed for precision motion feedback in automation systems.
Product Summary:
The Autonics E50S8-5000-6-L-5 is a compact and reliable rotary encoder with 5000 pulses per revolution, offering excellent signal accuracy and response for industrial automation and motion control applications.
Key Features:
Shaft outer diameter: Ø8mm
High resolution: 5000 P/R
Max. response frequency: 300kHz
Line driver control output
IP50 protection structure
Axial cable connection
Power supply: 5VDC
Comes with Ø8mm coupling and mounting bracket
Applications:
Position and speed feedback in servo systems
Motion control in CNC machinery
Industrial automation lines
Conveyor belt synchronization
Robotics and stepper motor applications
Product Benefits:
High precision and repeatability
Compact design for easy installation
Durable in industrial environments
Supports high-speed operations (up to 5000rpm)
Reliable signal transmission with line driver output
FAQs:
Q1. What does 5000P/R mean in this rotary encoder?
A1. It means the encoder generates 5000 pulses per revolution, offering high-resolution position feedback.
Q2. Can this encoder be used with PLCs or motion controllers?
A2. Yes, the line driver output makes it compatible with most PLCs and motion controllers requiring differential signals.
Q3. What’s included in the package?
A3. The package includes the encoder, an Ø8mm coupling, and a mounting bracket for easy installation.
