Autonics E50S8-600-3-T-1 Rotary Encoder

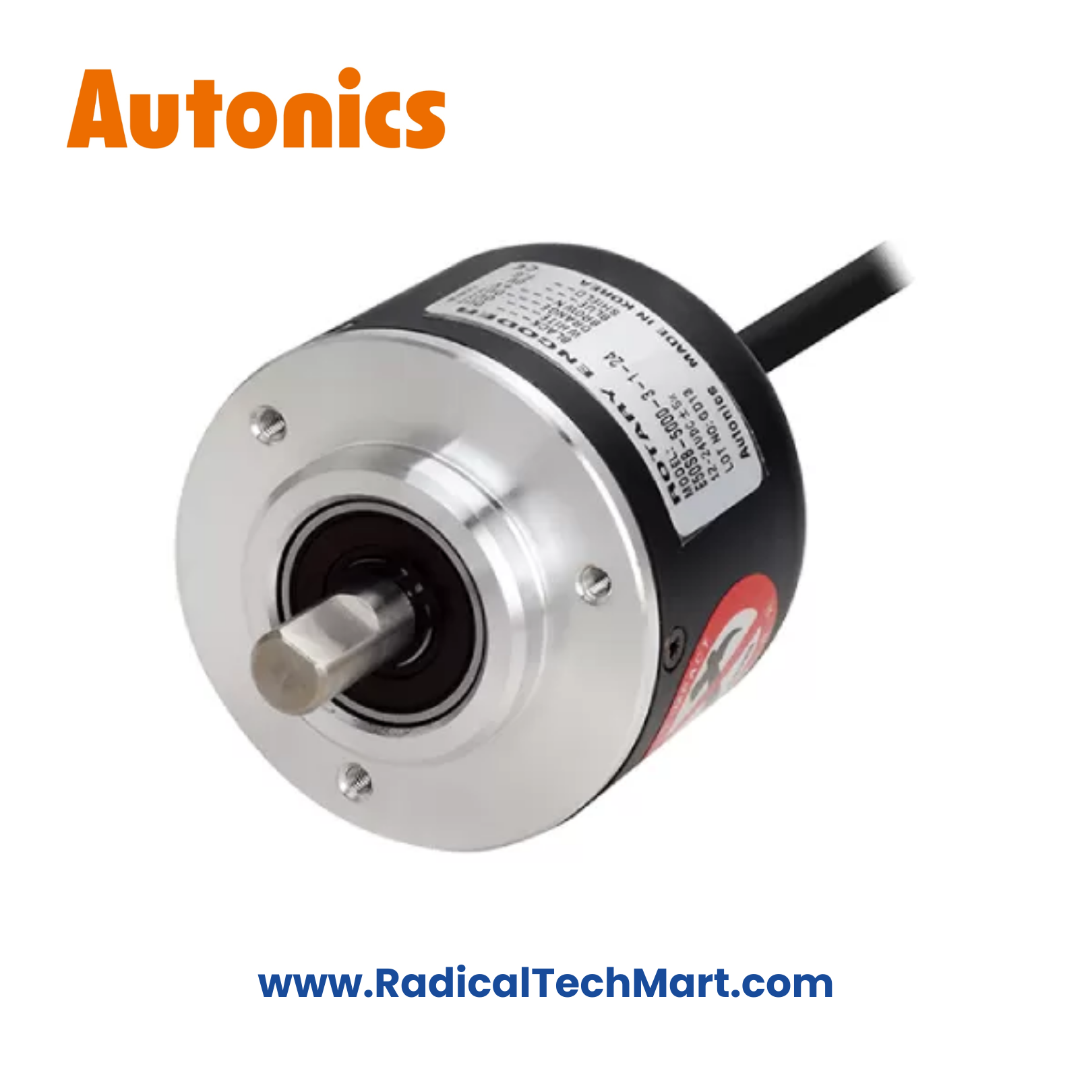

Autonics E50S8-600-3-T-1 Incremental Rotary Encoder (50 mm, Solid Shaft, 600 PPR)
Autonics E50S8-600-3-T-1 is a 50 mm solid-shaft incremental rotary encoder with 600 PPR resolution and A, B, Z totem-pole output, ideal for accurate speed and position feedback in industrial automation systems.
Customize
Share :
The Autonics E50S8-600-3-T-1 is a 50 mm diameter incremental rotary encoder featuring a solid Ø 8 mm shaft and 600 pulses per revolution (PPR). It provides A, B, and Z phase outputs via a totem-pole output circuit, ensuring fast response and compatibility with PLCs, counters, and motion controllers.
This model offers a balanced resolution for applications that require accurate speed and position monitoring without ultra-high pulse counts, making it suitable for general industrial automation.
Key Features
Rugged 50 mm industrial encoder housing
Solid shaft design (Ø 8 mm)
600 PPR resolution
A, B, Z phase incremental outputs
Totem-pole output circuit
Stable performance at industrial speeds
Shielded cable for noise immunity
Easy installation on motors and machinery
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E50S8-600-3-T-1 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 600 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 5 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Applications
Conveyor speed monitoring
Industrial motor RPM feedback
Packaging and material handling machines
Counting and indexing systems
PLC-based automation panels
General-purpose industrial machinery
What’s in the Box?
Autonics E50S8-600-3-T-1 Rotary Encoder
Mounting hardware
Instruction manual
FAQs
Q1. What does 600 PPR mean?
It means the encoder outputs 600 pulses per shaft revolution, suitable for medium-resolution speed and position feedback.
Q2. Is this encoder compatible with PLCs?
Yes, it works with PLCs and counters that accept totem-pole incremental encoder inputs.
Q3. What power supply does this model require?
This encoder operates on 5 V DC.
Q4. Can this encoder be used for continuous operation?
Yes, it supports continuous industrial operation up to 5000 rpm.
Q5. Is it suitable for industrial environments?
Yes, it is designed for indoor industrial use with IP50 protection.
