Autonics E50S8-8000-3-T-24 Rotary Encoder

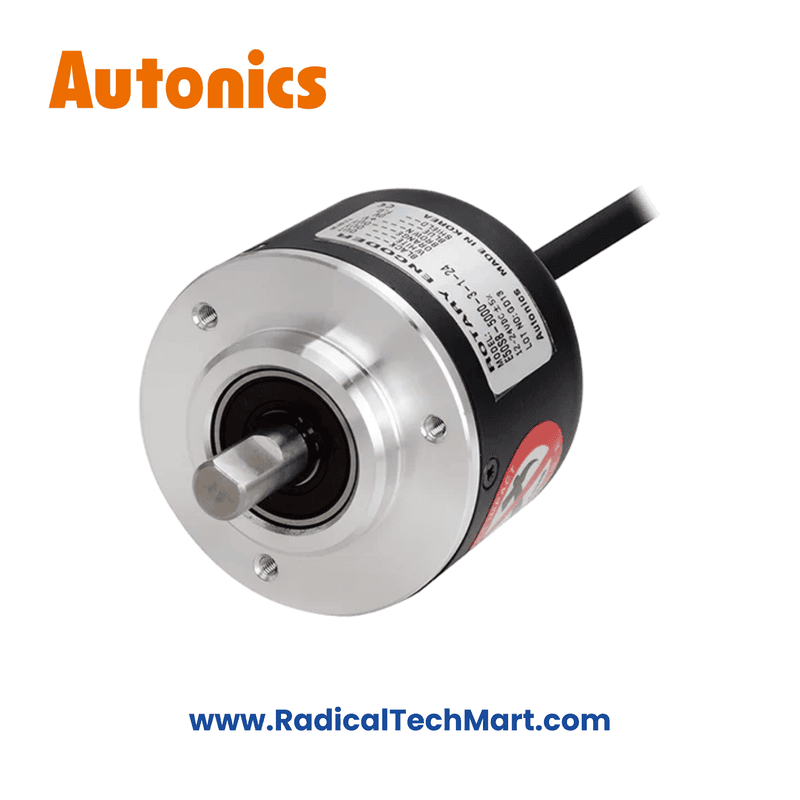

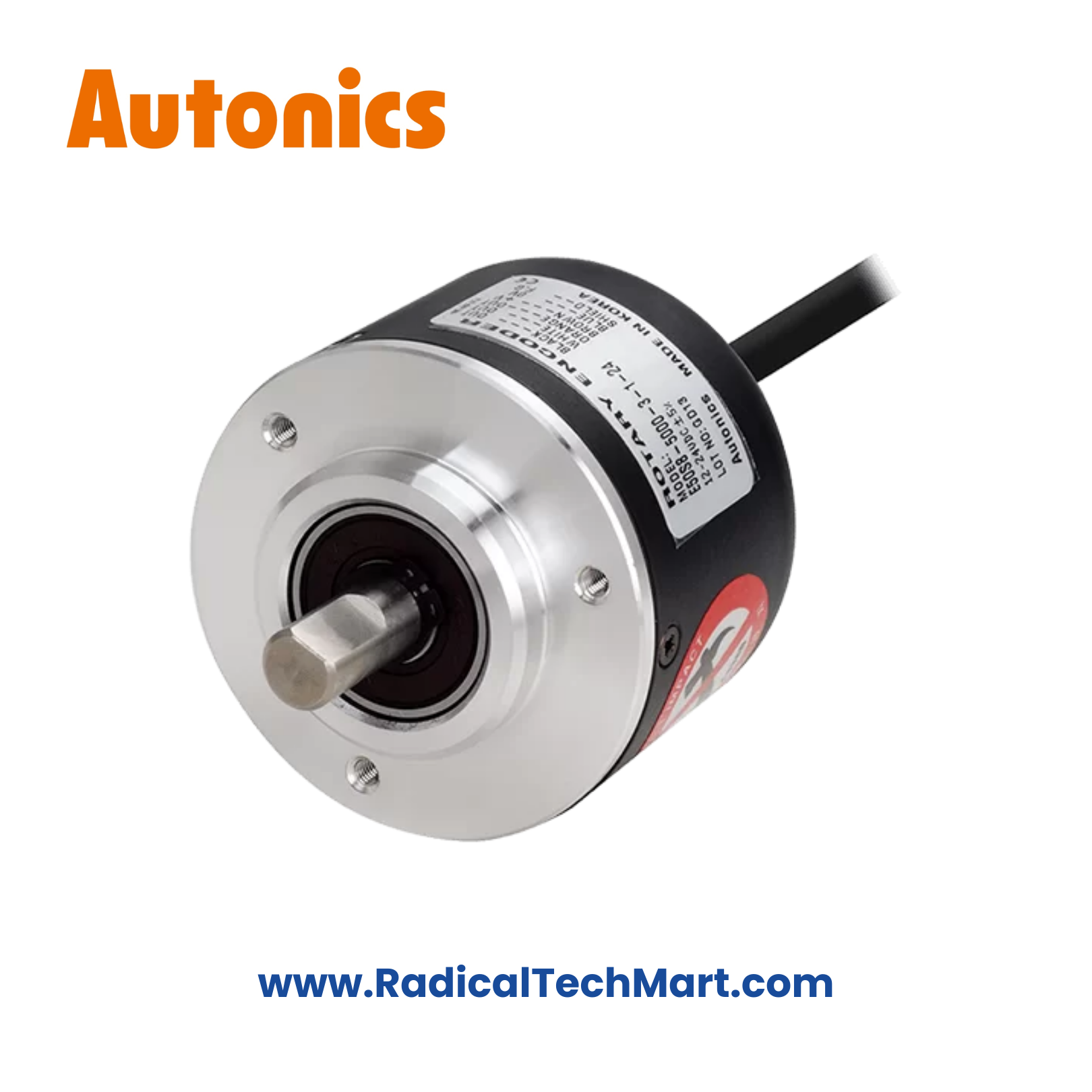

Autonics E50S8-8000-3-T-24 Incremental Rotary Encoder (50 mm, Solid Shaft, 8000 PPR)
Autonics E50S8-8000-3-T-24 is a 50 mm solid-shaft incremental rotary encoder with 8000 PPR ultra-high resolution and A, B, and Z totem-pole output, designed for extremely precise speed and position feedback in advanced industrial automation.
TheAutonics E50S8-8000-3-T-24 is a 50 mm diameter incremental rotary encoder with a solid Ø 8 mm shaft and an ultra-high resolution of 8000 pulses per revolution (PPR). It provides A, B, and Z phase outputs using a totem-pole output circuit and operates on 12–24 V DC, ensuring compatibility with most PLCs, counters, and motion controllers.
This model is ideal for applications requiring extremely fine angular resolution, such as precision indexing, advanced automation, and high-accuracy motion control systems.
This model is ideal for applications requiring extremely fine angular resolution, such as precision indexing, advanced automation, and high-accuracy motion control systems.
Key Features
- Rugged 50 mm industrial encoder housing
- Solid shaft design (Ø 8 mm)
- Ultra-high resolution: 8000 PPR
- A, B, Z phase incremental outputs
- Totem-pole output circuit
- 12–24 V DC wide power supply
- High-speed signal response
- Shielded cable for noise immunity
- Reliable long-term industrial performance
Technical Specifications
Parameter Specification Model E50S8-8000-3-T-24 Encoder Type Incremental Rotary Encoder Housing Diameter 50 mm Shaft Type Solid Shaft Diameter Ø 8 mm Resolution 8000 PPR Output Phase A, B, Z Output Circuit Totem-pole Power Supply 12–24 V DC ±5% Max Response Frequency 300 kHz Max Allowable Speed 5000 rpm Protection Rating IP50 Operating Temperature −10 to +70 °C Weight ≈ 180 g
| Parameter | Specification |
|---|---|
| Model | E50S8-8000-3-T-24 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 8000 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 12–24 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Applications
- Ultra-precision motion control systems
- High-accuracy positioning and indexing machines
- CNC and advanced automation equipment
- Precision speed and position feedback
- Conveyor synchronization systems
- PLC-based automation panels
What’s in the Box?
Autonics E50S8-8000-3-T-24 Rotary Encoder
Mounting hardware
Instruction manual
Autonics E50S8-8000-3-T-24 Rotary Encoder
Mounting hardware
Instruction manual
FAQs
Q1. What does 8000 PPR mean?
It means the encoder generates 8000 pulses per shaft revolution, enabling extremely fine speed and position measurement.
Q2. Is this encoder compatible with PLCs?
Yes, it works with PLCs and controllers supporting totem-pole incremental encoder inputs.
Q3. What power supply does this model require?
This encoder operates on 12–24 V DC.
Q4. Can it be used for high-speed applications?
Yes, it supports shaft speeds up to 5000 rpm within rated limits.
Q5. Is this encoder suitable for industrial use?
Yes, it is designed for indoor industrial environments with IP50 protection.
