Autonics ENC-1-1-T-24 Rotary Encoder

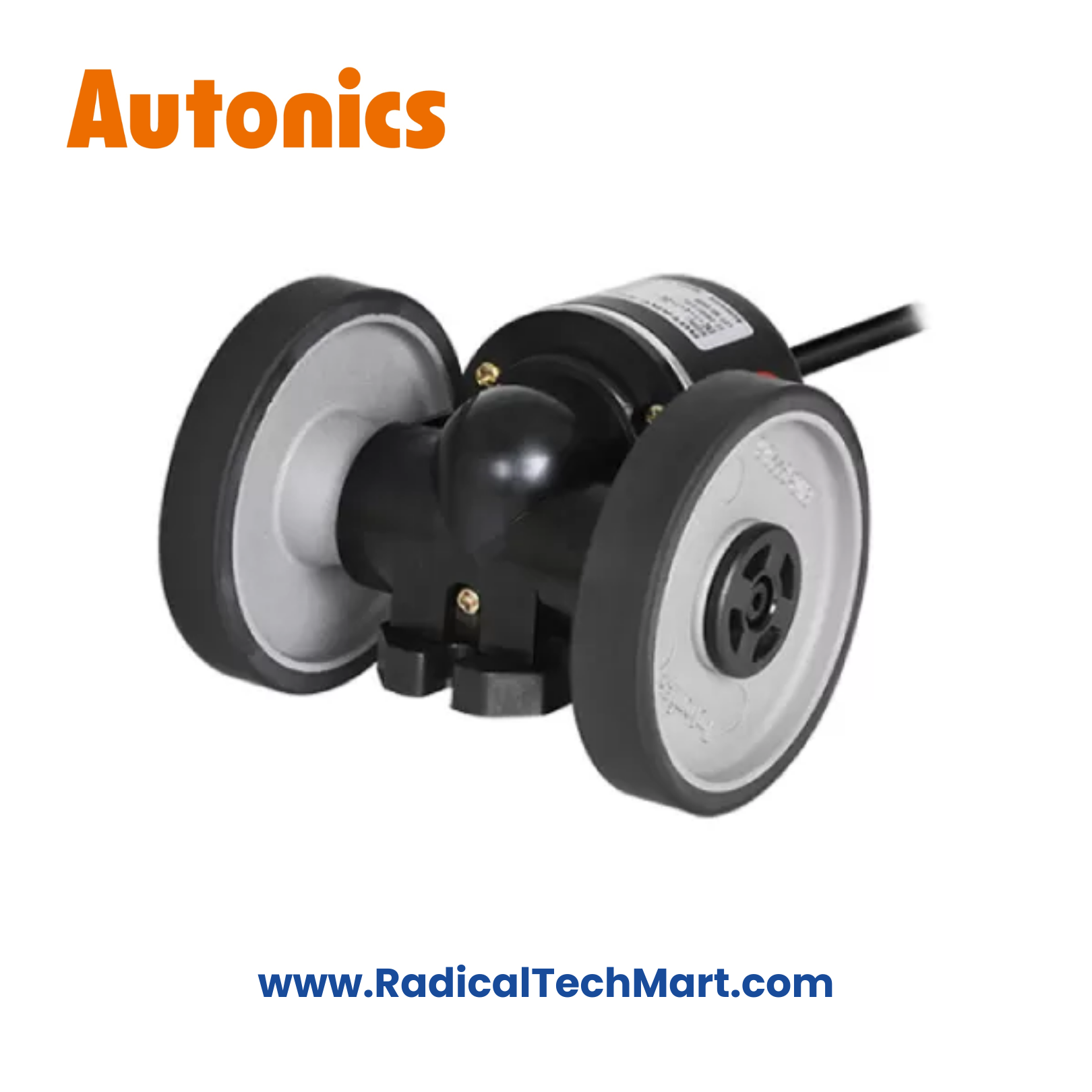

Autonics ENC-1-1-T-24 Wheel Type Incremental Rotary Encoder (Totem Pole, 24V)
Autonics ENC-1-1-T-24 is a wheel-type incremental rotary encoder with A/B phase output, a 1 mm measuring unit, and a 12–24 V DC supply, designed for accurate linear length and speed measurement on conveyors and moving materials.
The Autonics ENC-1-1-T-24 is a wheel-type incremental rotary encoder engineered for linear distance and speed measurement. It features a 1 mm measuring unit per pulse, A/B phase output, and a totem-pole output circuit, ensuring fast response and compatibility with PLCs, counters, and automation controllers.
Operating on a 12–24 V DC power supply, this encoder is widely used in conveyor systems, material feeding lines, textile machinery, and packaging equipment, where precise length measurement is required.
Key Features
Wheel-type encoder for direct linear measurement
1 mm per pulse measuring unit
Incremental A, B phase output
Totem-pole output circuit
12–24 V DC power supply
High response speed up to 180 kHz
Maximum allowable speed: 5000 rpm
Shielded cable for noise suppression
Rugged industrial construction
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ENC-1-1-T-24 |
| Encoder Type | Wheel-Type Incremental Encoder |
| Output Phase | A, B |
| Measuring Unit | 1 mm / pulse |
| Control Output | Totem-pole |
| Power Supply | 12–24 V DC ±5% |
| Max Response Frequency | 180 kHz |
| Max Allowable Speed | 5000 rpm |
| Output Current | ≤ 30 mA |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Unit Weight | ≈ 494 g |
| Connection | Axial cable / M17 connector type |
Applications
Conveyor belt length measurement
Packaging and labeling machines
Textile and wire processing machines
Printing and cutting machines
Material feeding and batching systems
PLC-based automation systems
What’s in the Box?
Autonics ENC-1-1-T-24 Wheel Type Encoder
Instruction manual
FAQs
Q1. What does the 1 mm measuring unit mean?
Each encoder pulse corresponds to 1 mm of linear movement.
Q2. Is this encoder suitable for conveyors?
Yes, it is specifically designed for conveyor and linear length measurement applications.
Q3. What output type does this model use?
It uses a totem-pole output, compatible with most PLCs and counters.
Q4. What power supply is required?
This model operates on 12–24 V DC.
Q5. Can this be used in industrial environments?
Yes, it is designed for indoor industrial use with IP50 protection.
