Autonics ENC-1-2-T-24 Rotary Encoder

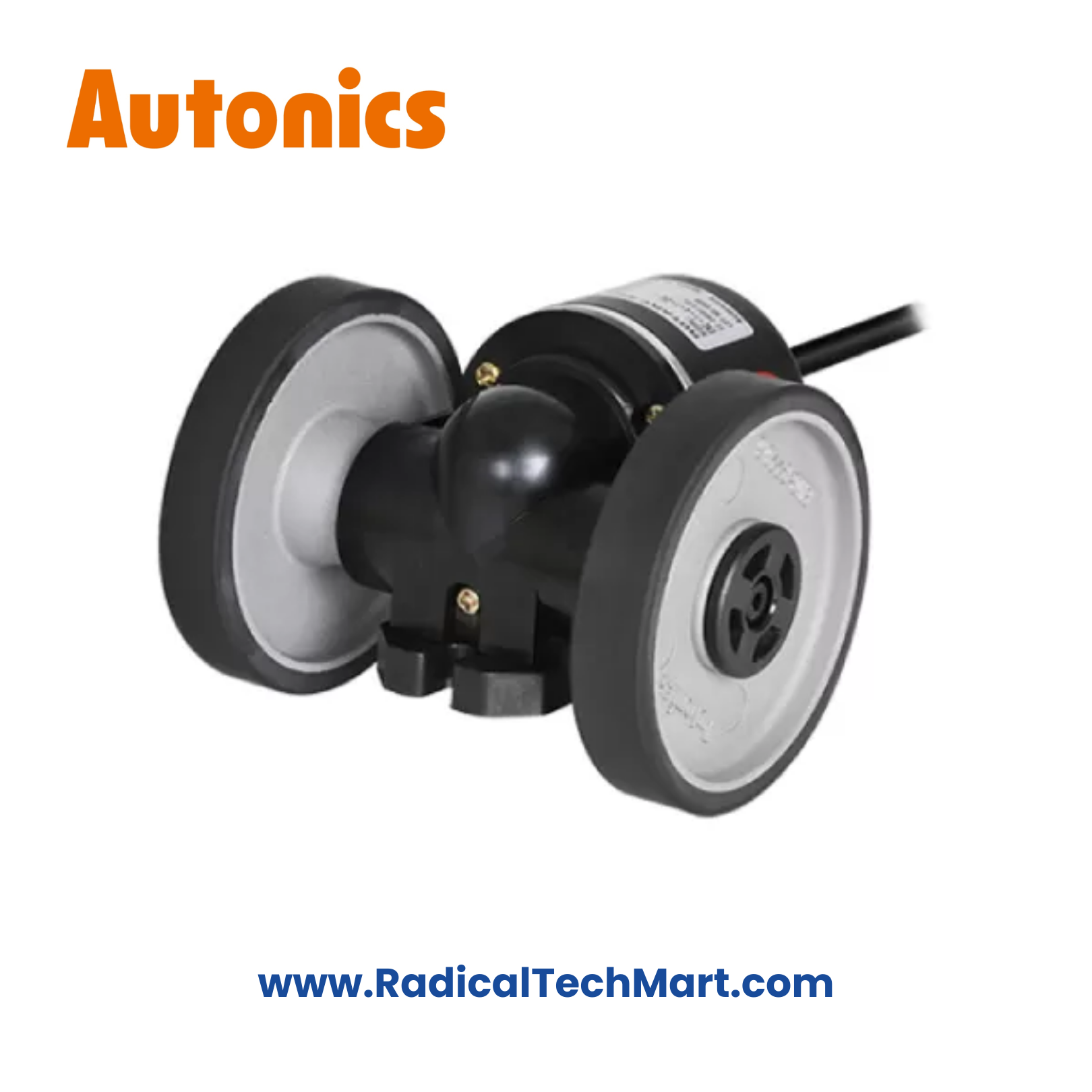

Autonics ENC-1-2-T-24 Wheel Type Incremental Rotary Encoder (Totem Pole, 24V)
Autonics ENC-1-2-T-24 is a wheel-type incremental rotary encoder with 2 mm measuring unit per pulse and A/B phase totem-pole output, designed for accurate linear length and speed measurement in conveyor and material handling applications.
The Autonics ENC-1-2-T-24 is a wheel-type incremental rotary encoder developed for linear distance and speed measurement. With a 2 mm measuring unit per pulse, it enables direct length measurement by contacting the moving material or conveyor surface.
It provides A and B phase incremental outputs through a totem-pole circuit and operates on a 12–24 V DC power supply, making it fully compatible with PLCs, counters, and automation controllers used in industrial environments.
It provides A and B phase incremental outputs through a totem-pole circuit and operates on a 12–24 V DC power supply, making it fully compatible with PLCs, counters, and automation controllers used in industrial environments.
Key Features
- Wheel-type encoder for direct linear measurement
- 2 mm per pulse measuring unit
- Incremental A, B phase output
- Totem-pole output circuit
- 12–24 V DC wide power supply
- High response frequency up to 180 kHz
- Maximum allowable speed 5000 rpm
- Shielded cable for noise suppression
- Rugged construction for industrial use
Technical Specifications
Parameter Specification Model ENC-1-2-T-24 Encoder Type Wheel Type Incremental Encoder Output Phase A, B Measuring Unit 2 mm / pulse Output Circuit Totem-pole Power Supply 12–24 V DC ±5% Max Response Frequency 180 kHz Max Allowable Speed 5000 rpm Output Current ≤ 30 mA Protection Rating IP50 Operating Temperature −10 to +70 °C Weight ≈ 494 g
| Parameter | Specification |
|---|---|
| Model | ENC-1-2-T-24 |
| Encoder Type | Wheel Type Incremental Encoder |
| Output Phase | A, B |
| Measuring Unit | 2 mm / pulse |
| Output Circuit | Totem-pole |
| Power Supply | 12–24 V DC ±5% |
| Max Response Frequency | 180 kHz |
| Max Allowable Speed | 5000 rpm |
| Output Current | ≤ 30 mA |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 494 g |
Applications
- Conveyor belt length measurement
- Packaging and labeling machines
- Textile and wire processing machinery
- Printing, cutting, and slitting machines
- Material feeding and batching systems
PLC-based automation panels
PLC-based automation panels
What’s in the Box?
- Autonics ENC-1-2-T-24 Wheel Type Encoder
- Instruction manual
FAQs
Q1. What does the 2 mm measuring unit mean?
Each encoder pulse represents 2 mm of linear movement.
Q2. Is this encoder suitable for conveyors?
Yes, it is specifically designed for conveyor and linear length measurement applications.
Q3. What output type does this model provide?
It provides A/B phase incremental output with totem-pole circuitry.
Q4. What power supply is required?
This encoder operates on 12–24 V DC.
Q5. Is it suitable for industrial environments?
Yes, it is designed for indoor industrial use with IP50 protection.
