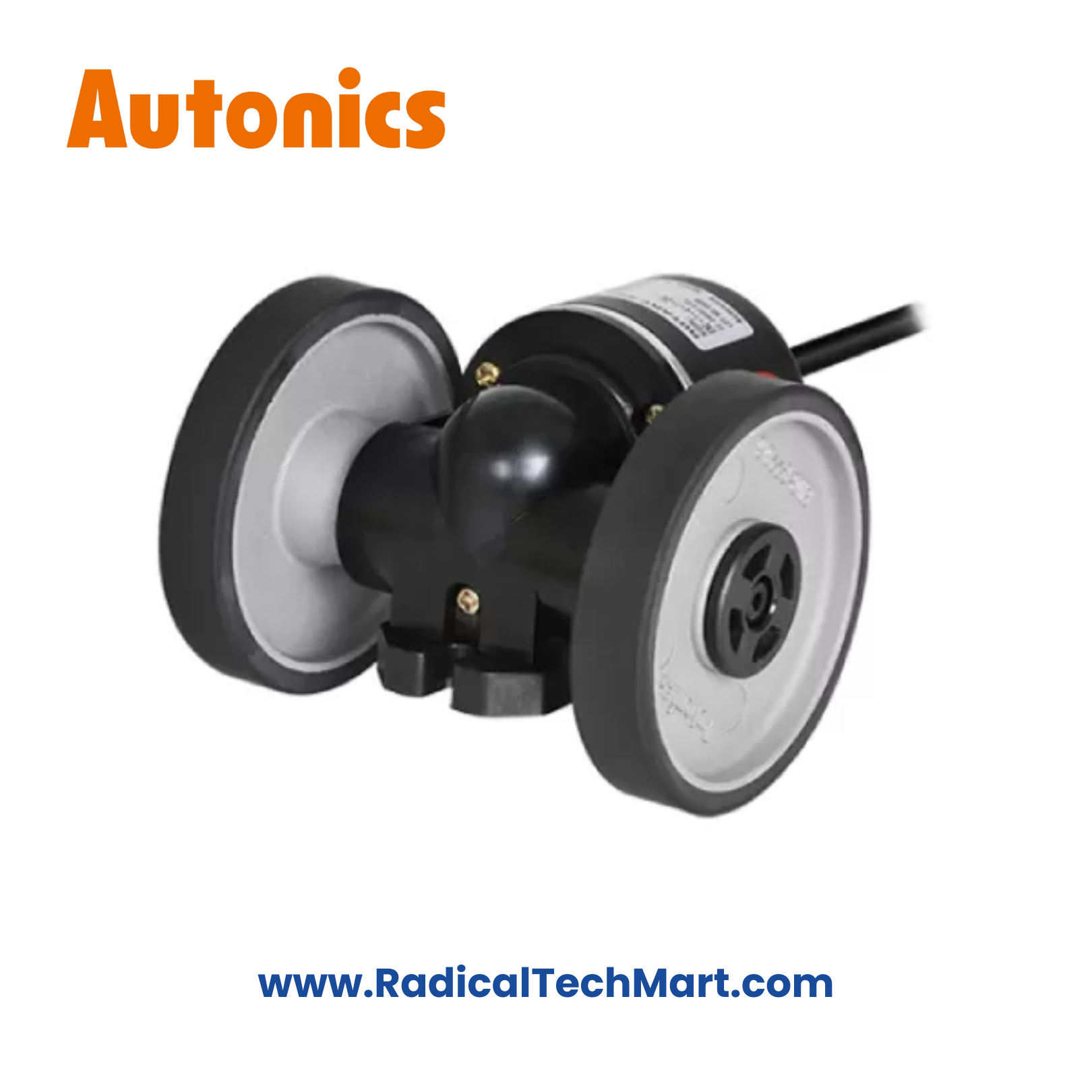

Autonics ENC-1-3-T-24 Wheel Type Incremental Rotary Encoder (Totem Pole, 24V)
Autonics ENC-1-3-T-24 is a wheel-type incremental rotary encoder with a 3 mm measuring unit per pulse and A/B phase totem-pole output, designed for reliable linear length and speed measurement in industrial conveyor and material handling systems.
The Autonics ENC-1-3-T-24 is a wheel-type incremental rotary encoder developed for direct linear distance and speed measurement. With a 3 mm measuring unit per pulse, it allows accurate tracking of material movement by direct contact with conveyors or moving products.
It provides A and B phase incremental outputs through a totem-pole output circuit and operates on a 12–24 V DC power supply, making it fully compatible with PLCs, counters, and industrial automation controllers.
Key Features
Wheel-type encoder for direct linear measurement
3 mm per pulse measuring unit
Incremental A, B phase output
Totem-pole output circuit
12–24 V DC wide power supply
High response frequency up to 180 kHz
Maximum allowable speed 5000 rpm
Shielded cable for noise suppression
Rugged industrial construction
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ENC-1-3-T-24 |
| Encoder Type | Wheel Type Incremental Encoder |
| Output Phase | A, B |
| Measuring Unit | 3 mm / pulse |
| Output Circuit | Totem-pole |
| Power Supply | 12–24 V DC ±5% |
| Max Response Frequency | 180 kHz |
| Max Allowable Speed | 5000 rpm |
| Output Current | ≤ 30 mA |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 494 g |
Applications
Conveyor belt length measurement
Packaging and labeling machines
Textile and wire processing machinery
Printing, cutting, and slitting machines
Material feeding and batching systems
PLC-based automation panels
What’s in the Box?
Autonics ENC-1-3-T-24 Wheel Type Encoder
Instruction manual
FAQs
Q1. What does 3 mm measuring unit mean?
Each encoder pulse represents 3 mm of linear movement.
Q2. Is this encoder suitable for conveyors?
Yes, it is designed specifically for conveyor and linear length measurement applications.
Q3. What output type does this model provide?
It provides A/B phase incremental output with totem-pole circuitry.
Q4. What power supply is required?
This encoder operates on 12–24 V DC.
Q5. Is it suitable for industrial environments?
Yes, it is designed for indoor industrial use with IP50 protection.
