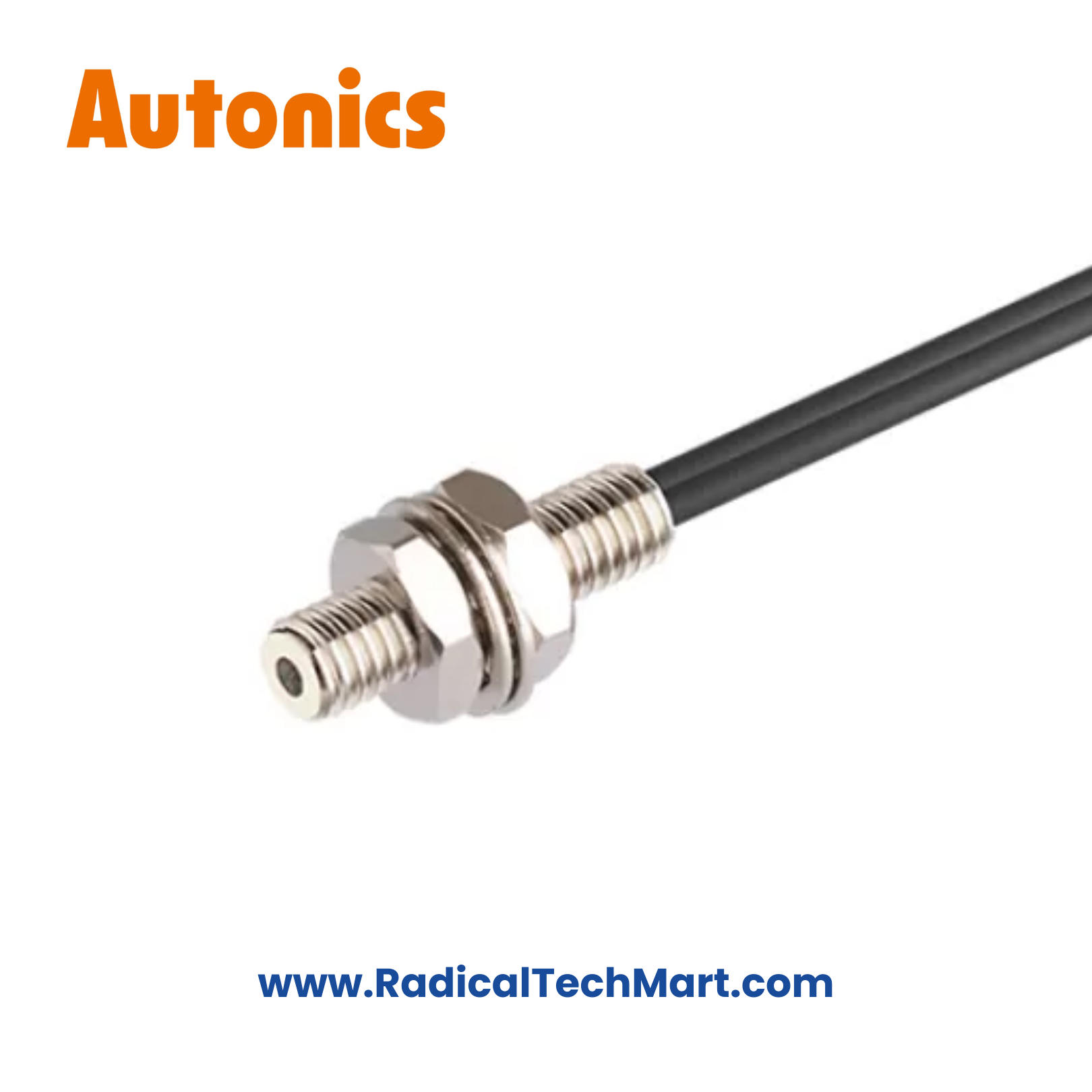

Autonics FD-320-05 Diffuse Reflective Fiber Optic Sensor Unit
Autonics FD-320-05 is a diffuse reflective fiber optic sensing unit with a 2 m FREE-CUT cable, designed for stable object detection in compact and harsh industrial environments when used with Autonics fiber amplifiers.
The Autonics FD-320-05 is a diffuse reflective type fiber optic sensing unit from the FD/GD Series, engineered for accurate object detection in tight spaces, high-vibration areas, and harsh industrial environments.
It features a 2 m FREE-CUT plastic fiber cable, allowing installers to cut the cable to the required length on-site using a compatible cable cutter. The sensor unit must be used in combination with an Autonics fiber optic amplifier such as BF3RX, BF4R, BF5R, etc.
Key Features
Diffuse reflective type fiber optic unit
2 m FREE-CUT plastic fiber cable
Minimum detectable object size: Ø 0.03 mm
Stable sensing with Autonics BF-series amplifiers
Compact threaded head design
Resistant to electrical noise and EMI
Suitable for confined and complex installations
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FD-320-05 |
| Fiber Type | Plastic fiber |
| Sensing Type | Diffuse reflective |
| Cable Length | 2 m (FREE CUT) |
| Minimum Bend Radius | R15 |
| Minimum Target Size | Ø 0.03 mm |
| Ambient Temperature | −40 to +70 °C |
| Compatible Amplifiers | BF3RX, BF4R, BF5R, BFX, BFN |
| Head Type | Threaded |
| Adapter | Included (where applicable) |
| Weight | Approx. 100 g |
Applications
Small component detection
Packaging and labeling machines
Electronics and PCB assembly
Conveyor object sensing
Semiconductor equipment
Automation lines with limited space
What’s in the Box?
Autonics FD-320-05 Fiber Optic Unit
Cable cutter (FREE CUT type)
Adapter (if applicable)
Instruction leaflet
FAQs
Q1. Does FD-320-05 work independently?
No. It must be used with a compatible Autonics fiber optic amplifier.
Q2. What does FREE CUT mean?
FREE CUT allows the fiber cable to be cut to the required length on-site using a suitable cutter.
Q3. What is the sensing type of this model?
It is a diffuse reflective fiber optic sensing unit.
Q4. Can this be used in high-temperature areas?
Standard FD-320-05 supports up to 70°C. For higher temperatures, heat-resistant models should be selected.
Q5. Which amplifiers are compatible?
Compatible with BF3RX, BF4R, BF5R, BFX, and BFN series amplifiers.
