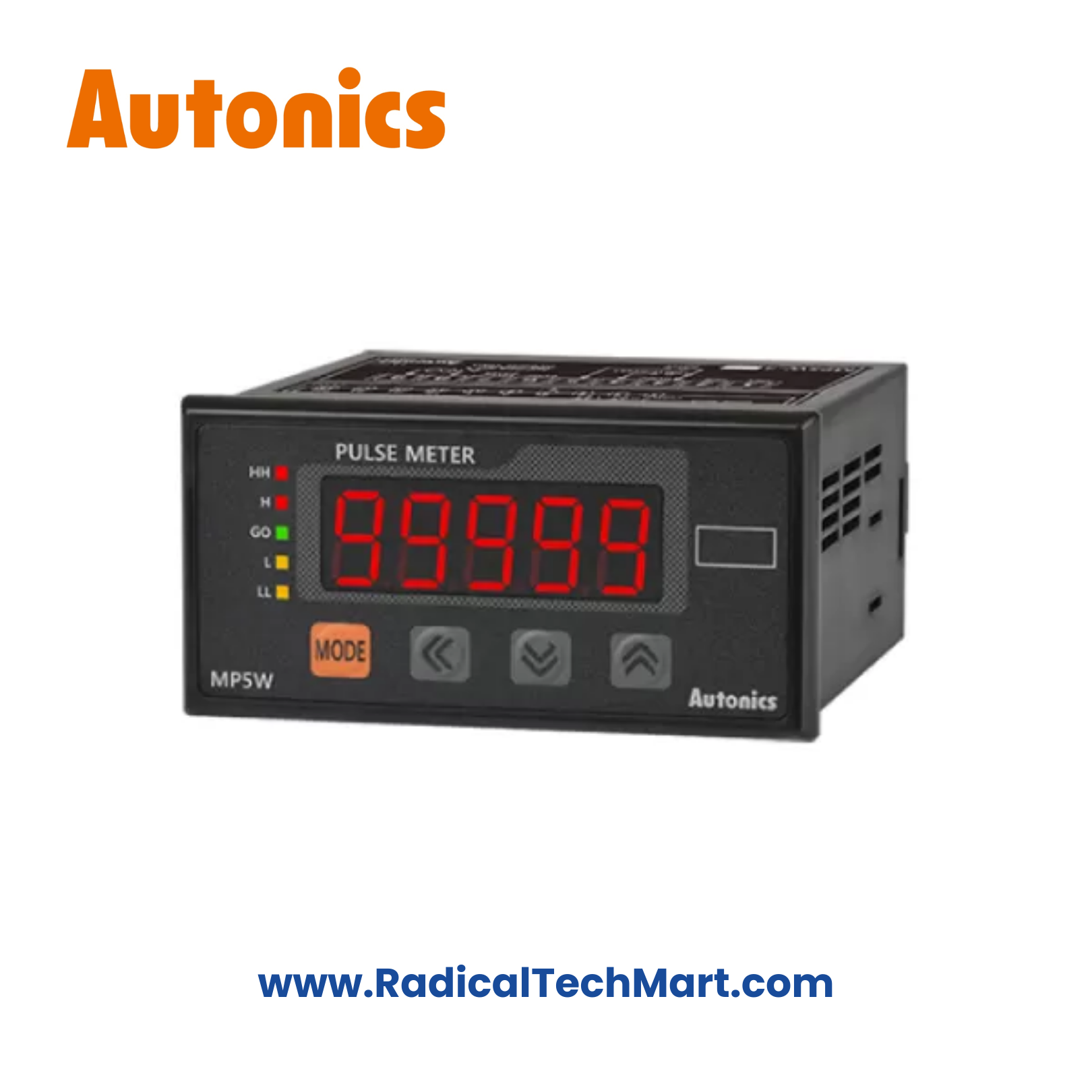

Autonics MP5W-48 Pulse Meter
Autonics MP5W-48 Multi-Function Pulse Meter (96×48 mm)
Advanced multi-function pulse meter for frequency, speed, length, ratio, and accumulation measurement.
Ideal for encoder, proximity, and flow sensor applications in industrial automation panels.
The Autonics MP5W-48 is a high-performance multi-pulse meter designed for precise measurement of frequency, speed, length, ratio, and accumulated counts. With 16 selectable operation modes, wide input compatibility, and optional communication/output models, it is ideal for demanding industrial automation and OEM panel applications.
Key Features
16 measurement modes including frequency, speed, cycle, ratio, and accumulation
High-speed pulse input up to 50 kHz
Large 96 × 48 mm panel-mount display
Supports encoder, proximity sensor, and flow sensor inputs
Optional relay, transistor, 4–20 mA, BCD, or RS485 (Modbus RTU) outputs
Prescale, hysteresis, delay monitoring, auto-zero functions
Non-volatile memory with data retention
IP54 front protection (panel mounted)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Series | MP5W |
| Display Size | 96 × 48 mm |
| Display Type | 7-segment LED |
| Display Range | −19999 to 99999 |
| Operation Modes | 16 modes |
| Pulse Input | Solid state / voltage / contact |
| Max Input Frequency | 50 kHz |
| Power Supply | 24–48 VDC or 100–240 VAC (model dependent) |
| Output Types | Relay / NPN / PNP / 4–20 mA / BCD / RS485 |
| Communication | RS485 (Modbus RTU – optional) |
| Accuracy | ±0.05% rdg |
| Mounting | Panel mount |
| Protection | IP54 (front) |
| Operating Temp | −10 to +50 °C |
Applications
Conveyor speed and length measurement
Encoder-based RPM and position monitoring
Flow meter pulse counting
Packaging and bottling machines
Textile and printing machinery
OEM automation control panels
Material handling systems
What’s in the Box?
Autonics MP5W-48 Pulse Meter
Panel mounting brackets (2 pcs)
Instruction manual
FAQ
Q1. Can this meter work with encoders?
Yes. It fully supports incremental encoder pulse inputs.
Q2. Does MP5W-48 support 4–20 mA output?
Yes, specific MP5W variants support 4–20 mA PV transmission output.
Q3. Is RS485 communication available?
Yes, MP5W models support RS485 Modbus RTU (variant dependent).
Q4. Can it measure conveyor speed and length?
Yes. Speed, length measurements 1 & 2, and accumulation modes are available.
Q5. Is this suitable for panel mounting?
Yes. It is designed for standard 96×48 mm panel cut-out mounting.
