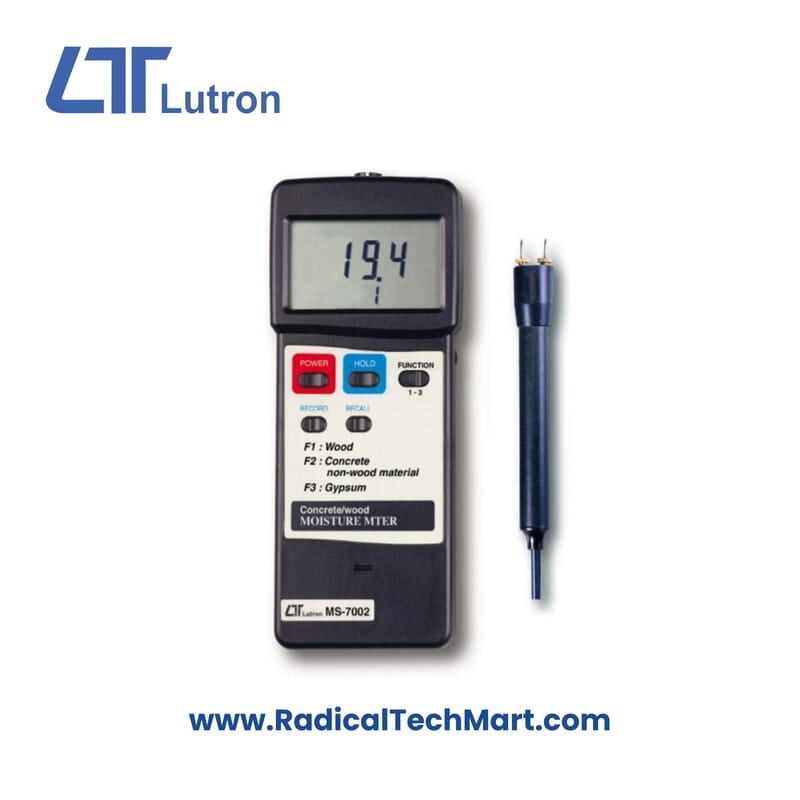

Lutron MS 7002 Concrete/Wood Moisture Meter

Lutron Moisture Meter Specifications

Manufacturer

• Brand: Lutron

Model/Type

• Model Name/Number: (Not specified)

Display

• Display Type: 13 mm (0.5") large LCD display
• Display Function: Digital reading

Measurement Range

• Moisture Range for Wood: 6% to 40%
• Moisture Range for Concrete/Non-Wood Materials: 0% to 100% relative moisture value
• Moisture Range for Gypsum: 0.2% to 50%

Accuracy & Resolution

• Resolution: 0.1%
• Accuracy: ± (5% + 5 d) at 23 ± 5°C

Circuit & Probe

• Circuit: Custom one-chip microprocessor LSI circuit
• Probe Type: Separate 2 pins moisture electrode

Functionality

• Data Hold: By push button on front panel
• Memory Recall: Records Maximum & Minimum reading values

Power Management

• Power Off: Auto shut off to save battery life, or manual off by push button
• Power Supply: Alkaline 006P, MN1604 (PP3) DC 9V battery
• Power Consumption: Approx. DC 6.5 mA

Operating Conditions

• Operating Temperature: 0 to 50°C
• Operating Humidity: Less than 80% RH

Sampling & Output

• Sampling Time: Approx. 0.8 seconds
• Data Output: RS 232 PC serial interface

Dimensions & Weight

• Main Instrument Dimensions: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inches)
• Weight: 330 g (0.73 lb)

Warranty

• Covered against manufacturing defects
