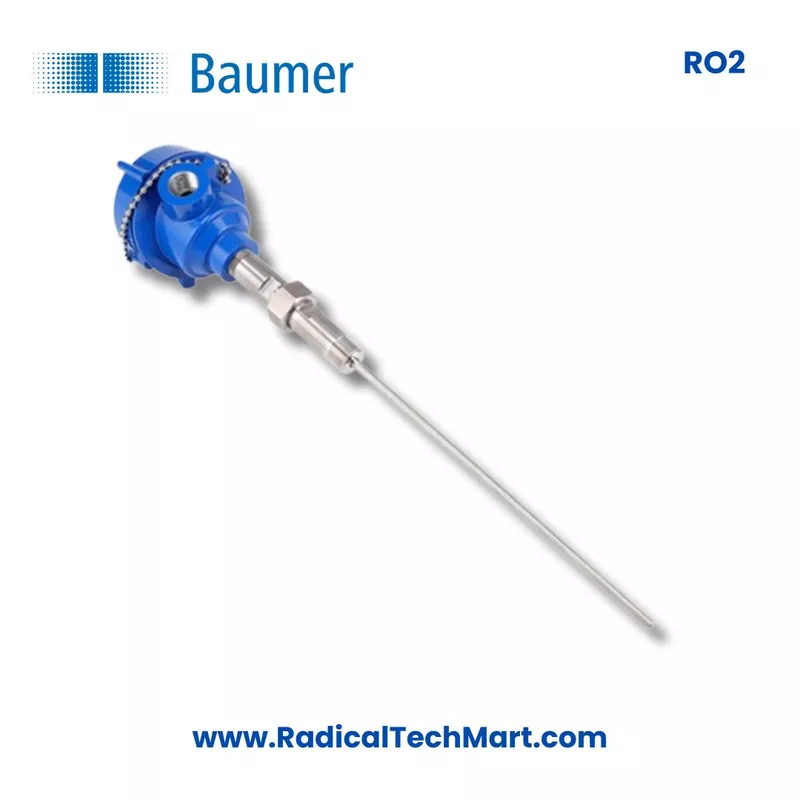

Baumer R02 RTD Sensor
Baumer R02 RTD sensor assembly is an industrial temperature sensor designed for reliable temperature measurement from -200 to 600 degree C. It is available in simplex and duplex element types, with Pt100, Pt500 and Pt1000 options, AISI 316 SS sheath, multiple sheath diameters, IP65, IP67 and IP68 protection, flameproof, explosion proof and ATEX certified housing options.
Customize
Share :
A. Product Overview
The Baumer R02 RTD Sensor Assembly is a resistance temperature detector used for accurate and stable temperature measurement in industrial process applications. It is suitable for a wide temperature range from -200 to 600 degree C, making it useful for both low temperature and high temperature processes.
The sensor is available with simplex and duplex element types and supports Pt100, Pt500 and Pt1000 sensing elements. These element options allow the sensor to be selected according to the required accuracy, signal compatibility and control system input.
The R02 RTD sensor comes with an AISI 316 SS sheath, which provides good corrosion resistance and durability in industrial environments. Sheath diameter options include 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm and 12 mm, allowing the sensor to be used in compact installations, thermowells and heavy duty temperature measurement points.
The enclosure or housing is available in die cast aluminum, AISI 304 SS and AISI 316 SS. Protection options include IP65, IP67 and IP68, along with flameproof IIA and IIB, explosion proof IIC and ATEX approved versions. The sensor can be supplied with ATEX and IECEx Exd and Exe certification, with optional flange arrangement.
Process connection options are available from 1/4 inch to 3/4 inch BSP male and NPT male, along with nipple union nipple connection. The sensor follows IEC 751 and DIN 43760 reference standards, making it suitable for industrial temperature measurement requirements.
B. Working Principle
The Baumer R02 RTD sensor works on the principle of resistance temperature detection. The sensing element inside the probe changes its electrical resistance as the temperature changes.
In a Pt100, Pt500 or Pt1000 RTD element, platinum is used as the sensing material because it gives a stable and repeatable resistance change with temperature. When the process temperature increases, the resistance of the RTD element also increases. This resistance value is then measured by a temperature indicator, controller, transmitter, PLC or automation system and converted into a temperature reading.
The AISI 316 SS sheath protects the sensing element from mechanical damage and process conditions. The sensor can be installed directly into the process or through a thermowell depending on the application. Simplex elements are generally used for single measurement points, while duplex elements are useful where dual signal output, redundancy or separate indication and control is required.
C. Why It Is Used
The Baumer R02 RTD sensor is used where accurate, repeatable and dependable temperature measurement is required in industrial processes. It is preferred because it provides stable temperature readings over a wide operating range and can be configured according to process requirements.
It is used to monitor process temperature, protect equipment from overheating, support temperature control loops and maintain product quality. In industries where safety and certification are important, flameproof, explosion proof, ATEX and IECEx certified versions help the sensor operate safely in hazardous areas.
The multiple sheath diameters, housing materials and connection options make it suitable for different installation types. AISI 316 SS sheath construction allows use in demanding industrial conditions where corrosion resistance and mechanical strength are required.
D. Suitable Buyers
The Baumer R02 RTD sensor is suitable for buyers who need reliable industrial temperature measurement in process plants, machinery and hazardous areas.
Suitable buyers include:
Industrial automation companies
Instrumentation engineers
Process plant maintenance teams
OEM machine manufacturers
Panel builders and system integrators
Chemical and petrochemical plants
Pharmaceutical plants
Food and beverage processing units
Oil and gas industries
Power plants and boiler applications
Water treatment and utility plants
HVAC and refrigeration system manufacturers
Engineering procurement contractors
Industrial product resellers and distributors
FAQ
1. What is the Baumer R02 RTD sensor used for?
The Baumer R02 RTD sensor is used for industrial temperature measurement in process lines, tanks, vessels, machines, utilities and hazardous area applications.
2. What is the temperature range of the Baumer R02 RTD sensor?
The Baumer R02 RTD sensor can measure temperature from -200 to 600 degree C.
3. Which sensing elements are available in the R02 RTD sensor?
The sensor is available with Pt100, Pt500 and Pt1000 sensing element options.
4. What is the difference between simplex and duplex RTD?
A simplex RTD has one sensing element, while a duplex RTD has two sensing elements in the same assembly. Duplex RTDs are used when two outputs are required or where redundancy is needed.
5. What sheath material is used in the Baumer R02 RTD sensor?
The Baumer R02 RTD sensor uses AISI 316 SS sheath material, which provides strength and corrosion resistance.
6. What sheath diameters are available?
Available sheath diameter options are 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm and 12 mm.
7. What housing materials are available?
Housing material options include die cast aluminum, AISI 304 SS and AISI 316 SS.
8. Is the Baumer R02 RTD suitable for hazardous areas?
Yes, the Baumer R02 RTD is available with flameproof IIA and IIB, explosion proof IIC, ATEX approved, IECEx Exd and Exe certified options.
9. What are the available protection classes?
The sensor is available with IP65, IP67 and IP68 protection class options.
10. What process connections are available?
Process connections are available from 1/4 inch to 3/4 inch BSP male and NPT male, along with nipple union nipple connection.
11. Which standards does the Baumer R02 RTD follow?
The sensor follows IEC 751 and DIN 43760 reference standards.
12. Can the Baumer R02 RTD sensor be used with a thermowell?
Yes, the R02 RTD sensor can be used with a thermowell depending on the process requirement and installation design.
13. Which industries commonly use the Baumer R02 RTD sensor?
It is commonly used in chemical, petrochemical, pharmaceutical, food and beverage, oil and gas, power, water treatment, HVAC and industrial automation applications.
14. Why should I choose AISI 316 SS sheath for RTD sensors?
AISI 316 SS provides good corrosion resistance, mechanical strength and durability, making it suitable for demanding industrial environments.
15. Is the Baumer R02 RTD available with flange mounting?
Yes, the sensor is available with optional flange arrangement depending on the application requirement.
