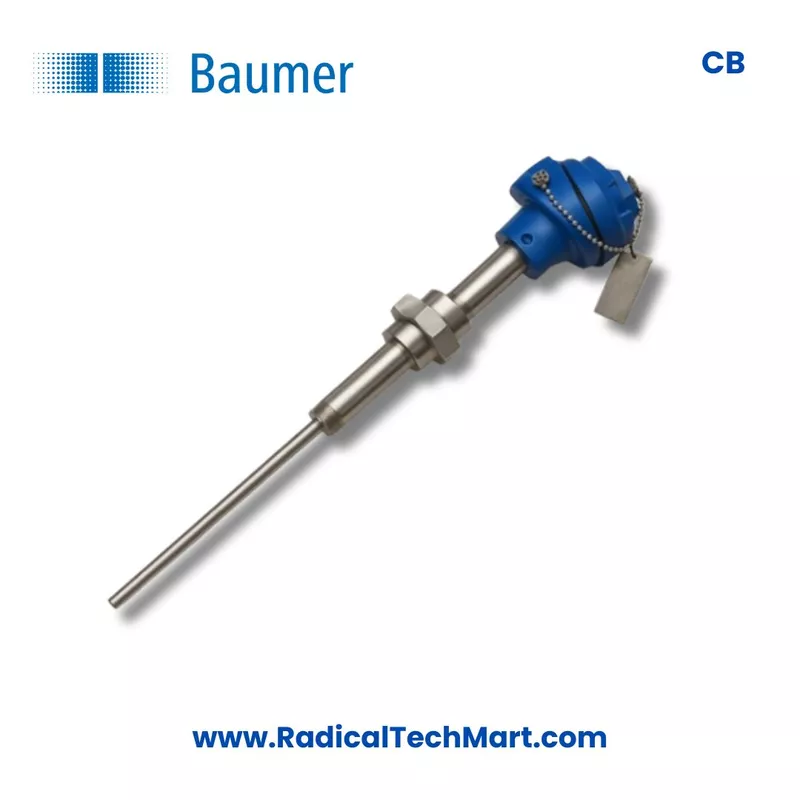

Baumer T01 Thermocouple Sensor

A. Product Overview

The Baumer T01 thermocouple sensor assembly is designed for accurate and reliable temperature measurement in industrial processes. It is available with thermocouple element options such as J, K, T, E, R, S, B and N, making it suitable for different temperature measurement requirements across process industries.

The sensor is available in simplex and duplex element type, allowing users to select single or dual sensing configurations based on their control and monitoring needs. The sheath material options include AISI 316 SS, AISI 310 SS and Inconel 600, which makes the sensor suitable for general industrial, high temperature and corrosive environments.

Baumer T01 thermocouple sensor assembly is available with sheath diameter options of 1 mm, 1.5 mm, 3 mm, 4.5 mm, 6 mm, 8 mm, 10 mm and 12 mm. The enclosure material options include die cast aluminum, AISI 304 SS and AISI 316 SS. Protection class options include IP65, IP67 and IP68, along with flame proof IIA and IIB and explosion proof IIC construction.

The process connection is available from 1/4 inch to 3/4 inch BSP and NPT male, along with nipple union nipple connection. The product follows IEC 584.2 and ANSI MC 96.1 reference standards. ATEX and IECEx Exd and Exe certification is available only with NUN connection.

B. Working Principle

A thermocouple sensor works on the principle of the Seebeck effect. When two different metal conductors are joined at one end and exposed to temperature, a small voltage is generated. This voltage changes according to the temperature at the sensing point.

In the Baumer T01 thermocouple sensor assembly, the selected thermocouple element such as J, K, T, E, R, S, B or N is placed inside a protective sheath. The sheath protects the sensing element from mechanical damage, process media and harsh industrial conditions. When the probe tip comes in contact with the process temperature, the thermocouple generates a millivolt signal. This signal can be read by temperature indicators, controllers, transmitters, recorders or automation systems.

The simplex type provides one sensing element, while the duplex type provides two sensing elements in one assembly. Duplex construction is useful when two separate instruments need to read the same process temperature or when redundancy is required.

C. Why It Is Used

The Baumer T01 thermocouple sensor assembly is used for industrial temperature measurement where durability, accuracy and process compatibility are important. It is suitable for applications where the sensor must withstand high temperature, vibration, pressure, corrosive environments or hazardous area conditions.

It is used because it offers multiple element choices, different sheath materials, several sheath diameters and various process connection options. The availability of AISI 316 SS, AISI 310 SS and Inconel 600 sheath materials helps users select the correct construction based on the process media and temperature requirement.

Its IP65, IP67 and IP68 protection options make it suitable for dusty, wet and outdoor environments. Flame proof and explosion proof options make it suitable for hazardous industrial locations. The NUN connection option with ATEX and IECEx certification is useful for industries requiring certified temperature sensors for safety critical applications.

D. Suitable Buyers

The Baumer T01 thermocouple sensor assembly is suitable for buyers who require reliable industrial temperature measurement sensors for process and machine applications.

Suitable buyers include:

1. Process industries requiring thermocouple sensors for temperature monitoring
2. Chemical and petrochemical plants requiring flame proof and explosion proof thermocouples
3. Pharmaceutical and food processing plants requiring stainless steel temperature sensors
4. OEM machine manufacturers using thermocouples in heating and control systems
5. Boiler, furnace and oven manufacturers requiring high temperature sensors
6. Power plants and utility companies requiring industrial temperature measurement
7. System integrators and panel builders using thermocouples with controllers and transmitters
8. Maintenance and instrumentation teams replacing existing thermocouple assemblies
9. Automation companies working with PLC, PID controller and SCADA based systems
10. Industrial buyers looking for Baumer thermocouple sensor assemblies with BSP, NPT and NUN connection options

FAQ

1. What is the Baumer T01 thermocouple sensor assembly used for?
The Baumer T01 thermocouple sensor assembly is used for industrial temperature measurement in machines, process lines, tanks, furnaces, boilers, heating systems and hazardous area applications.

2. Which thermocouple elements are available in Baumer T01?
Baumer T01 is available with J, K, T, E, R, S, B and N thermocouple element options.

3. Is Baumer T01 available in simplex and duplex type?
Yes, the Baumer T01 thermocouple sensor assembly is available in simplex and duplex element construction.

4. What sheath materials are available in Baumer T01 thermocouple?
The available sheath material options are AISI 316 SS, AISI 310 SS and Inconel 600.

5. What sheath diameters are available for Baumer T01?
Baumer T01 is available with sheath diameter options of 1 mm, 1.5 mm, 3 mm, 4.5 mm, 6 mm, 8 mm, 10 mm and 12 mm.

6. What enclosure materials are available for Baumer T01 thermocouple sensor?
The enclosure material options include die cast aluminum, AISI 304 SS and AISI 316 SS.

7. Is Baumer T01 suitable for outdoor and wet environments?
Yes, Baumer T01 is available with IP65, IP67 and IP68 protection class options, making it suitable for dusty, wet and outdoor industrial environments.

8. Is flame proof and explosion proof construction available in Baumer T01?
Yes, Baumer T01 is available with flame proof IIA and IIB and explosion proof IIC construction options.

9. What process connection options are available in Baumer T01?
Baumer T01 supports process connections from 1/4 inch to 3/4 inch BSP and NPT male, along with nipple union nipple connection.

10. Is ATEX and IECEx certification available for Baumer T01?
Yes, ATEX and IECEx Exd and Exe certification is available, but only with NUN connection.

11. Which standards does Baumer T01 follow?
Baumer T01 follows IEC 584.2 and ANSI MC 96.1 reference standards.

12. Who should buy Baumer T01 thermocouple sensor assembly?
Baumer T01 is suitable for process plants, machine manufacturers, OEMs, system integrators, panel builders, maintenance teams and instrumentation engineers requiring industrial thermocouple sensors.
