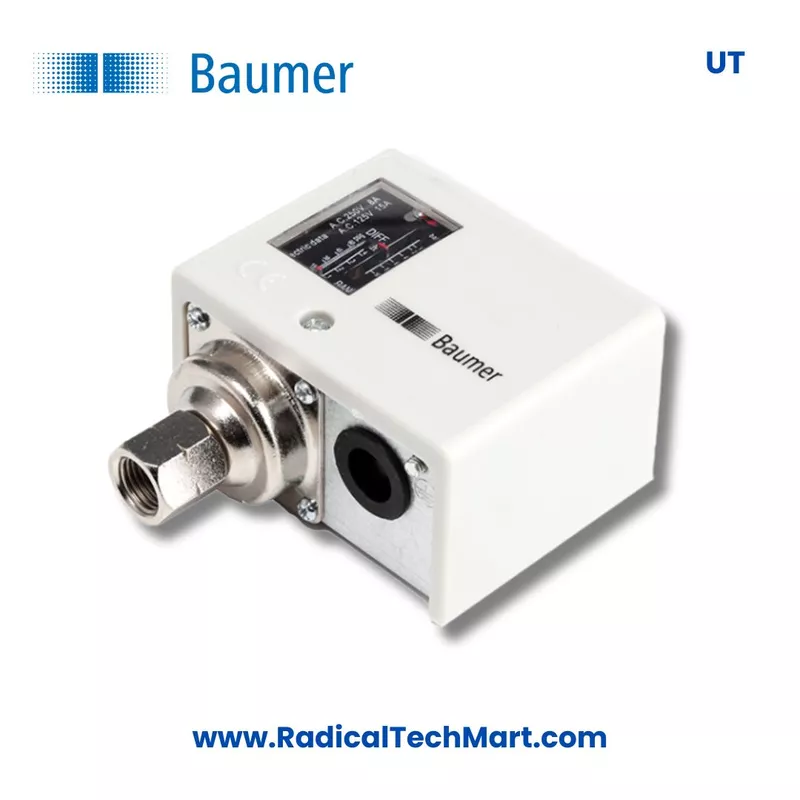

Baumer UT Bellows Pressure Switch

A. Product Overview

The Baumer UT Bellows Pressure Switch is a mechanical pressure switch used for monitoring and controlling pressure in industrial systems. It is suitable for pressure ranges from 0 to 30 bar and offers 2.0 percent FSR repeatability, making it a reliable choice for general utility pressure applications.

This pressure switch uses a phosphor bronze bellows sensing element that responds to pressure changes and activates a 1 microswitch SPDT contact. The switch rating is 15 A at 220 VAC and 10 A at 24 VDC, allowing it to be used with alarms, pumps, compressors, control panels and automation circuits.

The Baumer UT pressure switch comes with a 1/4 inch BSP or NPT process connection, steel plated body and plastic cover. With IP32 protection, it is suitable for protected industrial environments where basic dust and drip resistance is required.

B. Working Principle

The Baumer UT Bellows Pressure Switch works on a mechanical bellows movement principle. When pressure enters through the process connection, it acts on the phosphor bronze bellows inside the switch. As the pressure increases or decreases, the bellows expands or contracts.

This movement is transferred to the internal switching mechanism. When the pressure reaches the set point, the SPDT microswitch changes its contact position. This contact change can be used to start or stop equipment, trigger an alarm, cut off a circuit or send a signal to a control panel.

When the pressure returns below or above the reset point, the microswitch comes back to its original position. This makes the Baumer UT pressure switch useful for automatic pressure control and safety interlocking.

C. Why It Is Used

The Baumer UT Bellows Pressure Switch is used to provide dependable pressure-based switching in industrial equipment and process systems. It helps protect machines and systems from low pressure, high pressure or abnormal pressure conditions.

It is commonly used because it is compact, simple to install and suitable for direct switching applications. The SPDT output allows the user to connect the switch for either normally open or normally closed operation depending on the control requirement.

This pressure switch is useful in applications where a mechanical pressure control device is preferred over an electronic transmitter. It does not require complex programming and can be used in basic automation, pump control, compressor control and equipment protection systems.

D. Suitable Buyers

The Baumer UT Bellows Pressure Switch is suitable for:

Industrial automation suppliers looking for compact pressure control devices
Panel builders requiring SPDT pressure switches for control panels
Pump manufacturers and pump maintenance teams
Compressor manufacturers and service providers
Boiler and utility system operators
Water treatment plant contractors
HVAC and mechanical system contractors
OEM machine manufacturers
Maintenance engineers in factories and process plants
Dealers and distributors of Baumer pressure instruments
Purchase teams looking for Baumer UT pressure switch suppliers in India

FAQ

1. What is the Baumer UT Bellows Pressure Switch used for?
The Baumer UT Bellows Pressure Switch is used to monitor pressure and switch an electrical circuit when the pressure reaches a set value. It is commonly used in pumps, compressors, boilers, control panels and industrial utility systems.

2. What is the pressure range of the Baumer UT pressure switch?
The Baumer UT pressure switch is available for pressure ranges up to 0 to 30 bar, depending on the selected model and application requirement.

3. What type of sensing element is used in this pressure switch?
The Baumer UT Bellows Pressure Switch uses a phosphor bronze bellows sensing element for pressure detection and mechanical switching.

4. What is the switch output of the Baumer UT pressure switch?
It has 1 microswitch SPDT output. SPDT means single pole double throw, which allows the switch to be used in normally open or normally closed control circuits.

5. What is the switch rating of the Baumer UT pressure switch?
The switch rating is 15 A at 220 VAC and 10 A at 24 VDC, making it suitable for many industrial control applications.

6. What process connection is available in the Baumer UT pressure switch?
The Baumer UT pressure switch is available with 1/4 inch BSP or NPT process connection.

7. What is the protection class of this pressure switch?
The Baumer UT Bellows Pressure Switch has IP32 protection class, suitable for protected indoor or panel-mounted industrial environments.

8. Is the Baumer UT pressure switch suitable for pump control?
Yes, it can be used for pump control applications where pressure-based switching is required for start, stop or safety protection.

9. Is this pressure switch suitable for compressor applications?
Yes, the Baumer UT pressure switch can be used in compressor systems to monitor pressure and activate switching at a defined set point.

10. Why choose a bellows type pressure switch?
A bellows type pressure switch is simple, reliable and suitable for mechanical pressure switching. It is useful where direct pressure control is needed without complex electronic programming.
