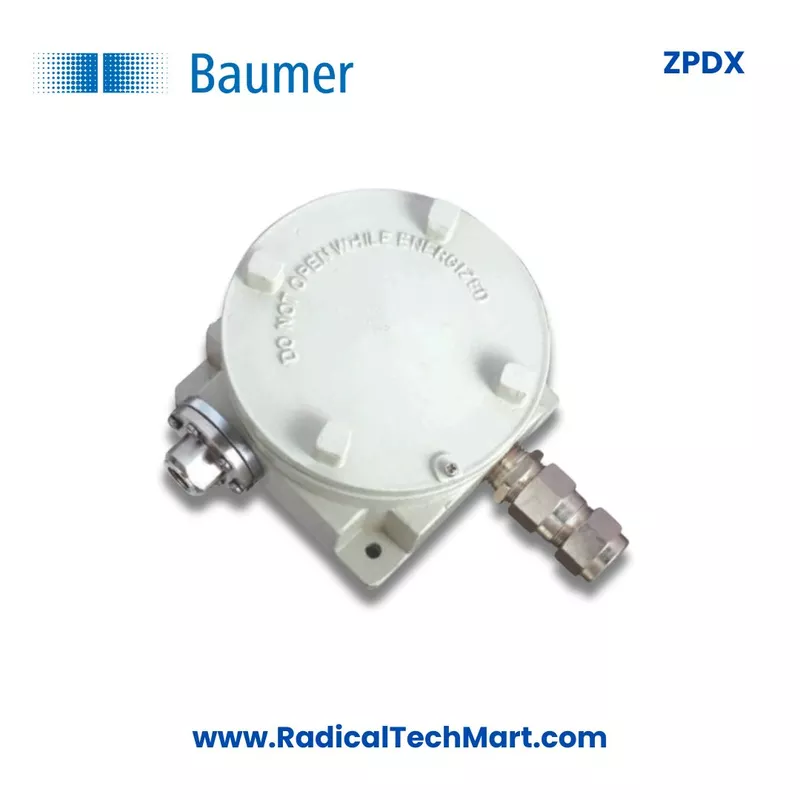

Baumer ZPDX Weatherproof / Explosion Proof Pressure Switch
Baumer ZPDX is a weatherproof and explosion proof diaphragm pressure switch designed for reliable pressure monitoring and switching in industrial and hazardous area applications. It offers a pressure range from -1 to 0 bar and 0 to 40 bar, 0.5 percent FSR repeatability, AISI 316L SS sensing element, die cast aluminium housing and protection up to IP65 with explosion proof certification.
Customize
Share :
A. Product Overview
The Baumer ZPDX weatherproof and explosion proof diaphragm pressure switch is used for accurate pressure detection and control in demanding industrial environments. It is suitable for applications where pressure needs to be monitored and an electrical switching signal is required for safety, alarm, pump control, compressor control or process automation.
This model comes with a diaphragm type sensing mechanism, making it suitable for low pressure and process pressure applications. The pressure range covers -1 to 0 bar and 0 to 40 bar. It provides 0.5 percent FSR repeatability, which helps maintain consistent switching performance.
The ZPDX supports 1 or 2 SPDT microswitches and has a switch rating of 15 A at 250 VAC and 0.2 A at 220 VDC. The sensing element is made from AISI 316L SS, while the housing and body are made from die cast aluminium. It is available with 3/8 inch and 1/2 inch BSP or NPT process connections.
The enclosure is weatherproof to IP65 and explosion proof with Class 1, Div. 2, Gas Groups B, C and D, ExII2G, Eex d IIC T6 protection. Accessories such as snubber, chemical seal and cable gland are also available.
B. Working Principle
The Baumer ZPDX works on a diaphragm pressure sensing principle. When process pressure is applied through the process connection, it acts on the diaphragm sensing element. The movement of the diaphragm is transferred to a mechanical switching mechanism inside the pressure switch.
Once the pressure reaches the set point, the microswitch changes its contact position. This switching action can be used to start or stop equipment, trigger alarms, send signals to a control panel or protect a system from unsafe pressure conditions.
The SPDT microswitch allows both normally open and normally closed contact operation, depending on the wiring requirement. The 1 or 2 microswitch option gives flexibility for single switching or dual switching applications.
C. Why It Is Used
The Baumer ZPDX pressure switch is used where accurate, durable and safe pressure switching is required in harsh or hazardous environments. Its explosion proof design makes it suitable for areas where flammable gases or explosive atmospheres may be present.
It is used to monitor system pressure, protect equipment from overpressure or vacuum conditions, automate pump and compressor operation, activate alarms and provide safety interlocking in industrial process systems.
Its AISI 316L SS sensing element provides good compatibility with many industrial fluids and gases. The IP65 weatherproof housing helps protect the instrument from dust, water spray and outdoor industrial conditions.
D. Suitable Buyers
The Baumer ZPDX weatherproof and explosion proof diaphragm pressure switch is suitable for:
Industrial automation companies
Process control system integrators
Panel builders and electrical contractors
Chemical and petrochemical plants
Oil and gas industries
Boiler and furnace manufacturers
Pump and compressor manufacturers
Power plants and utility companies
Pharmaceutical and food processing plants
Water treatment and wastewater plants
Marine and offshore applications
OEM machine manufacturers
Instrumentation dealers and resellers
Maintenance, repair and operations teams
Purchase managers looking for Baumer pressure switches
FAQ
1. What is the Baumer ZPDX pressure switch?
Baumer ZPDX is a diaphragm type weatherproof and explosion proof pressure switch used for pressure monitoring, alarm control and equipment protection in industrial applications.
2. What is the pressure range of Baumer ZPDX?
The Baumer ZPDX pressure switch is available in pressure ranges from -1 to 0 bar and 0 to 40 bar.
3. Is Baumer ZPDX suitable for hazardous areas?
Yes. Baumer ZPDX is available with explosion proof protection for hazardous area applications. It supports Class 1, Div. 2, Gas Groups B, C and D, ExII2G and Eex d IIC T6 protection.
4. What is the repeatability of Baumer ZPDX?
The repeatability of Baumer ZPDX is 0.5 percent FSR, which helps provide reliable and consistent switching performance.
5. What type of switch is used in Baumer ZPDX?
Baumer ZPDX uses 1 or 2 SPDT microswitches, depending on the required switching configuration.
6. What is the switch rating of Baumer ZPDX?
The switch rating is 15 A at 250 VAC and 0.2 A at 220 VDC.
7. What is the sensing element material?
The sensing element material is AISI 316L stainless steel, making it suitable for many industrial process media.
8. What process connections are available?
The Baumer ZPDX pressure switch is available with 3/8 inch and 1/2 inch BSP or NPT process connections.
9. What is the housing material of Baumer ZPDX?
The housing and body material is die cast aluminium, which provides mechanical strength and durability in industrial environments.
10. What accessories are available with Baumer ZPDX?
Available accessories include snubber, chemical seal and cable gland.
11. Where is Baumer ZPDX commonly used?
It is commonly used in chemical plants, petrochemical industries, oil and gas applications, boilers, furnaces, compressors, pumps, power plants, pharmaceutical plants, food processing units and hazardous process areas.
12. Why choose Baumer ZPDX over a standard pressure switch?
Baumer ZPDX is preferred when the application requires weatherproof protection, explosion proof safety, stainless steel wetted parts, high repeatability and reliable switching in demanding industrial environments.
