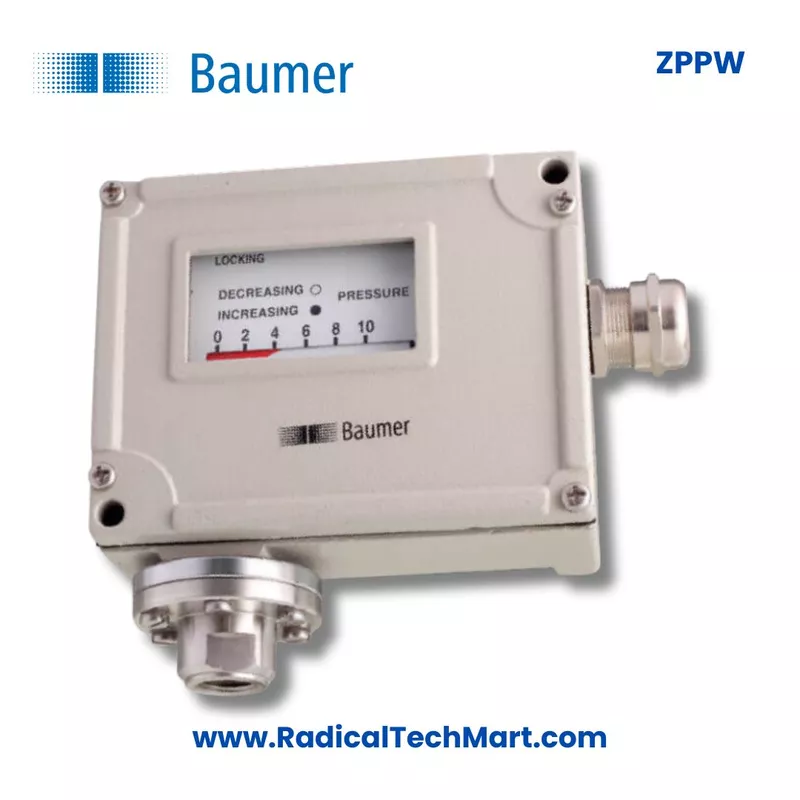

Baumer ZPPW Piston Pressure Switch
Baumer ZPPW piston pressure switch is a high pressure industrial pressure switch designed for reliable pressure monitoring and control applications. It offers a 5 to 600 bar pressure range, 1.0 percent FSR repeatability, 1 or 2 SPDT microswitches, AISI 316L SS sensing element, die cast aluminum housing and IP66 protection.
Customize
Share :
A. Product Overview
The Baumer ZPPW piston pressure switch is a robust industrial pressure switch designed for high pressure monitoring, control and safety applications. It uses a piston type sensing mechanism to detect pressure changes and operate an electrical switching contact when the set pressure point is reached.
This model is suitable for pressure ranges from 5 to 600 bar, making it useful for hydraulic systems, compressors, pumps, process equipment and high pressure industrial lines. With 1.0 percent FSR repeatability, the Baumer ZPPW provides reliable and consistent switching performance in repeated operating cycles.
The pressure switch is available with 1 or 2 microswitches SPDT, allowing single point or dual point pressure switching. It has a switch rating of 15 A at 250 VAC and 0.2 A at 220 VDC, making it suitable for control panels, alarm circuits and equipment interlocking. The unit is built with an AISI 316L stainless steel sensing element, die cast aluminum housing and IP66 protection class for demanding industrial environments.
The Baumer ZPPW supports 3/8 inch and 1/2 inch BSP and NPT process connections and can be supplied with accessories such as snubber, chemical seal and cable gland.
B. Working Principle
The Baumer ZPPW piston pressure switch works on a mechanical piston sensing principle. Process pressure enters through the pressure connection and acts on the internal piston assembly. As pressure increases, the piston moves against a calibrated spring mechanism.
When the process pressure reaches the adjusted set point, the piston movement actuates the internal SPDT microswitch. The microswitch changes its contact position and sends an electrical signal to a control circuit, alarm system, motor starter, pump panel or safety interlock system.
When the pressure falls below the reset point, the piston returns to its original position and the microswitch changes back. This mechanical operation allows the switch to provide dependable pressure based control without requiring electronic pressure output.
The availability of 1 or 2 SPDT microswitches makes the Baumer ZPPW suitable for applications where one pressure limit or two pressure limits need to be monitored.
C. Why It Is Used
The Baumer ZPPW piston pressure switch is used to monitor and control high pressure conditions in industrial systems. It helps protect equipment, improve process safety and automate pressure based operations.
It is commonly used for:
High pressure hydraulic system monitoring
Pump start and stop control
Compressor pressure control
Pressure alarm and trip applications
Industrial safety interlock systems
Process line pressure monitoring
Power plant and utility pressure control
Refinery and petrochemical pressure applications
Machine tool and hydraulic press protection
Control panel and automation applications
The piston design makes it suitable for higher pressure ranges compared to low pressure diaphragm type switches. Its IP66 protection, die cast aluminum body and stainless steel sensing element make it suitable for harsh plant environments where reliability and repeatability are important.
D. Suitable Buyers
The Baumer ZPPW piston pressure switch is suitable for buyers who need a high pressure mechanical switch for industrial pressure control, protection and automation.
Suitable buyers include:
Industrial maintenance teams
Instrumentation engineers
Automation engineers
Hydraulic system manufacturers
Pump and compressor OEMs
Control panel builders
Machine manufacturers
System integrators
Power plant operators
Refinery and petrochemical plants
Chemical process plants
Steel and heavy engineering industries
Industrial product resellers and distributors
Purchase teams looking for Baumer pressure switches
This product is ideal for buyers searching for a Baumer piston pressure switch, high pressure pressure switch, SPDT pressure switch, IP66 pressure switch, hydraulic pressure switch or industrial pressure control switch.
FAQ
1. What is the Baumer ZPPW piston pressure switch used for?
The Baumer ZPPW piston pressure switch is used for high pressure monitoring, pressure control, alarm switching, pump control, compressor control and safety interlocking in industrial systems.
2. What is the pressure range of the Baumer ZPPW pressure switch?
The Baumer ZPPW pressure switch has a pressure range of 5 to 600 bar.
3. What is the repeatability of the Baumer ZPPW pressure switch?
The repeatability of the Baumer ZPPW pressure switch is 1.0 percent FSR, which helps provide consistent switching performance.
4. What type of switch contact is available in Baumer ZPPW?
The Baumer ZPPW is available with 1 or 2 SPDT microswitches, making it suitable for single point or dual point pressure switching.
5. What is the switch rating of Baumer ZPPW?
The switch rating is 15 A at 250 VAC and 0.2 A at 220 VDC.
6. What is the sensing element material used in Baumer ZPPW?
The sensing element material is AISI 316L stainless steel, with optional AISI 316L SS configuration depending on the requirement.
7. What process connections are available in Baumer ZPPW?
The Baumer ZPPW supports 3/8 inch and 1/2 inch BSP and NPT process connections.
8. What is the housing material of Baumer ZPPW pressure switch?
The housing or body material is die cast aluminum, which provides a strong and durable enclosure for industrial applications.
9. What is the protection class of Baumer ZPPW?
The Baumer ZPPW has IP66 protection class, making it suitable for industrial environments with dust and water exposure.
10. What accessories are available with Baumer ZPPW?
Accessories available for Baumer ZPPW include snubber, chemical seal and cable gland, depending on the installation and process requirement.
11. Where is a piston pressure switch preferred over a diaphragm pressure switch?
A piston pressure switch is generally preferred for higher pressure applications such as hydraulic systems, compressors and high pressure process lines.
12. Is Baumer ZPPW suitable for hydraulic applications?
Yes, Baumer ZPPW is suitable for hydraulic pressure monitoring and control applications because of its piston sensing design and high pressure range.
