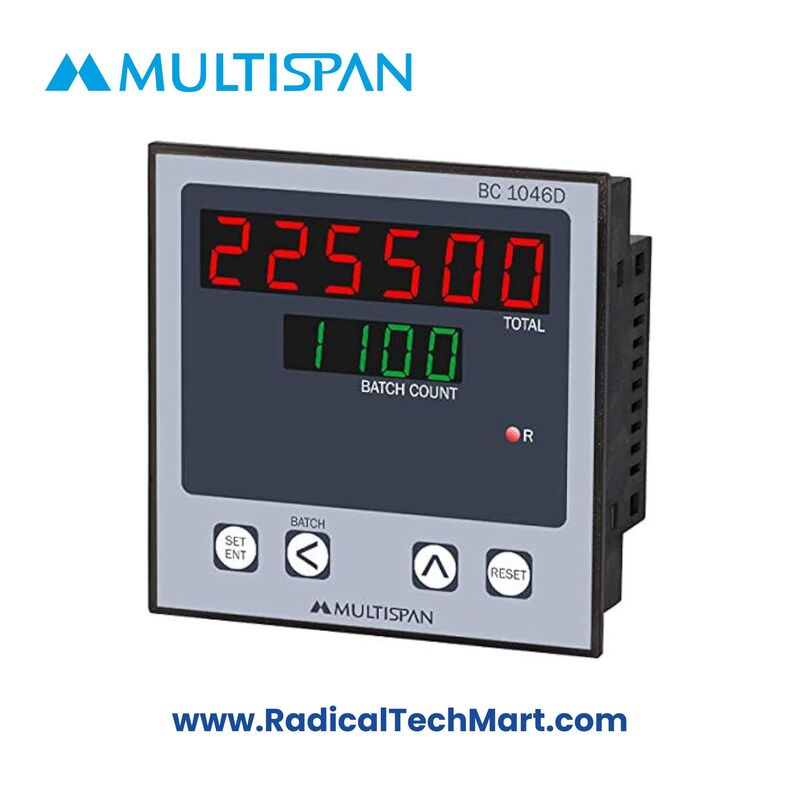

BC-1046D / BC-2046 / BC-445 Multispan

Product Summary:
The BC-1046D, BC-2046, and BC-445 from Multispan are programmable batch counters designed to automate process counting tasks with high precision. Featuring 6-digit and 5-digit LED displays, programmable relay outputs, timer control, buzzer alerts, and memory retention, these models provide robust performance in industrial environments.

Key Features:

• Available in 96x96 mm, 72x72 mm, and 48x48 mm panel sizes

• 6-digit upper red LED display and 4-digit lower green LED display

• Relay output: 1 Relay, 1C/O, 230V AC, 5A with Buzzer

• Proximity sensor & micro switch compatible (PNP/NPN selectable)

• Memory retention in power failure conditions

• Power Supply: 100–270V AC, 50/60 Hz

• IP-65 front panel protection

• Speed settings: SLOW (500 RPM), MEDIUM (5000 RPM), FAST (15000 RPM)

Applications:

• Batch counting in packaging machines

• Component counting in assembly lines

• Pulse-based event monitoring

• Filling and bottling systems

• Textile and printing industries

Product Benefits:

• Easy-to-use programming with speed selection

• Clear LED display for quick visual reference

• Built-in relay & buzzer for process automation

• Wide voltage compatibility

• Compact size and panel cutout flexibility

FAQs:

Q1: What type of sensors are compatible with these batch counters?
A1: They are compatible with both PNP and NPN proximity sensors, as well as micro switches.

Q2: Will the unit retain my set values after a power failure?
A2: Yes, all models are equipped with non-volatile memory that retains settings even after power loss.

Q3: What is the purpose of the two-count setting in CH-2 mode?
A3: CH-2 mode allows for advanced batch control: Count-1 triggers the relay/buzzer, and Count-2 resets the batch and stops the alert, providing automated batch cycles.
