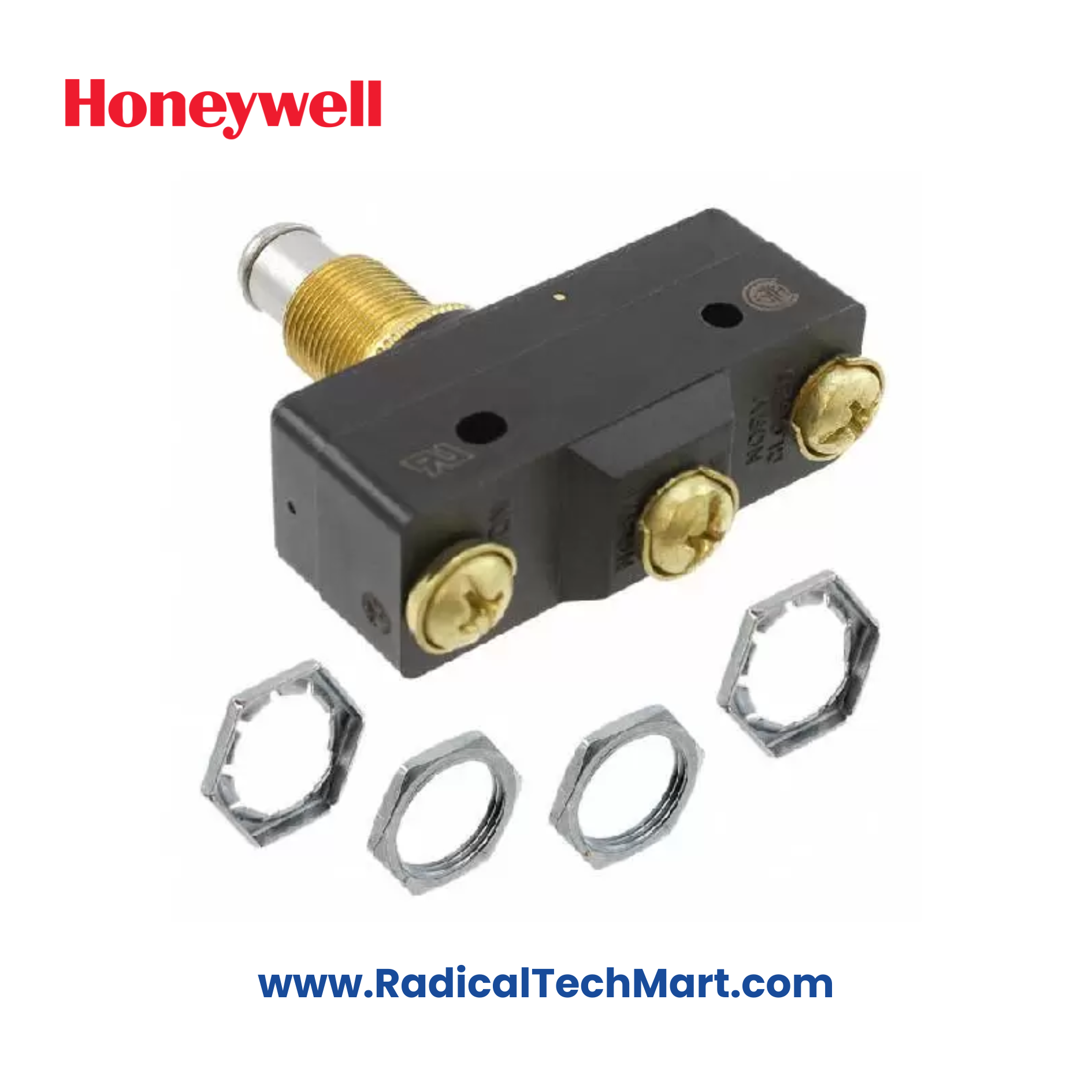

BE Series Honeywell Micro Switch
₹2,136.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | BE-2RQ1-A4 |
| Type | Micro Switch |
| Operating force | 1.0 oz to 28 oz |
| Termination | quick connect, solder, screw |
| Actuator | pin plunger, overtravel plunger, straight, roller, flexible leaf roller, flexible leaf |
| Voltage | 125 Vac, 250 Vac, 125 Vdc, 250 Vdc |
| Agency approvals | UL, CSA, ENEC, CE (varies by specific model) |
| Operating temperature | -55 °C to 85 °C [-67 °F to 185 °F] |
| Contacts | silver, silver cadmium oxide, gold alloy |
| Housing | general purpose phenolic |
| Sealing | Environment sealing option available (options for IP64 Sealing) |
| Contact resistance | 15 m Ohm max.(initial) |
