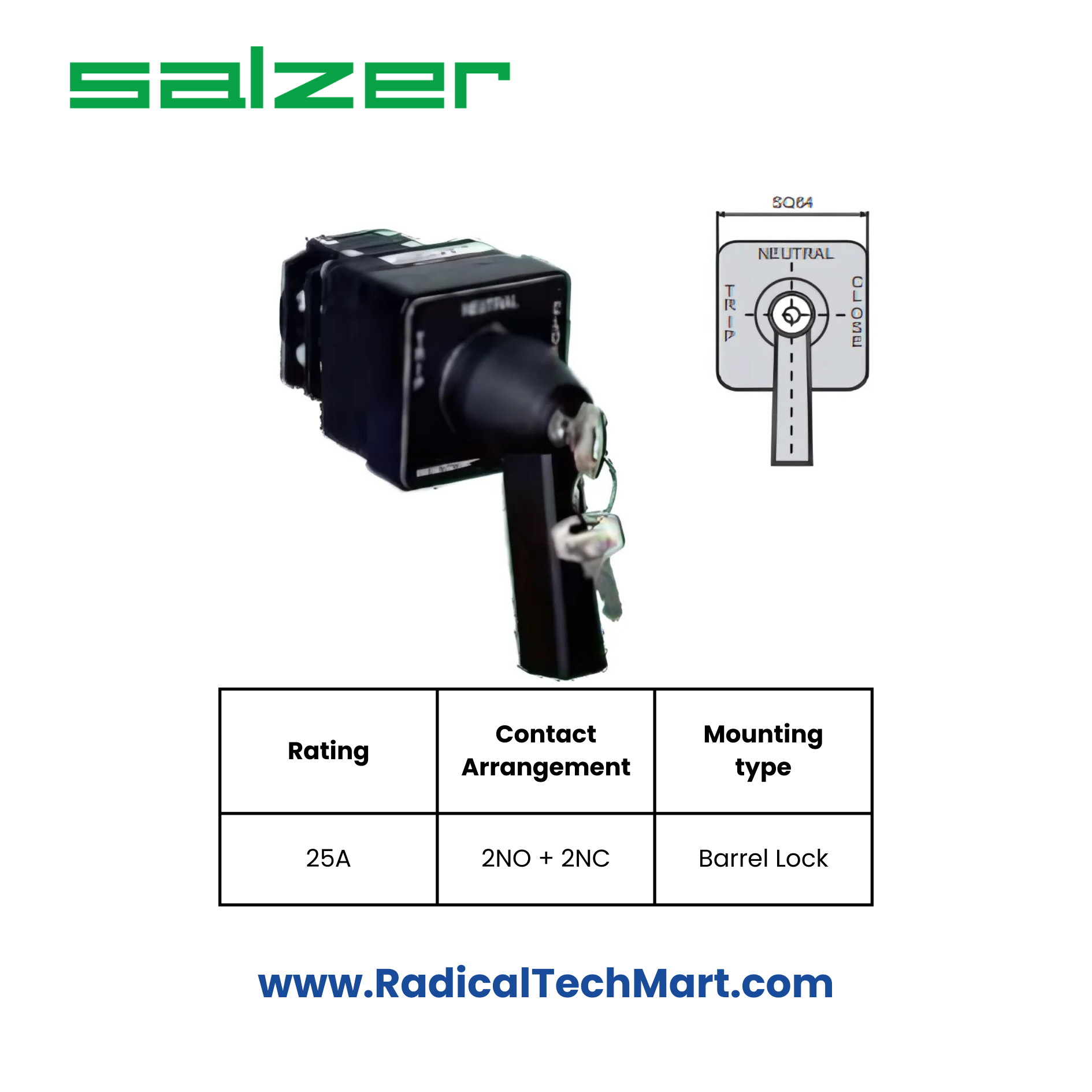

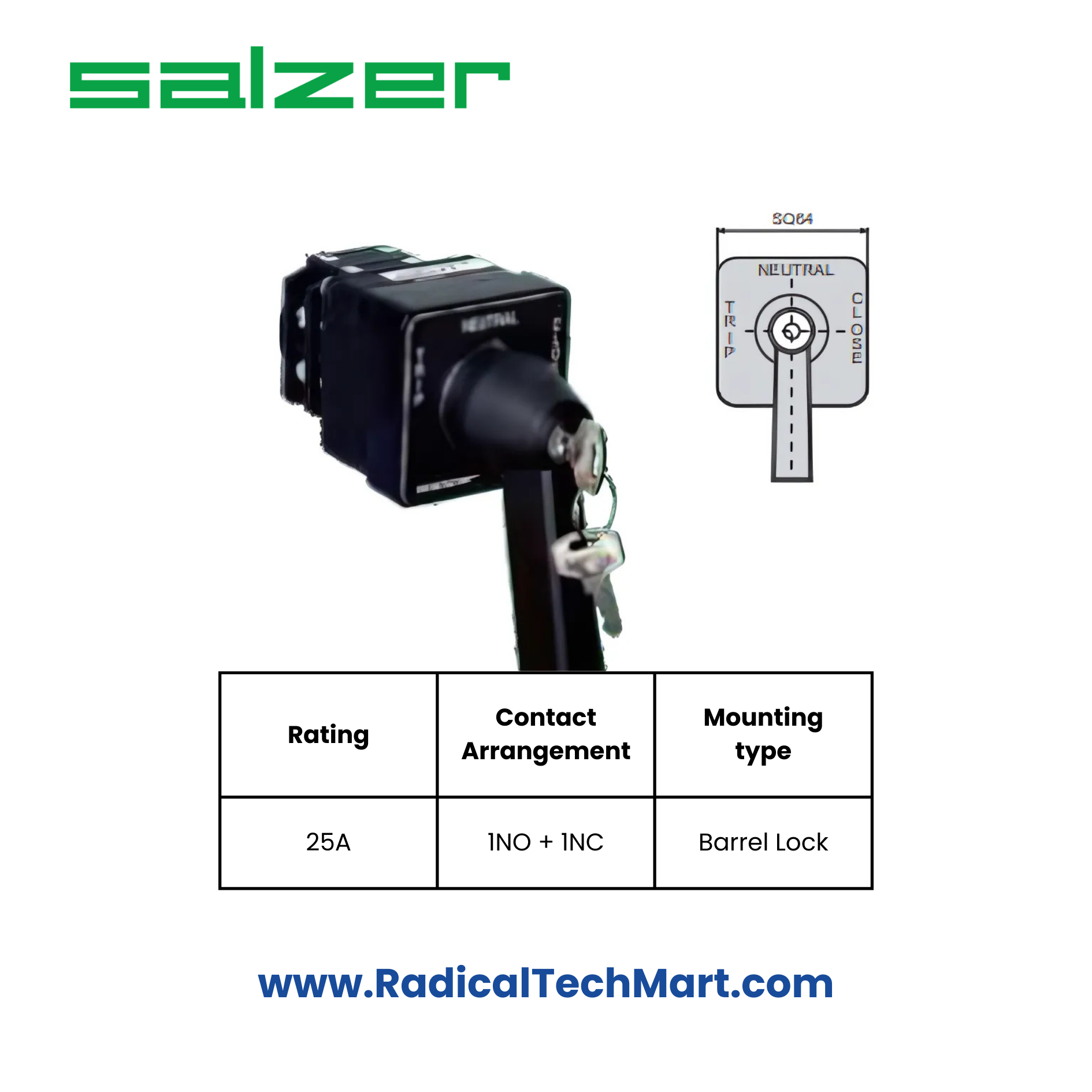

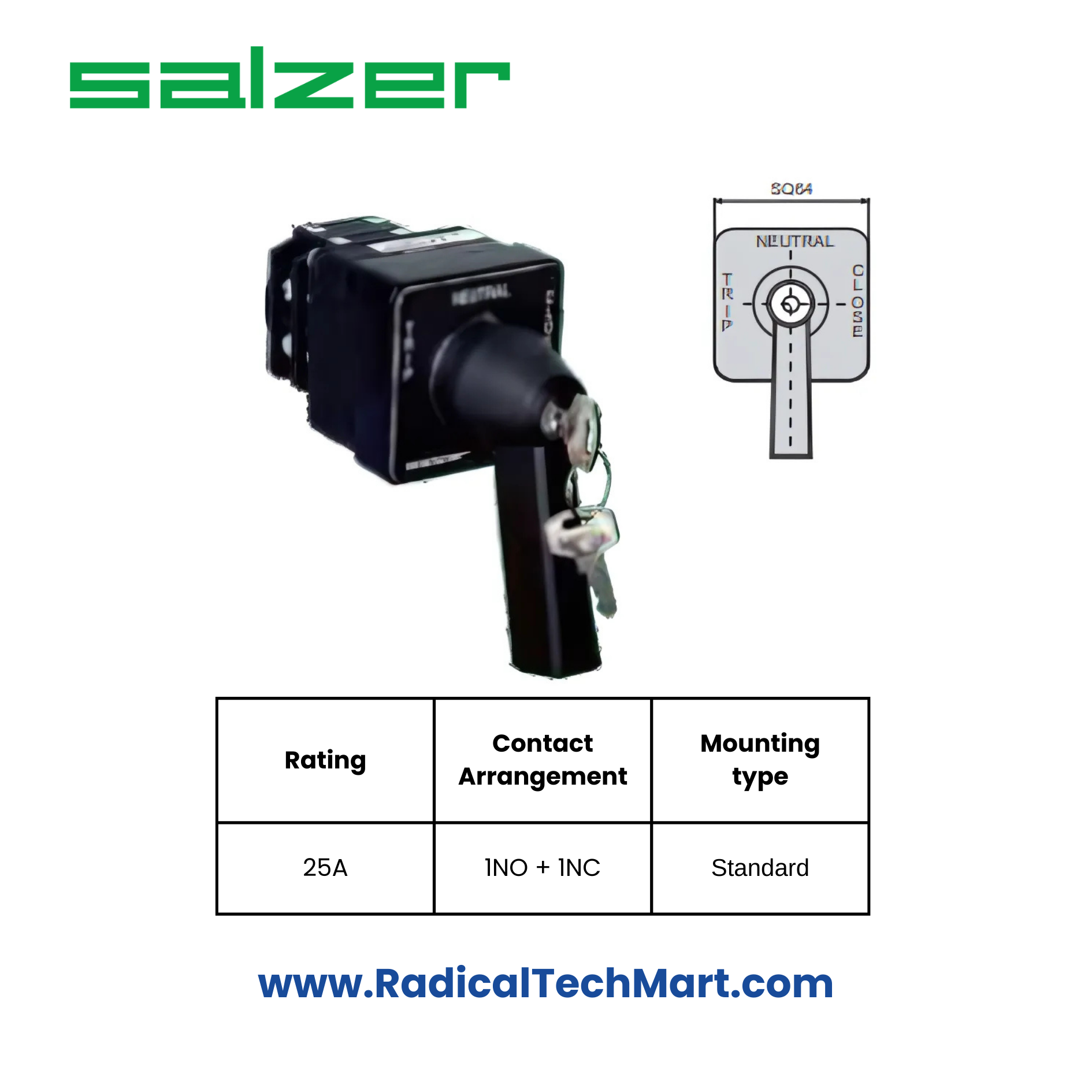

Breaker Control Switches (Trip - Neutral - Close)
₹1,270.00 - ₹2,175.00
Product Details
- Function: Breaker Control Switch – Trip, Neutral, Close (T-N-C) configuration
- Switch Type: Rotary switch
- Positions: 3-position switch – Trip, Neutral (OFF), Close
- Pole Configuration: Typically Single Pole or as per control circuit requirement
- Operation: Manual rotary switching with positive detents
- Mounting: Panel mount with front plate and knob
- Contact Rating: Typically 10A at 415V AC (check model-specific data)
- Build Material: Flame-retardant thermoplastic housing; durable metal components
- Knob Type: Standard Salzer ergonomic knob with clear position markings
- Mechanical Life: >1 million operations
- Electrical Life: High endurance under industrial conditions
- Temperature Range: -20°C to +70°C
- Protection Class: IP40 (standard); higher ratings available on request
- Compliance: Conforms to IEC 60947-5-1 and IS standards
- Application: Used in breaker panels, control desks, generator systems, and electrical substations for circuit breaker control
