A. Product Overview

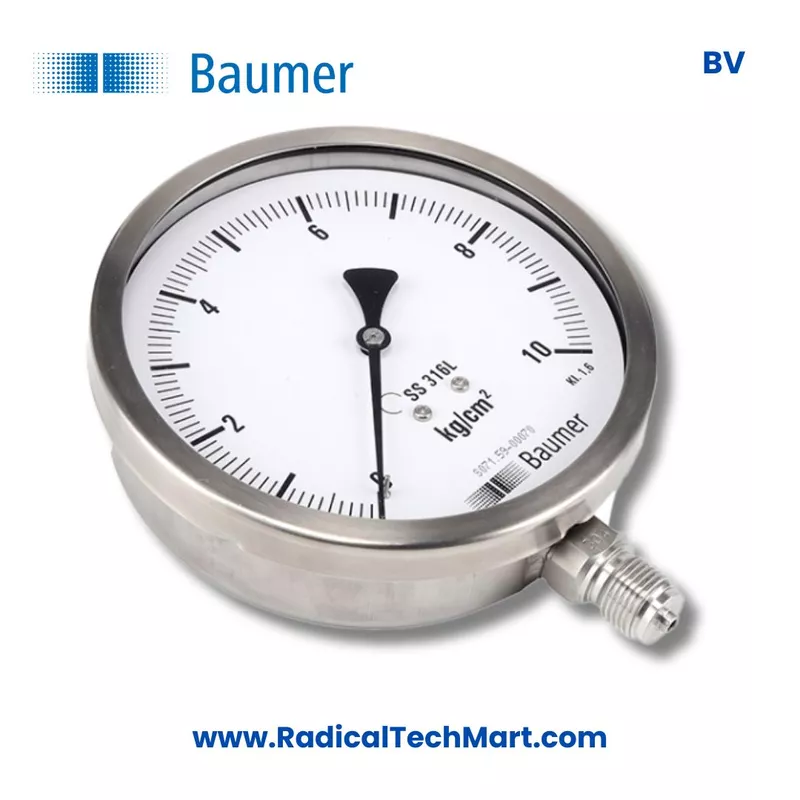

The Baumer BV series is a stainless steel Bourdon type pressure gauge developed for general industrial pressure monitoring where durability, accuracy and cost effective performance are required. It is designed with a stainless steel case and measuring system, welded socket and case construction, and IP65 protection for better resistance against dust and water ingress.

The BV series is available in 100 mm and 150 mm nominal sizes. It uses an AISI 304 stainless steel bayonet type case and ring, AISI 316L stainless steel Bourdon tube, AISI 304 stainless steel socket and AISI 304 stainless steel movement. The gauge offers an accuracy of ±1.6 percent of full scale and can be used with process temperatures up to 200 degree C.

This pressure gauge is suitable for clean air, non corrosive gases and non corrosive liquid media that do not block the pressure system. It is commonly selected for process equipment, pneumatic systems, hydraulic lines, utility lines, compressors and general machinery pressure indication.

B. Working Principle

The Baumer BV series works on the Bourdon tube principle. Inside the gauge, pressure enters through the process connection and reaches the curved Bourdon tube. When pressure increases, the Bourdon tube tends to straighten slightly. This movement is transferred through a mechanical movement system to the pointer on the dial.

As the pressure changes, the pointer moves across the scale and shows the pressure reading in kg/cm² and psi. When pressure is reduced, the Bourdon tube returns toward its original shape and the pointer moves back accordingly. This simple mechanical working principle makes the BV series suitable for direct pressure indication without external power supply.

C. Why It Is Used

The Baumer BV series pressure gauge is used to monitor and display pressure in industrial systems where continuous visual pressure indication is needed. It helps operators check whether pressure is within the safe and required operating range.

It is used because it offers stainless steel construction, IP65 protection, ±1.6 percent full scale accuracy and a wide selection of pressure ranges. The welded socket and case construction improves reliability, while the AISI 316L stainless steel Bourdon tube provides compatibility with clean air and non corrosive gas or liquid media.

This gauge is useful for preventing over pressure conditions, identifying pressure drops, supporting equipment safety and improving process monitoring in daily industrial operations.

D. Suitable Buyers

The Baumer BV series pressure gauge is suitable for buyers who need a reliable stainless steel analog pressure gauge for industrial and utility applications.

Suitable buyers include:

• Industrial maintenance teams
• OEM machine manufacturers
• Process industry users
• Hydraulic system suppliers
• Pneumatic system suppliers
• Compressor manufacturers and service providers
• Panel builders and system integrators
• Factory utility departments
• Instrumentation traders and resellers
• Purchase teams looking for Baumer pressure gauges

FAQ

1. What is the Baumer BV series pressure gauge?

The Baumer BV series is an ECO economic stainless steel Bourdon type pressure gauge used for pressure measurement in clean air, non corrosive gases and non corrosive liquid media.

2. What nominal sizes are available in the Baumer BV series?

The Baumer BV series is available in 100 mm and 150 mm nominal sizes.

3. What is the accuracy of the Baumer BV pressure gauge?

The Baumer BV series has an accuracy of ±1.6 percent of full scale.

4. What is the maximum process temperature for the Baumer BV series?

The Baumer BV pressure gauge can handle process temperatures up to 200 degree C.

5. What is the protection class of the Baumer BV series?

The Baumer BV series comes with IP65 protection.

6. What materials are used in the Baumer BV pressure gauge?

The gauge has an AISI 304 stainless steel case and ring, AISI 316L stainless steel Bourdon tube, AISI 304 stainless steel socket and AISI 304 stainless steel movement.

7. What media is suitable for the Baumer BV pressure gauge?

It is suitable for clean air, non corrosive gases and non corrosive liquid media that do not obstruct the pressure system.

8. What connection options are available?

The Baumer BV series is available with 3/8 inch BSP male, 1/2 inch BSP male and 1/2 inch NPT male gauge connection options.

9. What mounting type is available in the Baumer BV series?

The standard mounting type is direct bottom entry.

10. What pressure ranges are available?

The Baumer BV series is available in pressure ranges such as 0 to 4, 0 to 7, 0 to 10, 0 to 16, 0 to 21, 0 to 28, 0 to 35, 0 to 42 and 0 to 70 kg/cm² with psi dual scale.

11. Is the Baumer BV pressure gauge suitable for corrosive media?

No. The BV series is mainly suitable for clean air, non corrosive gases and non corrosive liquid media. For corrosive media, a compatible diaphragm seal or suitable material selection should be considered.

12. Where is the Baumer BV pressure gauge commonly used?

It is commonly used in industrial machinery, compressors, utility lines, pneumatic systems, hydraulic systems, process equipment and general pressure monitoring applications.
