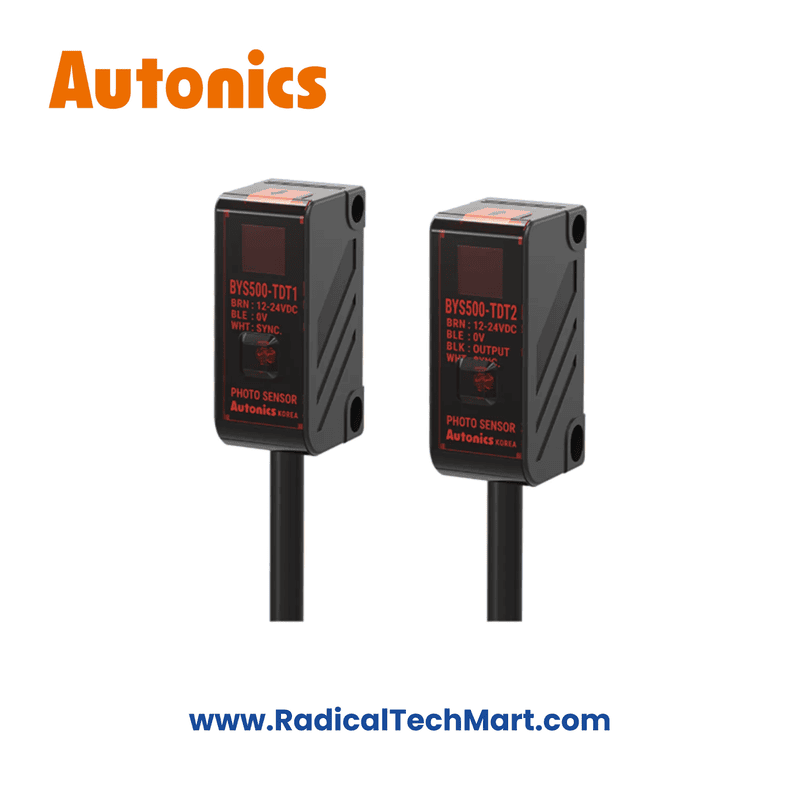

BYS500-TDT1,2 Autonics Photoelectric Sensor
₹1,500.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | BYS500-TDT1,2 |
| Sensing type | Through-beam type(side sensing type) |
| Sensing distance | Opaque material of min. Ø5mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC |
| Current consumption | Emitter/Receiver: Max. 30mA |
| Operation mode | Dark ON |
| Control output | NPN open collector |
| Connection type | Cable type(Ø4, 2m) |
| Protection structure | IP50 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories | Fixing bracket, Bolts, Nuts |
| Weight | Approx. 150g |
