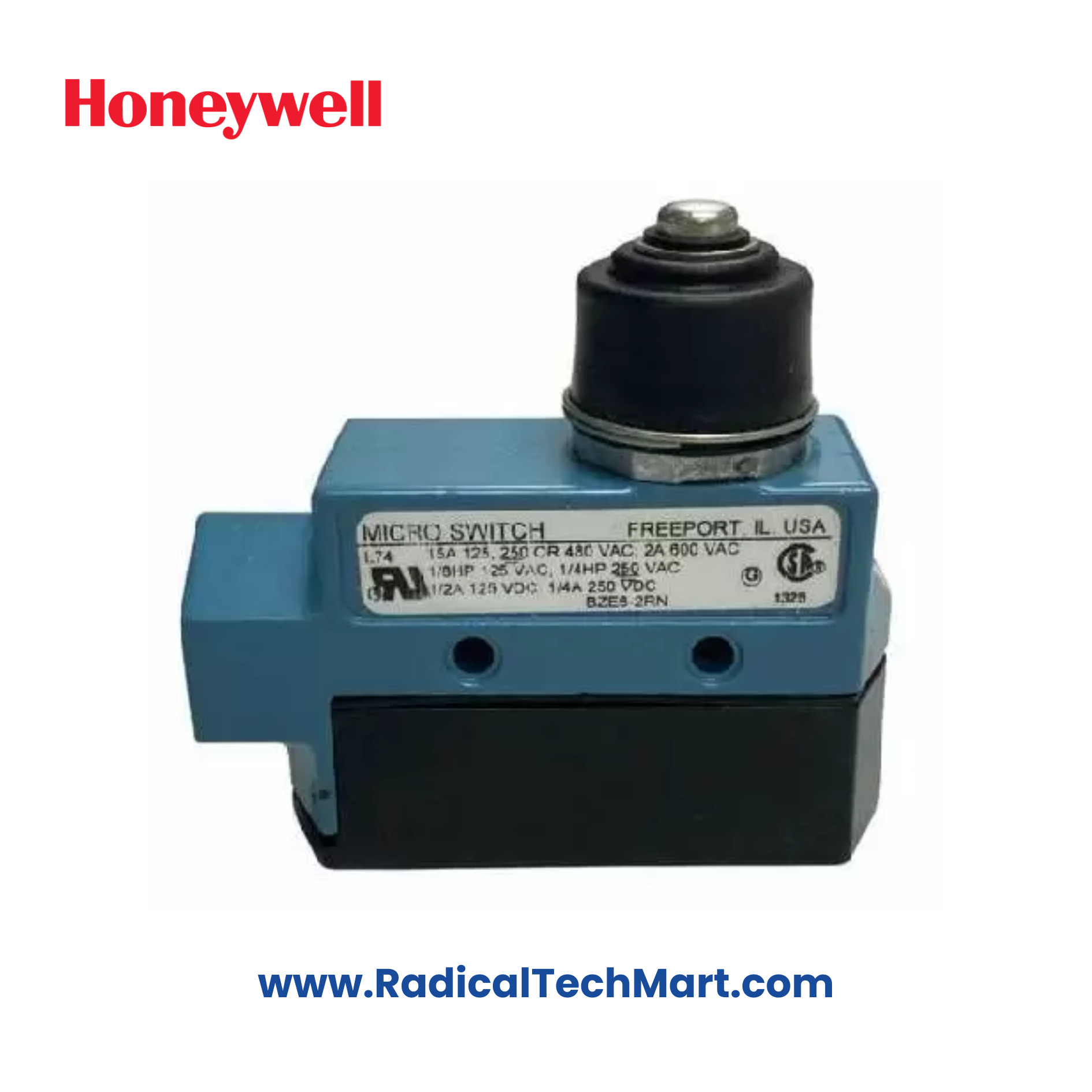

BZE6-2RN-S Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| BRAND | Honeywell |
| MODEL NO. | BZE6-2RN-S |
| Actuators | top pin plunger (with and without boot seal) top roller plunger, parallel with long axis of switch (with and without boot seal) cross roller plunger, perpendicular with long axis of switch (with and without boot seal) manually operated (with boot seal) roller arm, adjustable (with and without boot seal) one-way roller lever (with boot seal) low-force rod lever (with and without boot seal) wobble (with boot seal) manual reset switches: top pin plunger, top roller plunger, adjustable roller arm, wobble |
| Housing material | electrostatic epoxy coated zinc die-cast |
| Sealing | actuator with boot seal: NEMA 1, 3, 4, IP66 actuator without seal boot: NEMA 1, IP40 |
| Switching options | SPDT (snap-action contacts, 1NO/1NC) SPDT-DB (double break snap-action contacts, 1NO/1NC) DPDT (snap-action contacts, 2NO/2NC) |
| Mechanical endurance | up to five million cycles for BZx6 and BMx6 switches; up to two million cycles for DTx6 switches |
| Electrical endurance | up to 50K cycles at full rated load |
| Operating temperature | -32 °C to 71 °C [-25 °F to 160 °F] (standard) -40 °C to 71 °C [-40 °F to 160 °F] (optional low temperature) |
| Agency approvals | UL, CSA, CE |
