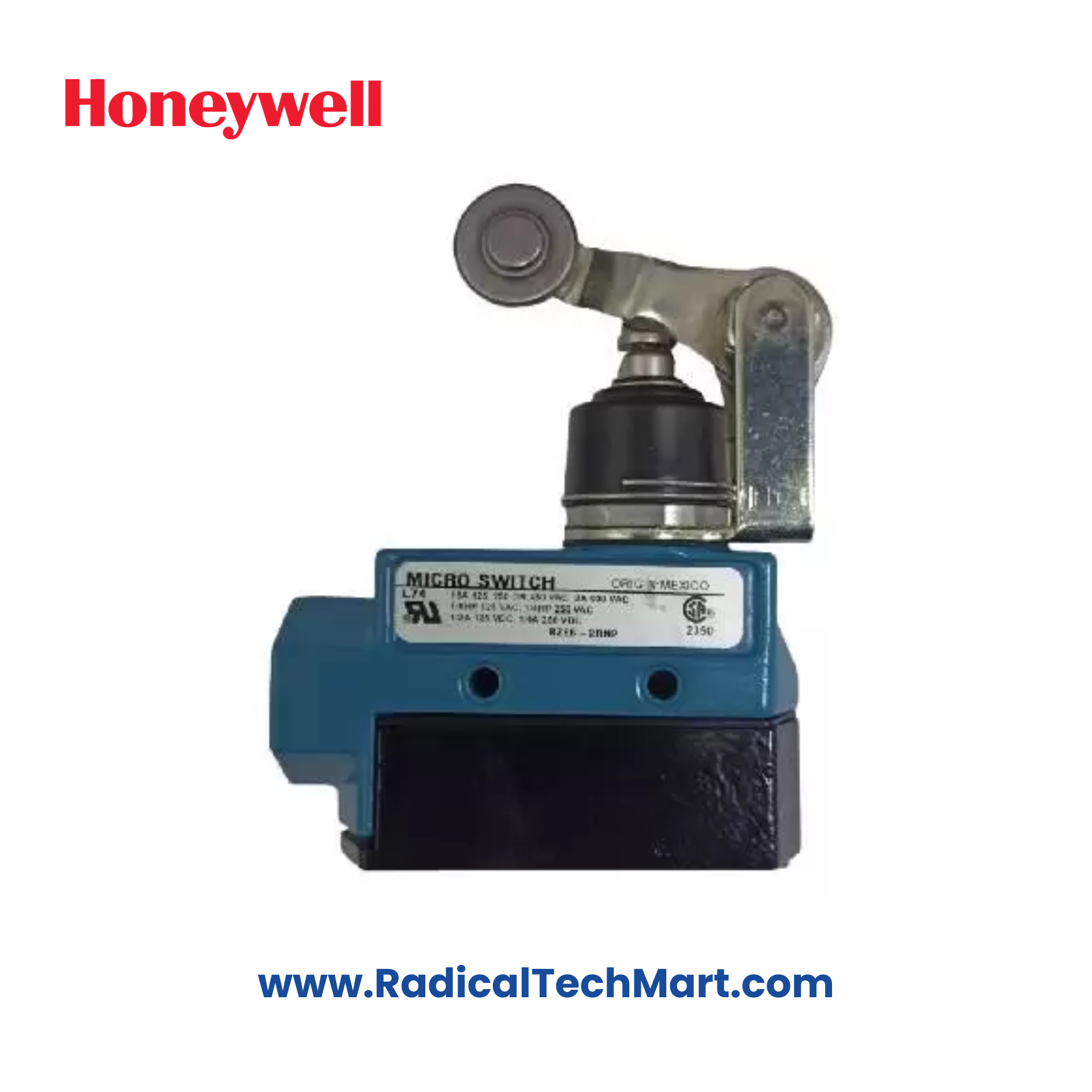

BZE6-2RN2 Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| BRAND | Honeywell |
| MODEL NO. | BZE6-2RN2 |
| Actuators | Roller Lever |
| Housing material | electrostatic epoxy coated zinc die-cast |
| Sealing | actuator with boot seal: NEMA 1, 3, 4, IP66 actuator without seal boot: NEMA 1, IP40 |
| Switch type, Circuitry | BZ, SPDT |
| Electrical Rating [page 6] | A, 15 A |
| Operate Force N [oz] | 2,78 to 5,57 [10 to 20] |
| Operate Point mm [in] | 71,42 Ref [2.812] |
| Pretravel mm [in] max. | 4,83 [0.188] |
| Over Travel mm [in] min. | 5,56 [0.219] |
| Differential Travel mm [in] max. | 0,15 [0.006] |
