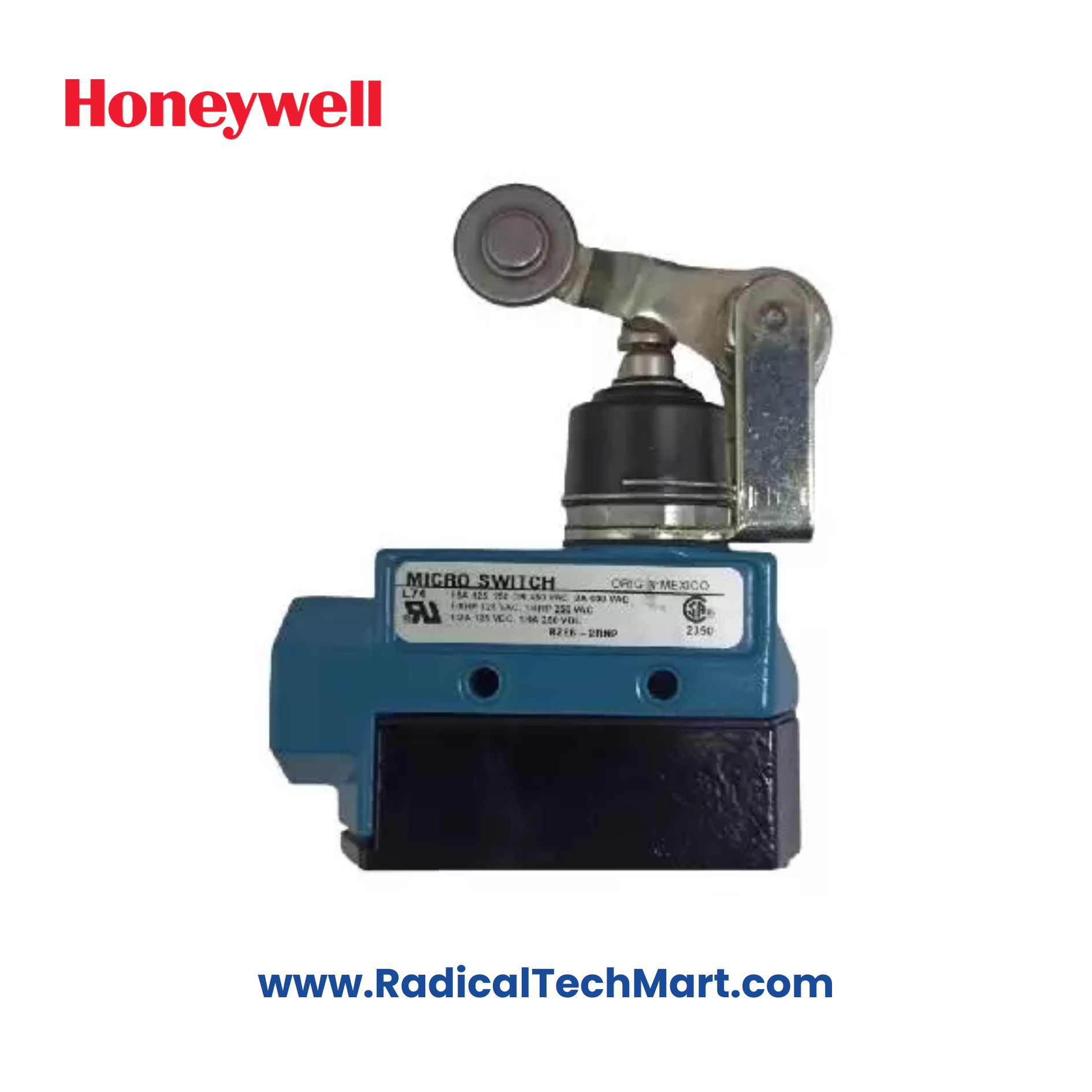

Honeywell BZE6-2RN2 Limit Switch | Roller Lever Type

Product Summary:
The Honeywell BZE6-2RN2 is a heavy-duty SPDT limit switch equipped with a roller lever actuator, designed to deliver reliable position sensing in industrial environments. Its robust construction with electrostatic epoxy-coated zinc housing ensures performance even in demanding applications.

Key Features:

• Model: BZE6-2RN2

• Actuator Type: Roller Lever

• Housing: Epoxy-coated zinc die-cast for durability

• Sealing: Boot seal—NEMA 1, 3, 4, IP66; Without boot—NEMA 1, IP40

• Circuit: SPDT (BZ series)

• Electrical Rating: 15 A

• Operation Force: 2.78 to 5.57 N (10 to 20 oz)

• Travel Specs:

  • Operate Point: 71.42 mm (2.812 in)

  • Pretravel: max. 4.83 mm (0.188 in)

  • Over Travel: min. 5.56 mm (0.219 in)

  • Differential Travel: max. 0.15 mm (0.006 in)

Applications:

• Conveyor belt safety systems

• Packaging machine end-position detection

• Industrial automation and robotics

• Door interlocking systems

• Limit control in mechanical presses

Product Benefits:

• High mechanical durability for industrial usage

• Water-tight and dust-resistant with IP66 sealing

• Reliable SPDT switch action

• Easy integration into automation systems

• Long operational life and stable performance

FAQs

Q1: What is the electrical rating of the BZE6-2RN2 limit switch?
A1: It has an electrical rating of 15 A, suitable for controlling high-power circuits.

Q2: Can this switch be used outdoors?
A2: Yes, the IP66-rated boot-sealed housing makes it suitable for outdoor and harsh environments.

Q3: What type of actuator does this limit switch have?
A3: It features a roller lever actuator for smooth mechanical actuation.
