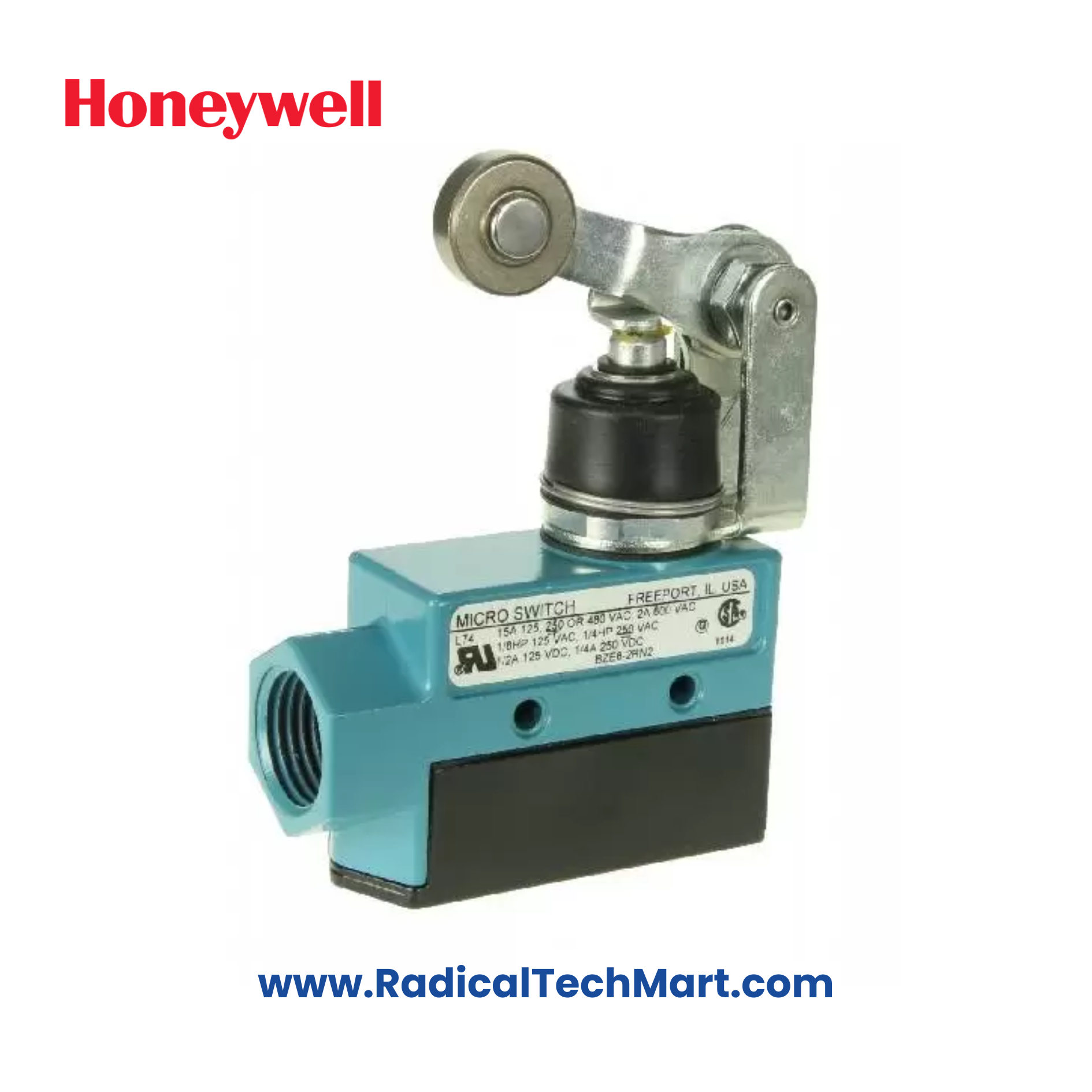

BZE6-2RN2-S Honeywell Limit Switch

Product Summary:
The BZE6-2RN2-S Honeywell Limit Switch is a high-performance SPDT switch with a boot-sealed roller lever actuator, designed for reliable operation in demanding applications. Its rugged zinc die-cast housing with electrostatic epoxy coating ensures durability and long service life.

Key Features:

• Model No: BZE6-2RN2-S

• Actuator Type: Roller Lever with boot seal

• Contact Type: SPDT (Single Pole Double Throw)

• Electrical Rating: 15A

• Sealing: NEMA 1, 3, 4, IP66 (with boot); IP40 (without)

• Operating Force: 2.78 to 5.57 N (10 to 20 oz)

• Housing Material: Epoxy-coated zinc die-cast

• Travel Range: Pretravel – 4.83 mm; Overtravel – 5.56 mm

• Reference Operate Point: 71.42 mm (2.812 in)

• High resistance to dust, oil, and water

Applications:

• Industrial machinery safety systems

• Conveyor position sensing

• Packaging machines

• Material handling systems

• Automotive assembly lines

Product Benefits:

• Reliable and precise actuation

• Suitable for harsh environments with IP66 protection

• Long service life with high mechanical strength

• Easy installation and maintenance

• Trusted Honeywell brand assurance

FAQs:

Q1: What is the electrical rating of the BZE6-2RN2-S limit switch?
A1: It supports up to 15A, making it suitable for various industrial loads.

Q2: Can this switch be used outdoors or in wet environments?
A2: Yes, with its boot-sealed actuator and IP66-rated housing, it is ideal for such conditions.

Q3: What type of actuator does it use?
A3: It comes with a roller lever actuator for smooth mechanical triggering.
