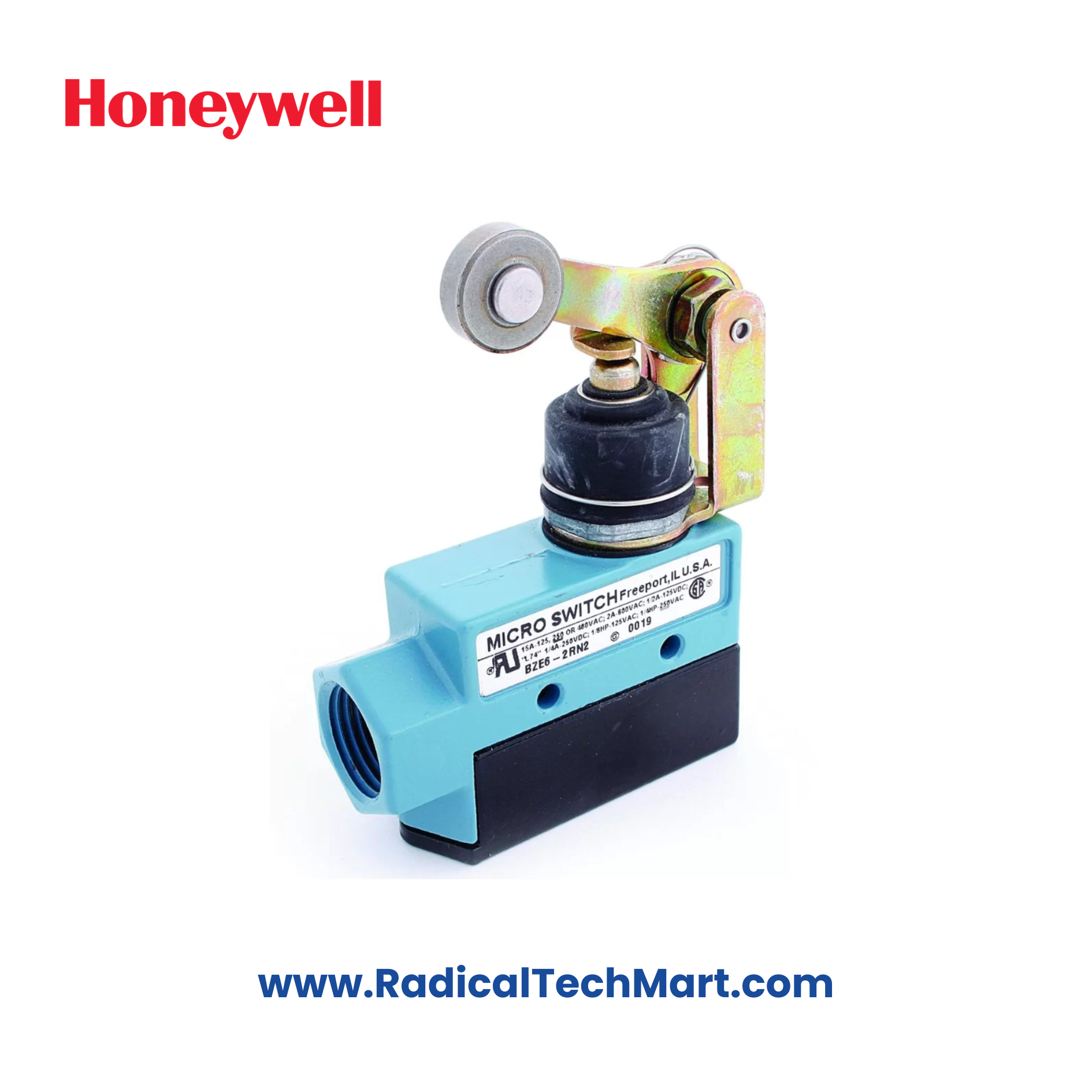

BZE6-2RN80 Honeywell Limit Switch

Product Summary:
The Honeywell BZE6-2RN80 is a durable limit switch with high mechanical and electrical endurance, suitable for a wide range of automation and industrial applications. It features a robust design and offers various actuator options.

Key Features:

• Model No: BZE6-2RN80

• Actuator Type: Top pin plunger

• Sealing: IP66 (with boot seal)

• Contact Configuration: SPDT (1NO/1NC)

• Housing: Zinc die-cast with electrostatic epoxy coating

• Operating Temp: -32 °C to 71 °C (standard)

• Endurance: Up to 5 million mechanical cycles

• Certifications: UL, CSA, CE, UKCA

• Switching Options: SPDT, SPDT-DB, DPDT

• Termination Type: As per Table 2

Applications:

• Industrial automation systems

• Conveyor systems

• Machine tools

• Safety interlocks

• OEM machinery

Product Benefits:

• Reliable operation in harsh environments

• Long mechanical and electrical life

• Multiple actuator styles for versatile use

• Easy integration with existing systems

• Globally approved with major certifications

FAQs:

Q1: What actuator type comes with the BZE6-2RN80?
A1: It features a top pin plunger actuator, suitable for precision mechanical applications.

Q2: Is the BZE6-2RN80 switch sealed against dust and water?
A2: Yes, with a boot seal, it provides IP66 protection. Without the boot seal, it’s rated IP40.

Q3: Can this switch operate in low-temperature environments?
A3: Yes, it is operable down to -32 °C by default and -40 °C with the optional low-temp version.
