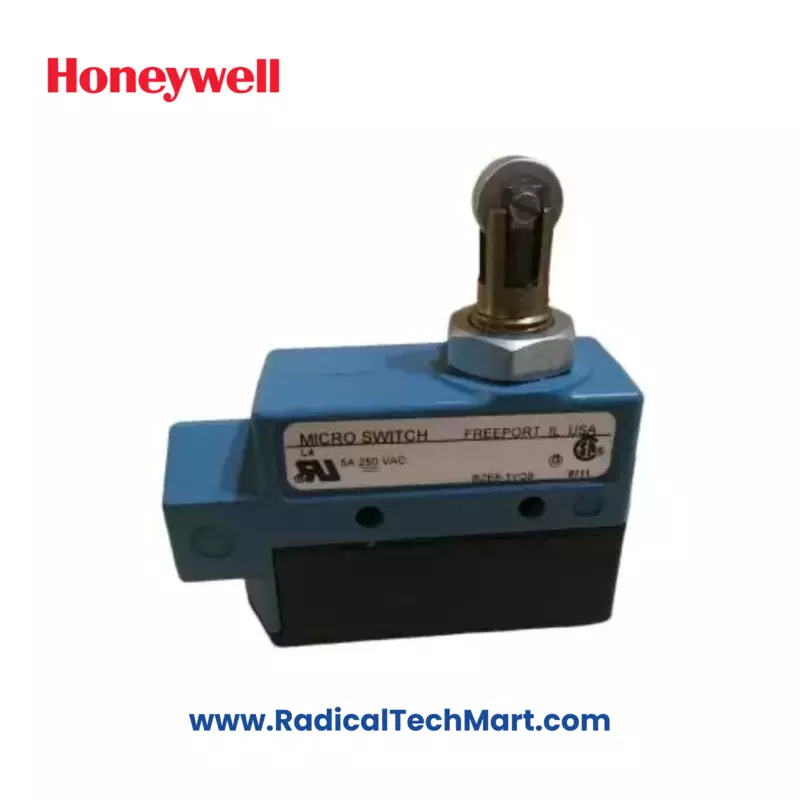

BZE6-3YQ9 Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| BRAND | Honeywell |
| MODEL NO. | BZE6-3YQ9 |
| Actuators | top pin plunger (with and without boot seal) top roller plunger, parallel with long axis of switch (with and without boot seal) cross roller plunger, perpendicular with long axis of switch (with and without boot seal) manually operated (with boot seal) roller arm, adjustable (with and without boot seal) one-way roller lever (with boot seal) low-force rod lever (with and without boot seal) wobble (with boot seal) manual reset switches: top pin plunger, top roller plunger, adjustable roller arm, wobble |
| Housing material | electrostatic epoxy coated zinc die-cast |
| Sealing | actuator with boot seal: NEMA 1, 3, 4, IP66 actuator without seal boot: NEMA 1, IP40 |
| Switch type, Circuitry | BZ,SPDT |
| Electrical Rating [page 6] | A, 15 A |
| Operate Force N [oz] | 2,50 to 6,67 [9 to 24] |
| Operate Point mm [in] | 43,66 ±0,76 [1.719 ±0.030] |
| Pretravel mm [in] max. | 1,98 [0.078] |
| Over Travel mm [in] min. | 5,56 [0.219] |
| Differential Travel mm [in] max. | 0,05 [0.002] |
