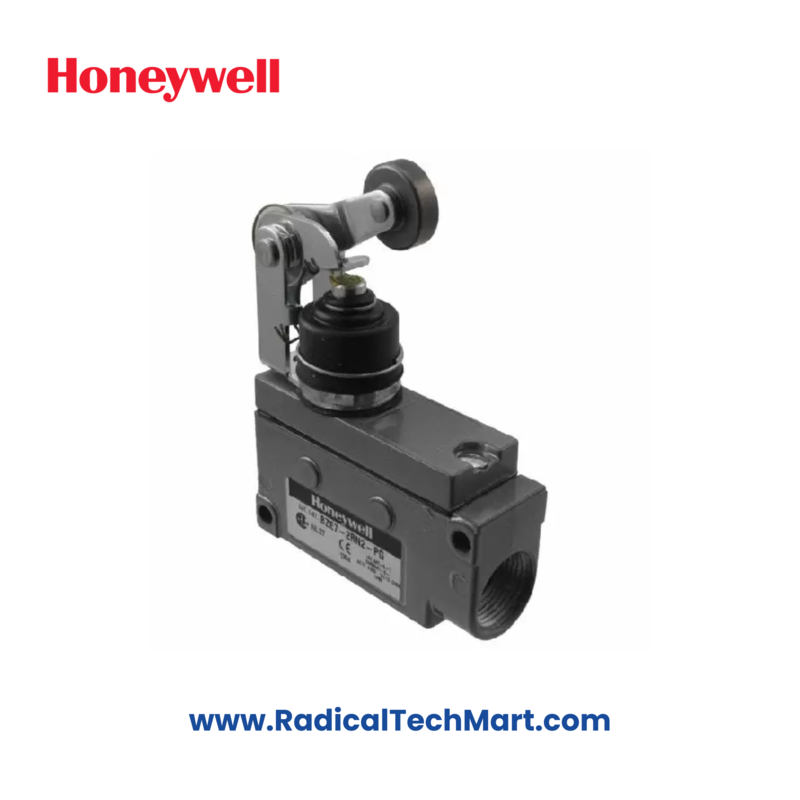

BZE7-2RN2-PG Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| BRAND | Honeywell |
| MODEL NO. | BZE7-2RN2-PG |
| Actuators | top pin plunger (boot sealed or standard type); inline roller plunger (boot sealed or standard type); cross roller plunger (boot sealed or standard type); roller lever adjustable (boot sealed or standard type); one-way roller lever adjustable (boot sealed); coil spring wobble (boot sealed) |
| Enclosure type | diagonal side mount with single conduit (E7 type); diagonal side mount or side mount with single conduit (E7S type), side mount with double conduit (E9 type) flange mount with single conduit (V7 type) |
| Housing material | electrostatic epoxy coated zinc die-cast |
| Termination | threaded conduit, 20 mm or PG 13,5 |
| Sealing | actuator with boot seal: IP65 actuator (QN8 style) with internal plunger seal: IP65 actuator without boot seal or internal plunger seal: IP50 |
| Switching options | SPDT (snap-action contacts) 1NC/1NO, same polarity DPDT (snap-action contacts) 2NC/2NO, each pole same polarity |
| Operating temperature | -30 °C to 70 °C [-22 °F to 158 °F] |
| Rated impulse voltage Ui | 1.5 kV |
| Pollution degree (with enclosure) | 1 (DTE Series); 2 (BZE and BZV Series) |
| Agency certifications | EN/IEC 60947-5-1 (all Series); CSA file 15775 (BZ prefix only) |
