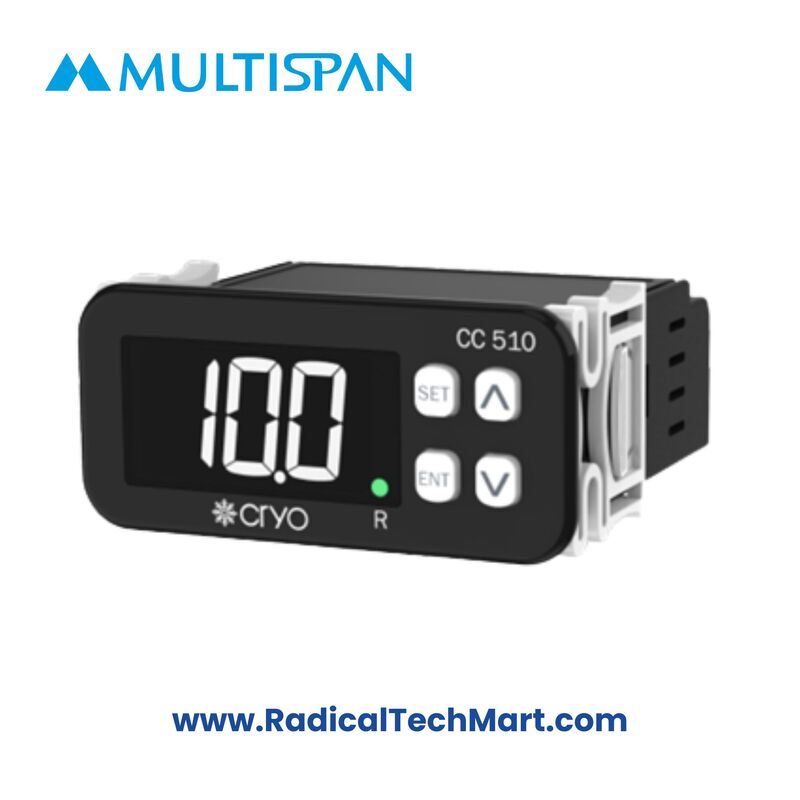

CC-510 Multispan

Product Summary:
The Multispan CC-510 is a versatile cooling controller designed for precise temperature control in refrigeration systems like chillers and freezers. With advanced features such as mode selection (heating/cooling), defrost control, and a high-contrast LED display, it ensures optimal performance in industrial and commercial HVAC applications.

Key Features:

• Mode Selection: Cooling or Heating

• Adjustable Offset and Relay Delay Time

• Defrost Enable/Disable with programmable frequency and time

• Decimal Point Resolution: 0.1°C / 1°C

• Large 3-digit, 0.56” LED display (Red/White)

• One NO-C-NC Relay Output (10A @ 230V AC / 28V DC)

• LED status indicators and 4 key operation (SET, UP, DOWN, ENTER)

• Panel mount with compact design (37x78x70mm)

Applications:

• Deep Freezers

• Display Cabinets

• Chillers (Air & Water)

• Portable Chillers

• Heat Pumps

Product Benefits:

• Ensures consistent temperature control with adjustable hysteresis and defrost functions

• Ideal for space-saving installations due to compact panel-mount design

• Reduces equipment downtime with configurable relay and defrost delays

• Energy-efficient operation with low power consumption (3VA max)

• Wide input compatibility (NTC sensor, ±1% FSD, -50°C to 99.9°C)

FAQs:

Q1. What type of sensor is supported by the CC-510?
A1. The controller supports an NTC sensor with ±1% FSD accuracy and a measuring range of -50°C to 99.9°C.

Q2. Can the CC-510 be used for both cooling and heating applications?
A2. Yes, it features selectable modes for both heating and cooling, making it versatile for HVAC control systems.

Q3. How is the defrost cycle managed in this controller?
A3. The CC-510 allows programmable defrost enable/disable, frequency (1–999 hours), and time duration (1–999 minutes).
