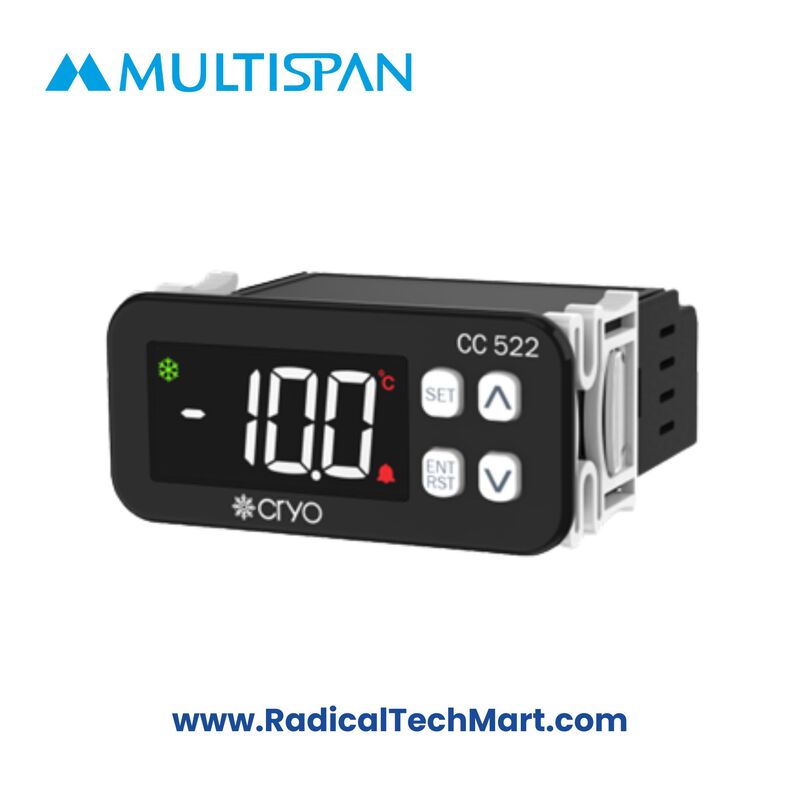

CC-522 Multispan

Product Summary:
The Multispan CC-522 is a compact digital temperature controller designed for precise thermal regulation in refrigeration, cold storage, and industrial HVAC systems. With dual relay outputs and a programmable interface, it ensures operational efficiency and temperature consistency.

Key Features:

• Input: NTC sensor with a range of –50.0°C to +99.9°C

• Dual 20A relay outputs: Compressor + Alarm

• 3-digit 0.62” 7-segment Red/White display

• Configurable heating/cooling modes

• Adjustable hysteresis, calibration, and delay

• Password protection and keypad lock

• Alarm settings with polarity control

• Compact panel cutout: 30 x 71 mm

Applications:

• Cold storage and refrigeration units

• Dairy and food processing plants

• Pharmaceutical temperature control

• HVAC and industrial cooling systems

Product Benefits:

• High switching capacity for direct compressor control

• Alarm relay enhances safety in case of sensor failure or limit exceed

• Easy to configure with default preloaded parameters

• Display visibility in low-light or high-vibration conditions

• Suitable for harsh industrial environments (up to 85% RH)

FAQs:

Q1. What is the sensor input type used in CC-522?
A1. The CC-522 uses an NTC sensor with a temperature measurement range from –50.0°C to +99.9°C.

Q2. Can the controller operate in both heating and cooling modes?
A2. Yes, the controller can be configured for heating, cooling, or both based on your application's requirements.

Q3. What happens if the sensor fails or is disconnected?
A3. The display will show an error (OPN), and the compressor relay behavior can be configured to turn ON, OFF, or operate in a duty cycle for safety.
