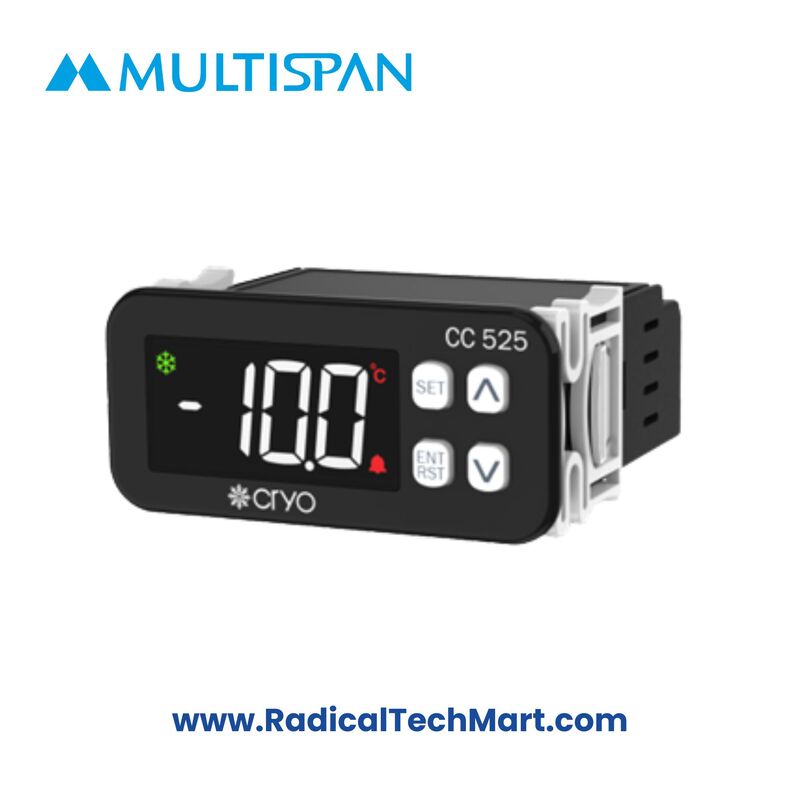

CC-525 Multispan

Product Summary:
Multispan CC-525 is a versatile and compact digital cooling controller ideal for temperature regulation in refrigeration and HVAC applications. It offers hysteresis-based ON/OFF control, sensor precision, and multiple configurations for industrial use.

Key Features:

• ON/OFF control with hysteresis & offset

• Adjustable relay delay: 0 to 999 min

• Sensor range: -50.0°C to 99.9°C (NTC)

• 3-digit LED display (Red/White)

• Alarm delay & alarm ON time programmable

• Factory-set power options: 230V AC / 24V DC / 12V DC

• Panel mount with 30 x 71 mm cutout

• Polycarbonate body with M3 terminal screws

Applications:

• Deep freezers

• Display cabinets

• Chillers

• Portable chillers

• Heat pumps

Product Benefits:

• Accurate temperature control for refrigeration

• Easy configuration using keypad or touch interface

• Durable and reliable design for industrial environments

• Versatile mounting and power supply options

• Customizable alarm and control settings

FAQ:

Q1: What type of sensor is compatible with the CC-525 controller?
A1: The CC-525 uses an NTC sensor with a nominal resistance of 10k ohm and supports a range from -50.0°C to 99.9°C.

Q2: Can I choose different display colors for the controller?
A2: Yes, the CC-525 is available in Red and White display options with corresponding key/button and body color combinations.

Q3: Is this controller suitable for use in portable chillers?
A3: Absolutely. The CC-525 is designed for various applications, including portable chillers, thanks to its compact size and reliable control features.
