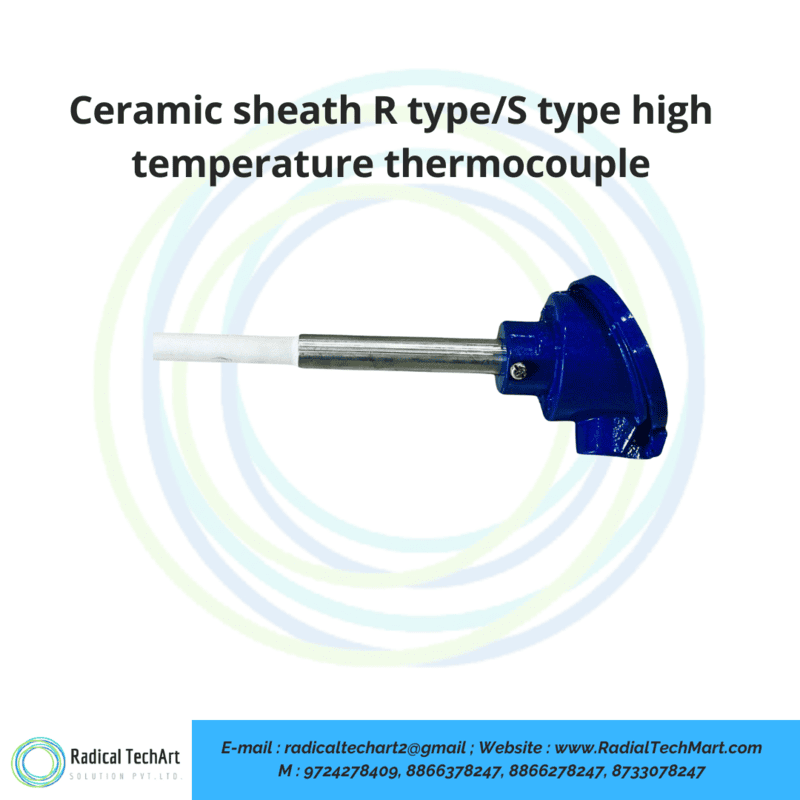

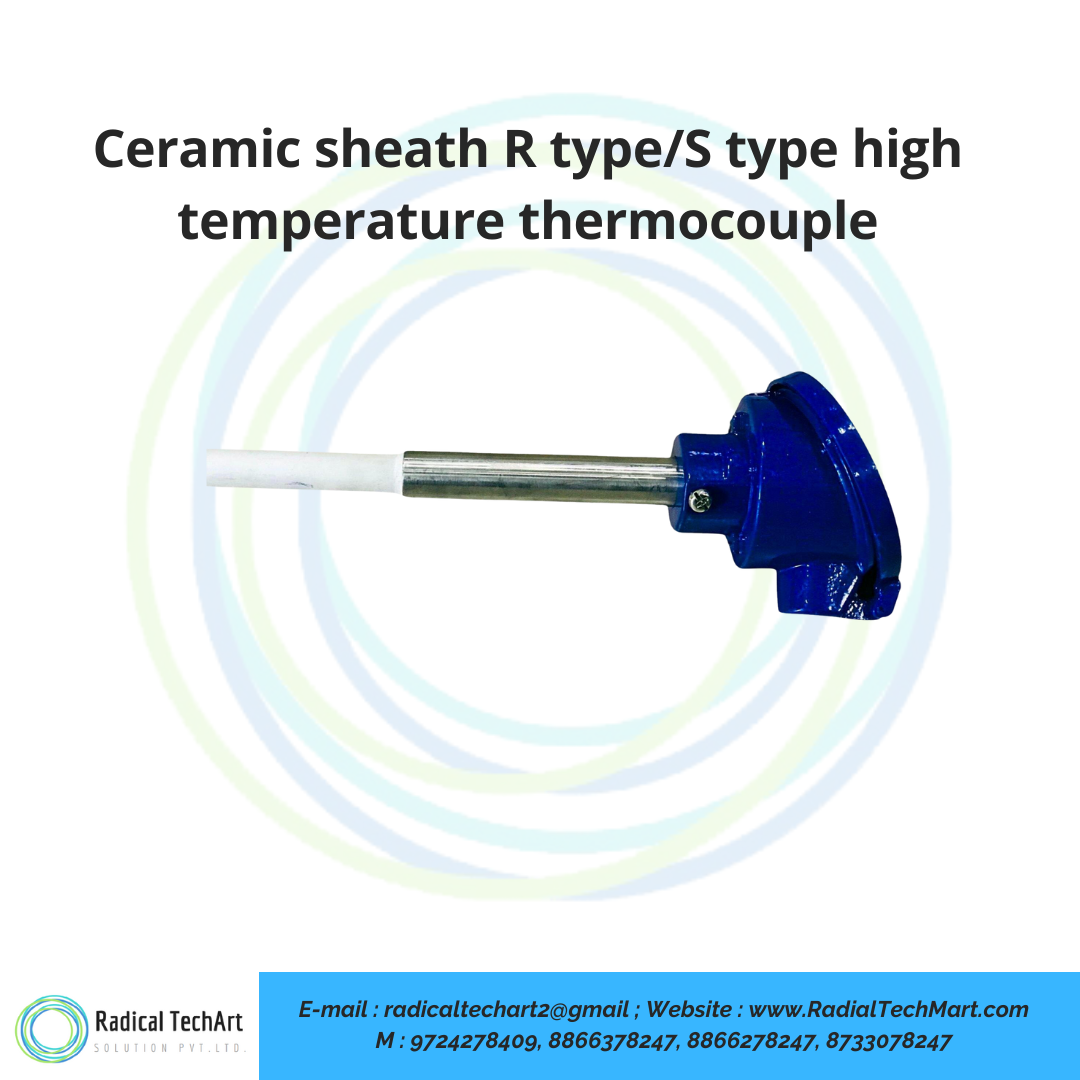

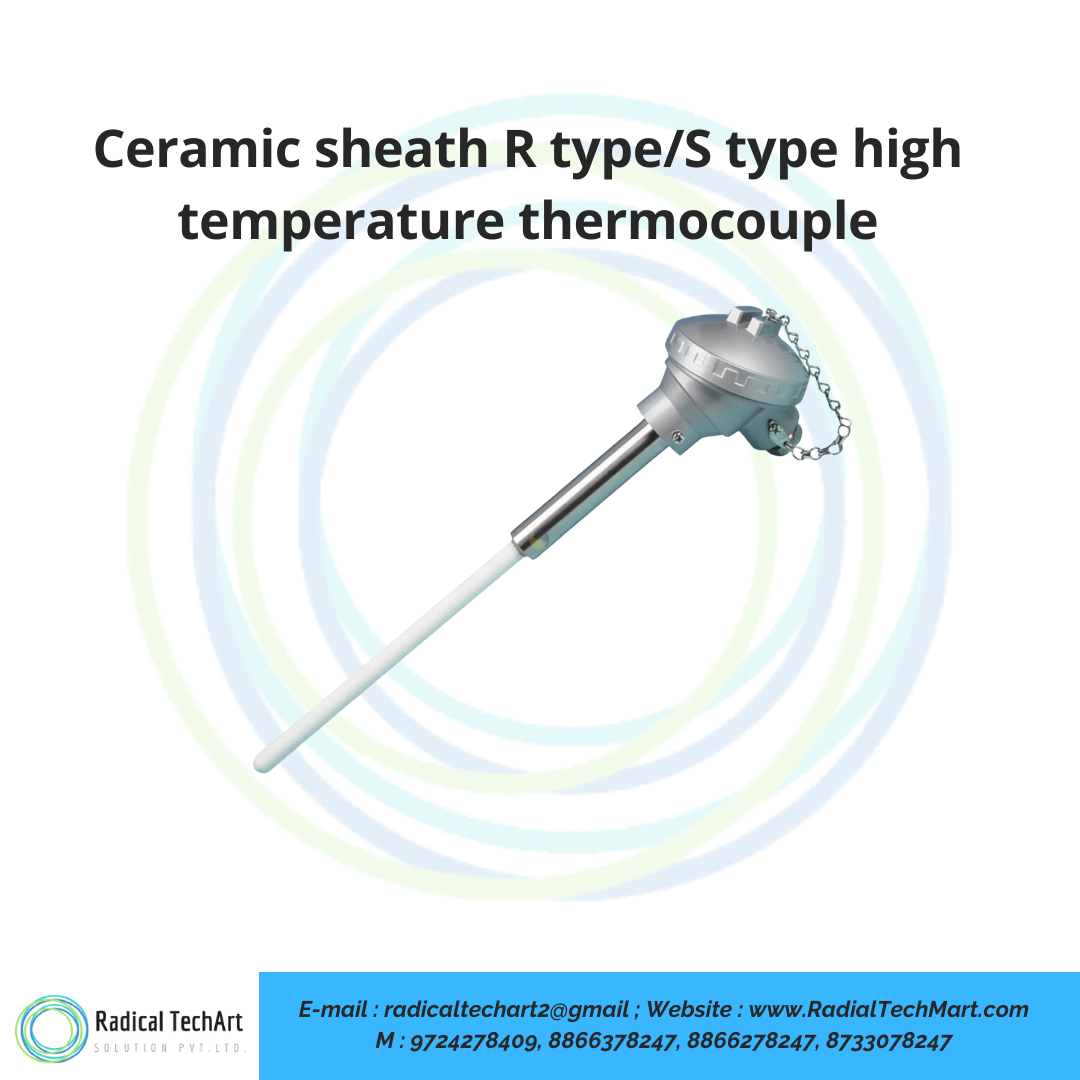

Ceramic Sheath R Type and S Type High Temperature Thermocouple

A. Product Overview

Ceramic Sheath R Type and S Type High Temperature Thermocouple is a premium temperature sensor used for measuring very high temperatures in industrial processes. It is suitable for applications where normal metal sheath thermocouples may not survive due to extreme heat.

R Type and S Type thermocouples are made using platinum and platinum rhodium alloy wires. These materials provide stable temperature measurement at high temperatures and are widely used in critical heating applications.

The ceramic sheath acts as a protective covering around the thermocouple element. It helps protect the sensor from direct heat, oxidation, contamination and harsh furnace environments. These thermocouples are commonly used in furnaces, kilns, boilers, heat treatment plants, laboratories, metalworking industries and manufacturing units.

B. Working Principle

A thermocouple works on the principle of voltage generation between two different metal wires. When the measuring junction is exposed to heat, it generates a small voltage. This voltage changes according to the temperature.

In an R Type or S Type thermocouple, platinum and platinum rhodium alloy wires are joined at the sensing end. When this sensing end is placed inside a furnace, kiln or high temperature process area, the thermocouple generates a signal based on the process temperature.

This signal is then sent to a temperature indicator, controller, recorder or automation system. The ceramic sheath protects the sensing element and allows the thermocouple to measure temperature safely in high heat applications.

C. Why It Is Used

Ceramic Sheath R Type and S Type High Temperature Thermocouples are used where accurate and stable temperature measurement is required at very high temperatures.

They are used because they offer:

• Reliable temperature measurement in high temperature applications
• Better stability compared to standard base metal thermocouples
• Protection from oxidation and harsh furnace conditions
• Suitable performance in furnace, kiln and heat treatment applications
• Long service life when properly installed and maintained
• Accurate temperature monitoring for process quality and safety

In industries like metalworking, aerospace, glass, ceramics and manufacturing, temperature control is directly connected to product quality. This thermocouple helps maintain correct process temperature and supports consistent output.

D. Suitable Buyers

This product is suitable for buyers who need high temperature temperature measurement in demanding industrial environments.

Suitable buyers include:

• Furnace manufacturers
• Kiln manufacturers
• Boiler manufacturers
• Heat treatment plants
• Metalworking industries
• Foundries
• Aerospace component manufacturers
• Ceramic industries
• Glass manufacturing plants
• Laboratory equipment manufacturers
• Industrial maintenance teams
• Process automation companies
• Temperature sensor dealers and suppliers
• OEM machine manufacturers

FAQ

1. What is a Ceramic Sheath R Type and S Type High Temperature Thermocouple?
It is a high temperature sensor used to measure temperature in furnaces, kilns, boilers, heat treatment plants and other high heat industrial applications.

2. What is the temperature range of this thermocouple?
Ceramic sheath high temperature thermocouples are commonly used for temperatures up to 1600°C or 1700°C, depending on the thermocouple type, sheath material and application design.

3. What is the difference between R Type and S Type thermocouple?
Both R Type and S Type thermocouples use platinum and platinum rhodium alloy wires. They are used for high temperature measurement, but their temperature range, output and application suitability may vary based on process requirements.

4. Why is ceramic sheath used in this thermocouple?
Ceramic sheath is used because it can withstand high temperature and protect the thermocouple element from harsh furnace conditions, oxidation and contamination.

5. Where is this thermocouple commonly used?
It is commonly used in furnaces, kilns, boilers, heat treatment equipment, metalworking plants, ceramic industries, glass industries and manufacturing applications.

6. Can this thermocouple be supplied in simplex and duplex configuration?
Yes, it can be supplied in simplex or duplex configuration based on the application requirement and monitoring system.

7. Is this thermocouple suitable for continuous high temperature measurement?
Yes, it is suitable for continuous high temperature measurement when selected with the correct thermocouple type, ceramic sheath, length, diameter and enclosure.

8. What enclosure options are available?
Common enclosure options include weatherproof enclosure and flameproof enclosure, depending on the installation area and safety requirement.

9. Why is periodic calibration important?
Periodic calibration helps maintain measurement accuracy and reliability, especially in critical high temperature applications.

10. Who should buy this thermocouple?
This thermocouple is ideal for furnace users, kiln operators, heat treatment plants, OEMs, maintenance teams and industrial buyers who need reliable high temperature measurement.
