Chint Auxiliary Contact NXC Mini Series

A. Product Overview

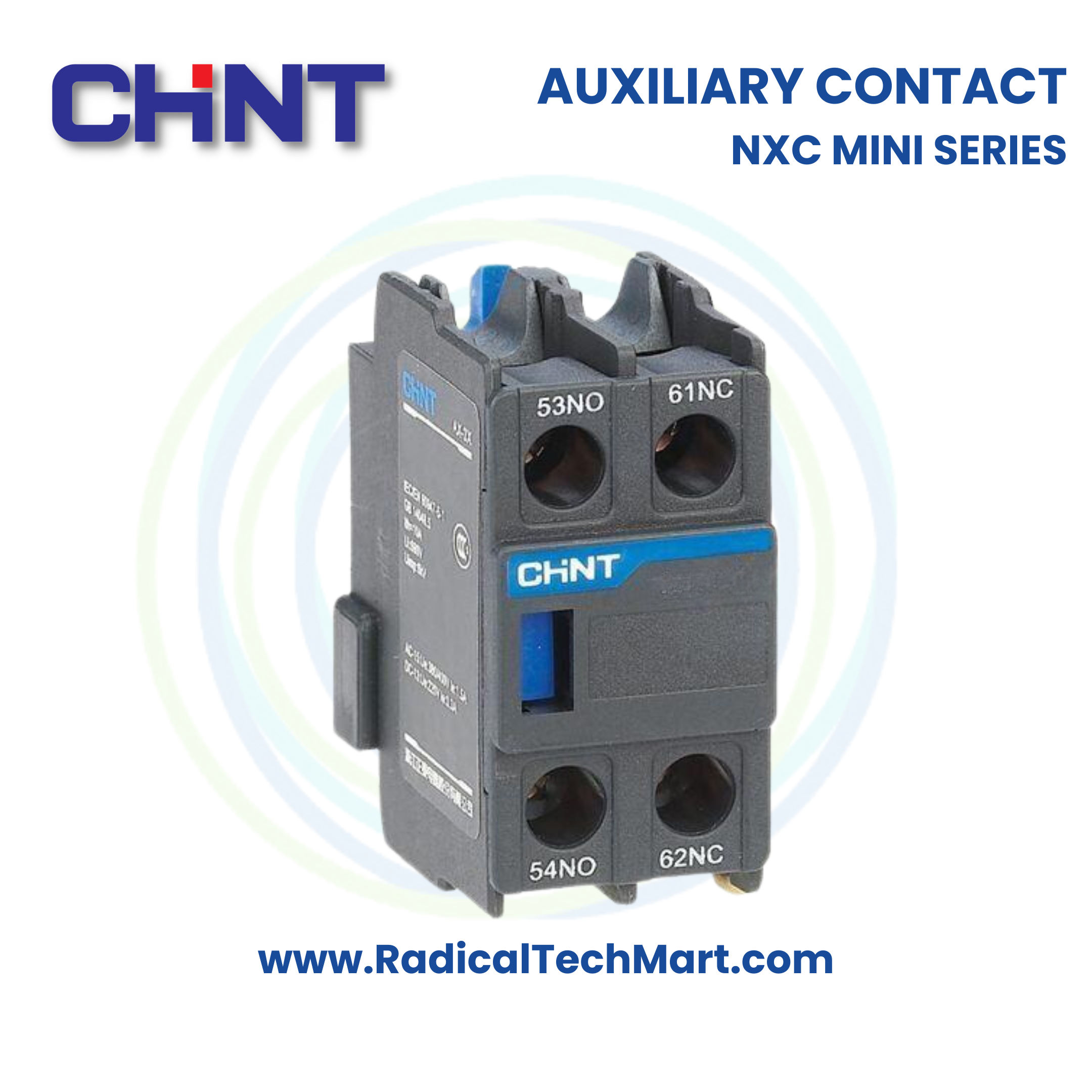

CHINT NXC Mini Series Auxiliary Contacts are snap-on contact blocks designed to be mounted on NXC series mini AC contactors. These auxiliary contacts provide additional normally open (NO) and/or normally closed (NC) signaling points required for control logic, interlocking, feedback to PLCs, and status indication in industrial electrical systems. They are not load-carrying power contacts, but low-current control contacts intended for reliable switching of control circuits. The auxiliary contacts conform to the operating and environmental conditions defined for the NXC contactor range under IEC/EN 60947-4-1 systems.

B. Working Principle
The auxiliary contact operates mechanically in synchronization with the main contactor. When the NXC contactor coil is energized and the main contacts close, the auxiliary contact changes state (NO closes, NC opens). When the coil is de-energized, the auxiliary contact returns to its normal state. This direct mechanical linkage ensures accurate status feedback of the actual contactor position, which is critical for safe control logic, electrical interlocking, and automation sequencing.

C. Key Applications

• Oil & Gas: Interlocking and run-status feedback in motor starter panels and utility skids

• Chemical & Process: PLC input feedback for pump, agitator, and utility motor control circuits

• Power & Utilities: Status indication and control logic in auxiliary and station service panels

• Pharma: AHU and utility motor control with feedback for BMS and automation systems

• Food & Beverage: Packaging line motor starters and conveyor control panels

• Water & Wastewater: Pump control panels for run/trip indication and interlocking

• HVAC & Refrigeration: Compressor and fan contactor feedback to thermostats, BMS, and PLCs

• General Automation: Control panels requiring additional NO/NC contacts without adding relays

D. Why Industries Use This Product
Industrial control systems require reliable and repeatable feedback of contactor status to ensure safe sequencing, fault diagnostics, and interlocking between multiple loads. Using a dedicated auxiliary contact avoids unsafe practices such as tapping power contacts for signaling. It improves control circuit reliability, reduces wiring complexity, and supports standardized panel design. If auxiliary contacts are omitted or incorrectly selected, risks include false status indication, unsafe interlocking, nuisance tripping, or control logic failure leading to unplanned downtime. The NXC auxiliary contacts are designed to match the mechanical and electrical characteristics of the NXC contactor range, ensuring compatibility and long service life when installed correctly.

E. Suitable Buyers

• OEMs: Control panel and machine builders using NXC mini contactors with standardized accessories

• EPC Contractors: Automation and electrical contractors building MCCs and utility panels

• System Integrators: PLC and BMS panel integrators requiring accurate contactor status feedback

• Maintenance & Utilities Teams: Commonly used for replacement or panel modification where additional NO/NC points are required

• Plant Engineering & Procurement: Preferred in retrofit projects to expand control logic without redesigning power circuits

Quick Answers

What is CHINT NXC Mini Series Auxiliary Contact?
It is an add-on auxiliary contact block used with CHINT NXC mini contactors to provide additional NO/NC contacts for control, signalling, and interlocking circuits.

Where is CHINT NXC auxiliary contact used?
Used in industrial control panels, motor starter circuits, HVAC panels, and automation systems for status feedback and control logic.

Why is CHINT NXC auxiliary contact required in industry?
It provides reliable contactor position feedback and enables safe interlocking and PLC/BMS integration without adding separate relays.

Who typically uses CHINT NXC auxiliary contacts?
Panel OEMs, system integrators, EPC contractors, and plant maintenance teams working with NXC series contactors.

FAQ Section

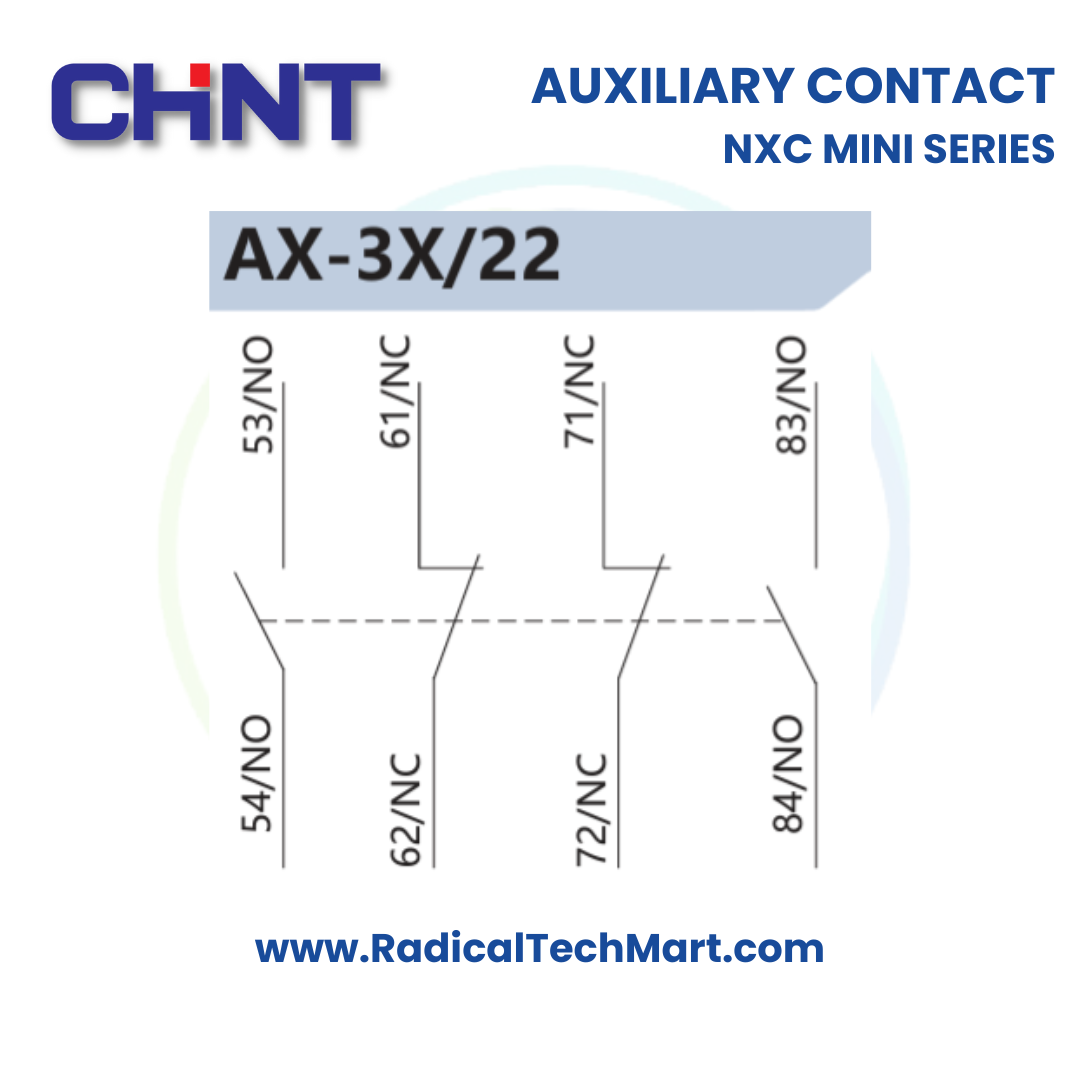

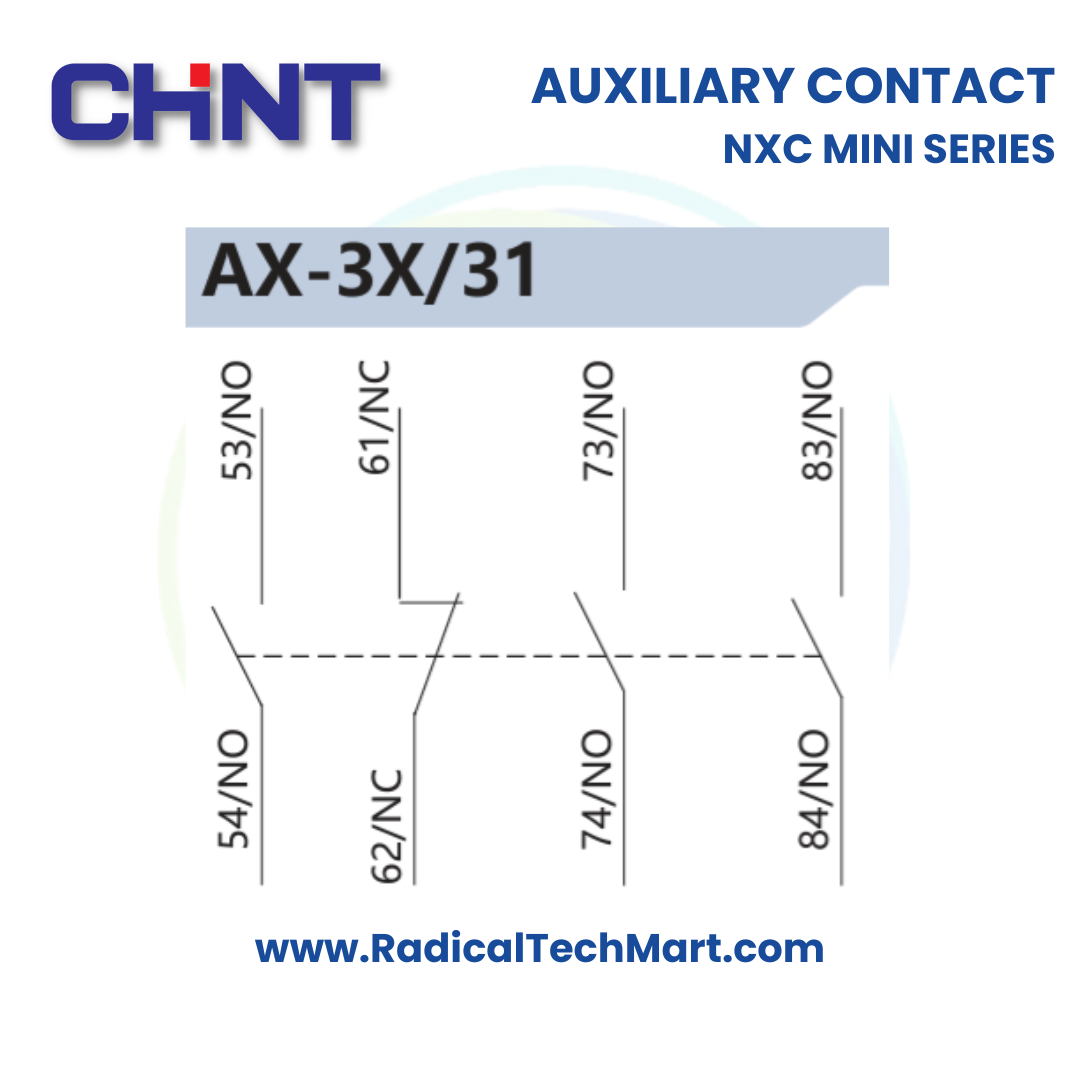

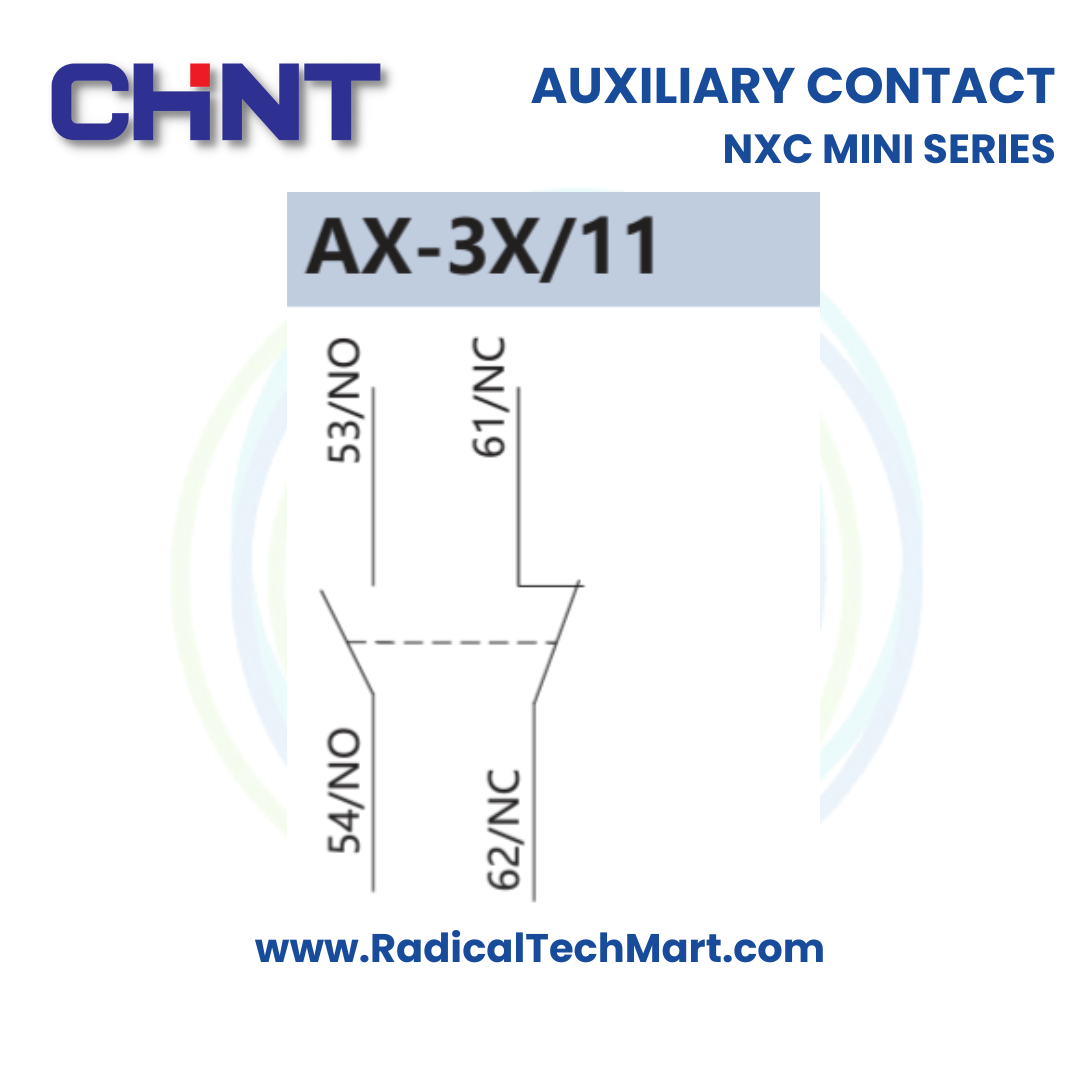

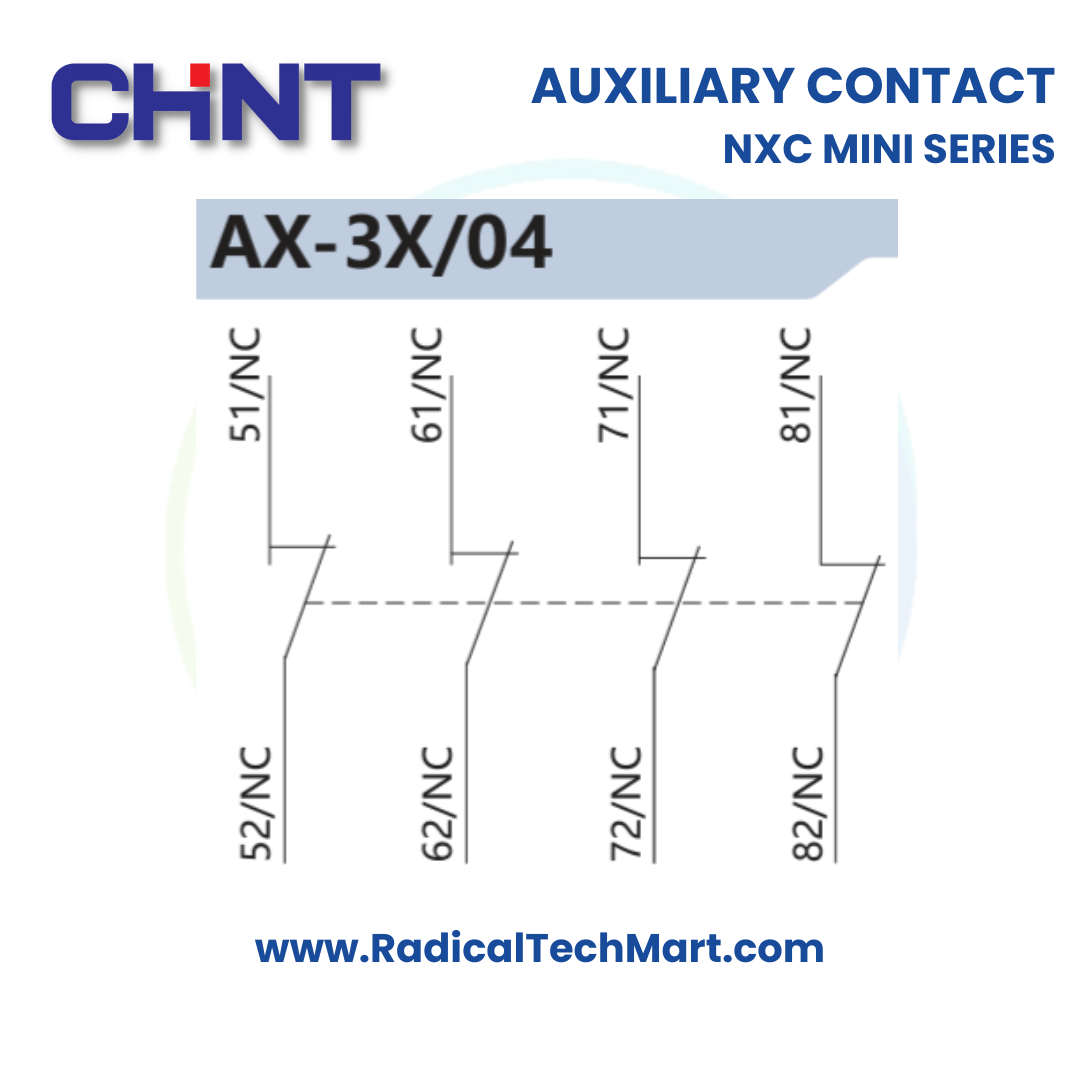

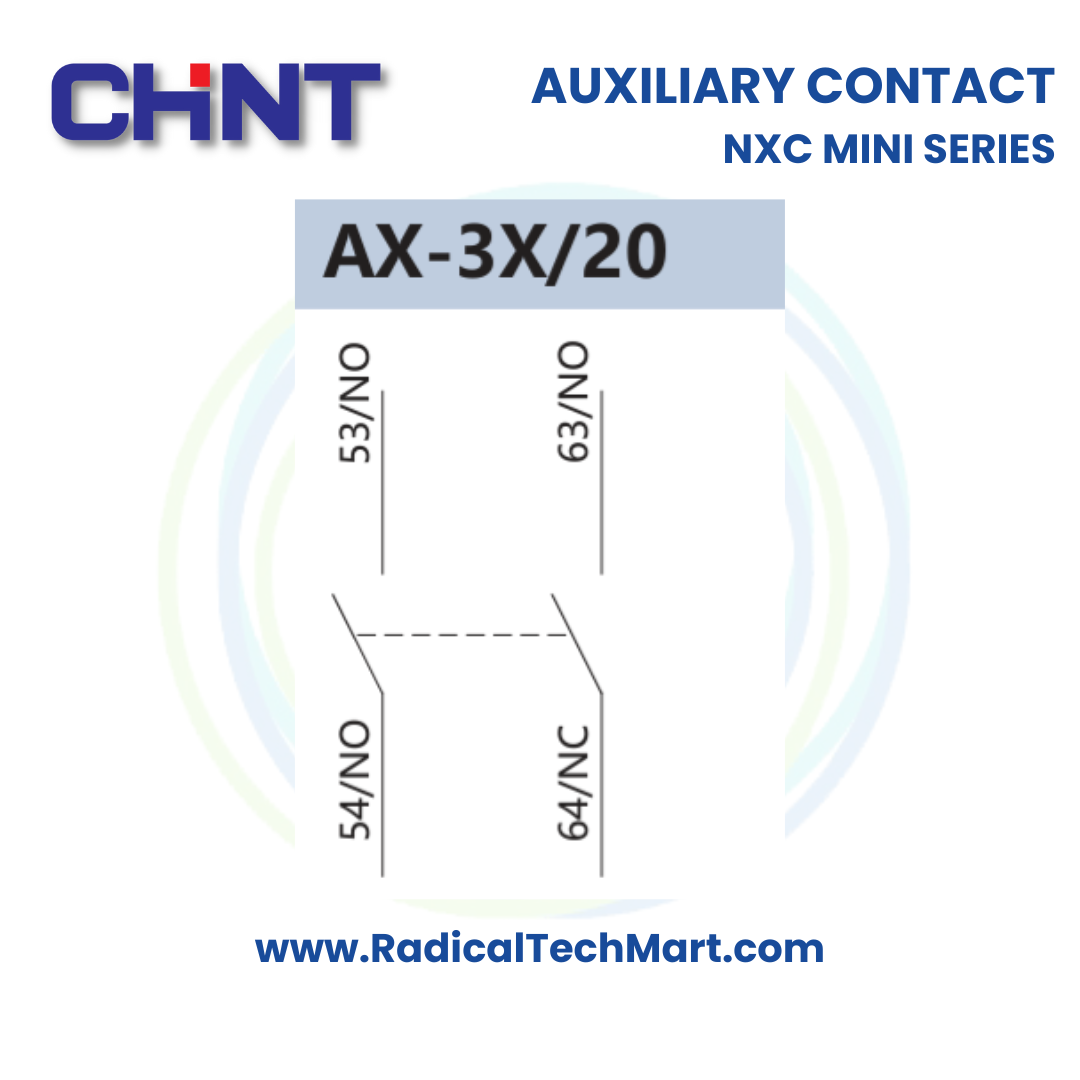

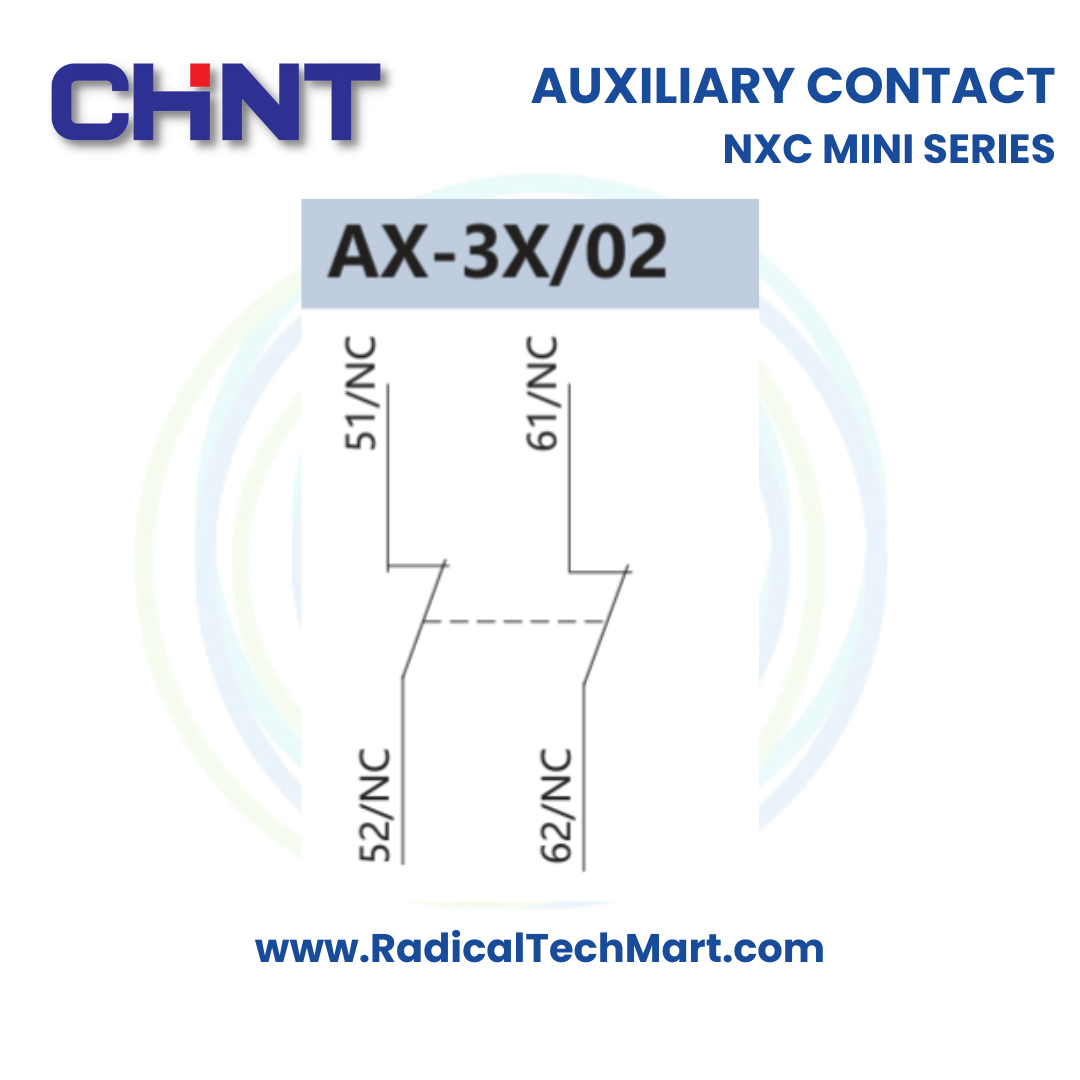

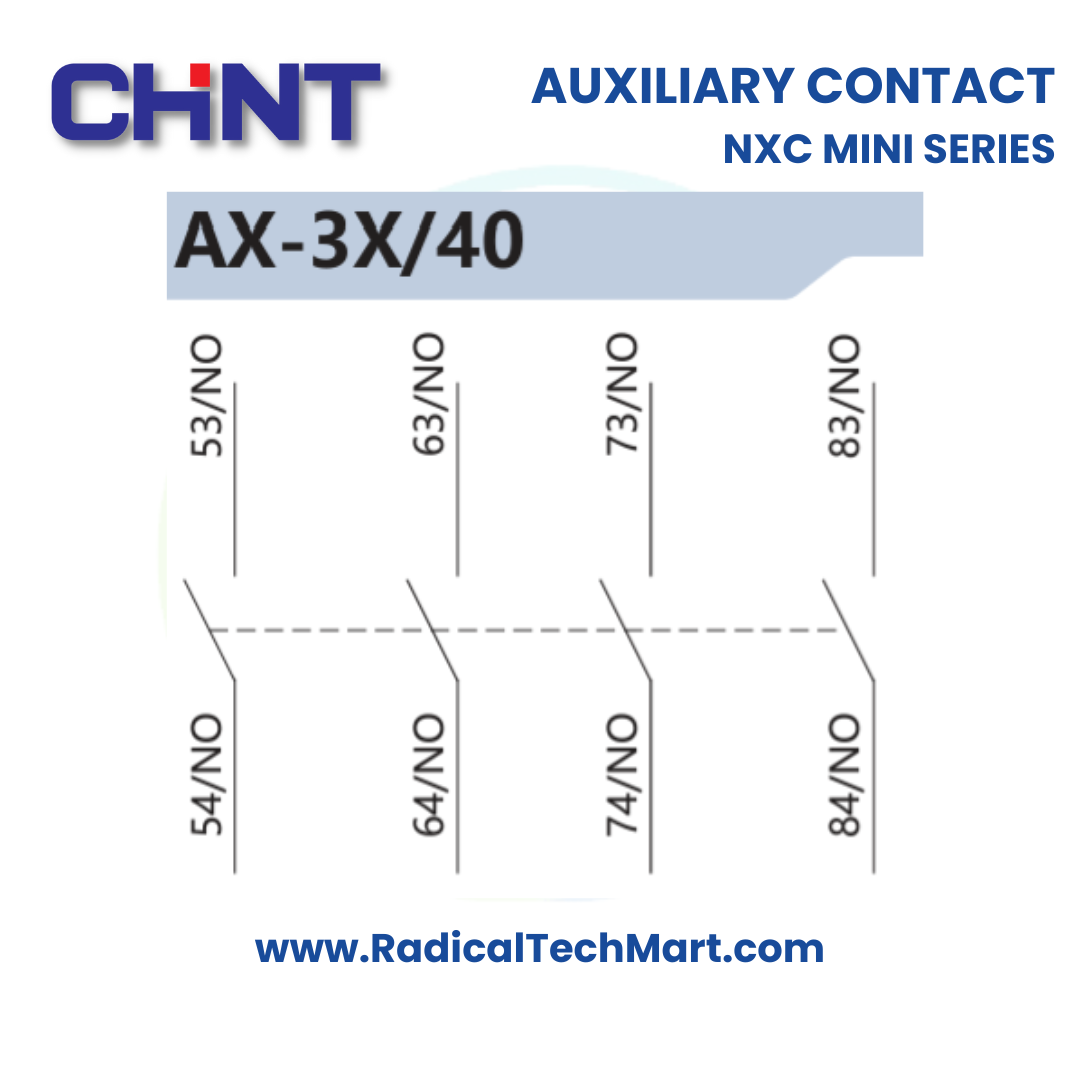

1) What contact configurations are available in NXC mini auxiliary contacts?
The NXC mini series supports common configurations such as 1NO, 1NC, or combined NO/NC blocks depending on the accessory model. Selection should match the control logic requirement and existing panel wiring to avoid functional mismatch.

2) Are NXC auxiliary contacts suitable for power circuits?
No. These auxiliary contacts are designed for control and signaling duties only (such as AC-15 / DC-13 type control circuits). They should never be used to carry motor or heater load currents.

3) How are NXC auxiliary contacts installed?
They are mechanically clipped onto the designated mounting position on the NXC contactor body. Installation should be done with power isolated, ensuring proper alignment so that the auxiliary contact actuates correctly with the main contactor.

4) Can auxiliary contacts be added later during retrofit or maintenance?
Yes. One of the advantages of the NXC mini series is the ability to add auxiliary contacts during panel modification or shutdown maintenance without changing the main contactor or power wiring.

5) What are common failure risks with auxiliary contacts?
Common issues include loose control wiring, incorrect voltage applied to the control circuit, or mechanical damage due to improper mounting. Periodic inspection during maintenance helps prevent false signals and control failures.
