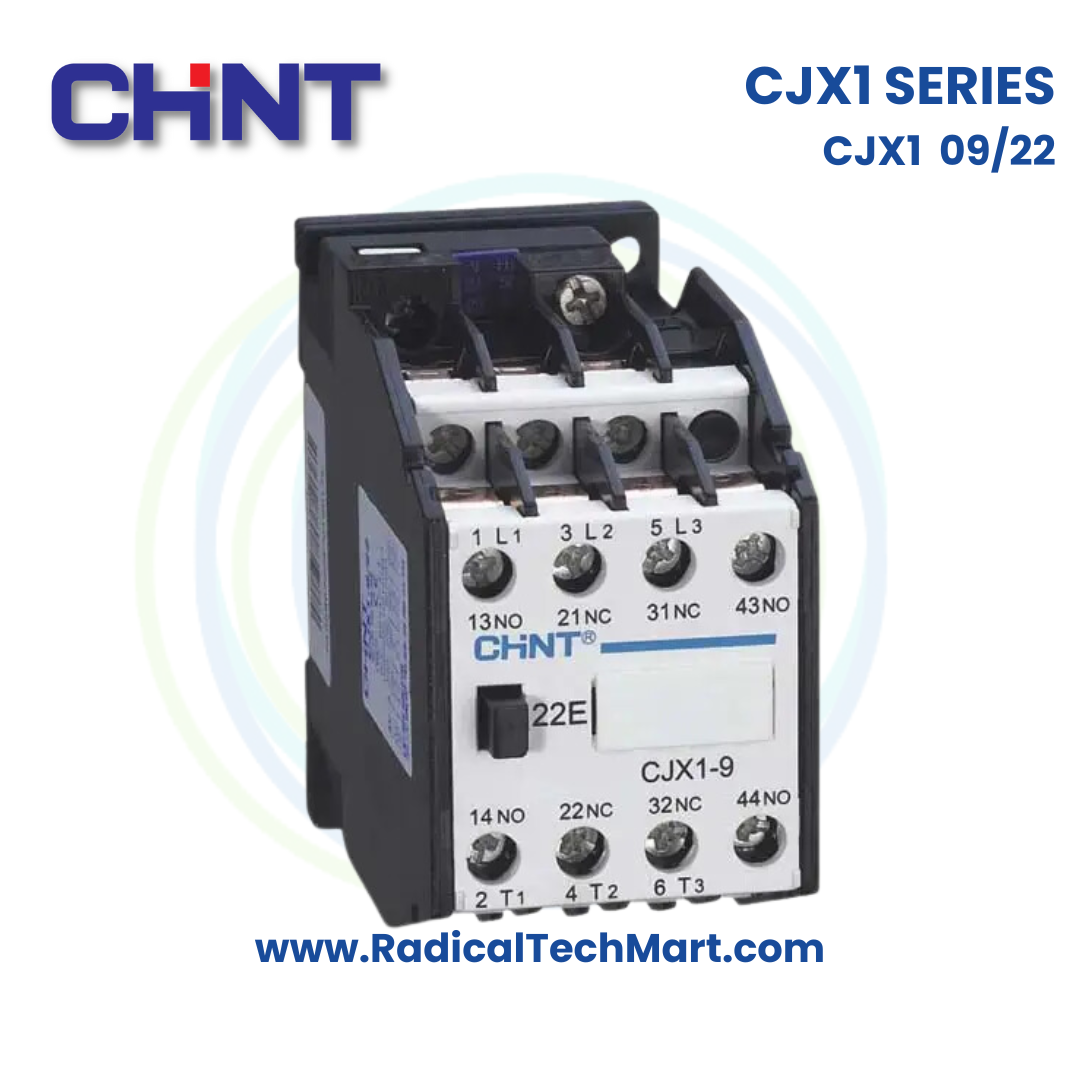

Chint CJX1 09/22 Contactor

A. Product Overview
Chint CJX1 09/22 belongs to the CJX1 series AC contactors intended for frequent switching duties in industrial electrical systems, especially motor control under AC-3 duty. As a panel-mounted switching device, it enables remote making and breaking of power circuits and is widely used in motor feeders, MCC panels, compressor control panels, pump panels, and machine control cabinets. The CJX1 09 and CJX1 22 variants are typically selected based on the motor feeder current range and the duty severity (start/stop frequency and load type). The series is specified for AC motor start/stop control and can support forward/reverse motor control when used with appropriate interlocking in the circuit (as indicated for the CJX1 series use-case).

B. Working Principle
An AC contactor operates using an electromagnetic coil and a moving armature. When the coil is energized, the magnetic force pulls the armature, closing the main power contacts to supply the motor or load. When the coil is de-energized, the spring mechanism returns the armature to its normal position, opening the contacts and isolating the load. In practical plant conditions, stable coil supply and clean magnetic pole faces are important to prevent chatter, noise, and incomplete closing/releasing. For DC use of certain CJX1 variants, terminal polarity must be maintained as specified (A1/A2 identification).

C. Key Applications

• HVAC and refrigeration: compressors, condenser fans, chilled water pumps, cooling tower motors

• Water and wastewater: raw water pumps, booster pumps, aerators, dosing skids

• Food & beverage: conveyors, mixers, packaging machines, utility pumps and blowers

• Pharma and clean utilities: AHUs, utility pumps, vacuum systems, skids

• Power and utilities: auxiliary motors, cooling systems, ventilation and material handling

• General manufacturing/OEMs: machine tools, injection molding auxiliaries, robotics panels (power switching)

• Oil & gas / chemical plants: non-hazardous panel rooms for pump and fan motor feeders (as per site classification and panel design)

D. Why Industries Use This Product
Industries use CJX1 contactors to standardize motor switching with a serviceable, panel-friendly device that supports safe isolation and controlled operation from pushbuttons, PLC outputs, or relay logic. In motor feeders, a properly selected contactor helps reduce unplanned downtime caused by unreliable switching, overheating contacts, or coil failures. If contactors are undersized or operated with unstable control voltage, typical issues include contact welding, contact surface burning/blackening, coil burnout, slow release, excessive vibration/noise, and unreliable operation—leading to motor tripping, process stoppages, and maintenance escalation. The CJX1 manual emphasizes safe installation by trained technicians, prohibition of use in explosive/moist-condensation environments, and isolation of power during maintenance—critical for preventing electrical hazards and improving panel reliability. Maintenance guidance also highlights periodic inspection and replacement of severely burned contacts, and cleaning of magnetic pole faces to restore reliable operation.

E. Suitable Buyers
OEM panel builders and machine manufacturers requiring standardized motor control components for production equipment.
EPC contractors and system integrators building MCC, PCC, HVAC control panels, and skid control systems for industrial projects.
Plant maintenance, utilities, and electrical teams for routine replacement of motor contactors in pump rooms, compressor houses, and utility panels.
Procurement and project purchase teams for approved makes in standardized installations, commonly used for replacement, and widely accepted in retrofit projects where CJX1 series matching simplifies spares and downtime planning.

Quick Answers

What is Chint CJX1 09/22?
Chint CJX1 09/22 is a CJX1 series AC contactor used for switching and controlling AC power circuits, commonly for start/stop control of AC motors under industrial duty conditions.

Where is Chint CJX1 09/22 used?
It is used in motor feeders and control panels for pumps, fans, compressors, conveyors, and utility equipment in HVAC, water treatment, manufacturing, food & beverage, pharma, and general industrial plants.

Why is Chint CJX1 09/22 required in industry?
It enables safe and repeatable remote switching of motors/loads, supports panel standardization, and helps reduce downtime risk when correctly selected and maintained (contact condition, coil voltage stability, clean pole faces).

Who typically uses Chint CJX1 09/22?
OEMs, panel builders, EPC contractors, system integrators, and plant maintenance/procurement teams that manage motor control panels and industrial electrical systems.

FAQ Section

1) Is CJX1 09/22 suitable for motor start/stop applications?
Yes. The CJX1 series is intended for long-distance making/breaking of circuits and is commonly applied for controlling AC motor start/stop, including use-cases like forward/reverse control when the circuit design includes correct interlocking. Selection should match motor current and duty.

2) What are common reasons for contactor chatter, vibration, or failure to operate?
Typical causes include low or fluctuating control voltage, coil mismatch leading to overheating/burnout, contamination on the magnetic pole face, and welded contacts due to severe switching stress. Corrective actions include stabilizing supply voltage, replacing damaged coils/contacts, and cleaning pole faces as part of preventive maintenance.

3) Can CJX1 09/22 be mounted on a DIN rail inside control panels?
For CJX1 frame sizes in the lower range (including 9–32 class), the manual indicates installation can be by screw mounting or using a 35 mm standard installation rail (DIN rail). Ensure the permitted mounting orientation is followed to avoid mechanical issues.

4) What should be checked when replacing an existing CJX1 09 or CJX1 22 contactor?
Confirm the coil/control voltage rating used in the panel, verify the required auxiliary contacts (NO/NC) for interlocks and feedback, and match the mounting method and wiring arrangement. After replacement, check for smooth pull-in/release and abnormal noise, and ensure terminals are tightened as per good panel practices.

5) What maintenance practices help extend contactor life in industrial panels?
Carry out periodic inspection for contact burning/blackening, clean lightly affected contact surfaces if appropriate, replace severely burned contacts, and keep the magnetic pole faces clean to prevent chatter and heating. Also ensure control voltage remains stable and the panel environment avoids moisture condensation and contamination.
