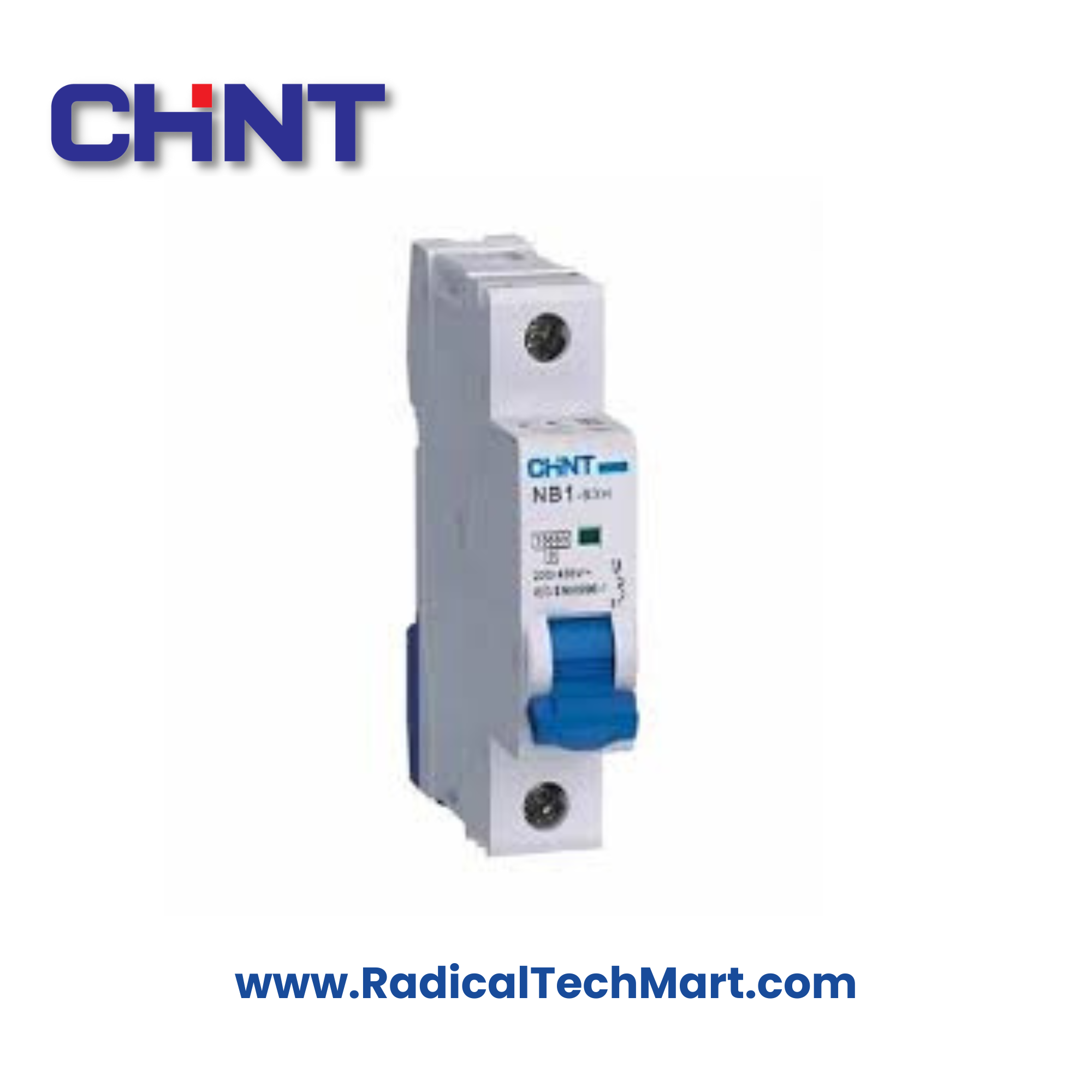

CHINT NB1-63H 1 Pole C Curve MCB

A. Product Overview
The CHINT NB1-63H 1P C Curve MCB is a single-pole miniature circuit breaker designed to protect low-voltage AC circuits against overload and short-circuit faults. In industrial and commercial electrical distribution boards, an MCB is a first-line protection device that prevents cable overheating, insulation failure, and downstream equipment damage. The NB1-63 series is intended for AC 50/60 Hz circuits, with operating voltage ratings suitable for standard LV systems, and it is aligned to IEC/EN 60898-1 requirements. For the NB1-63H variant, the rated short-circuit breaking capacity is specified up to 10 kA, supporting higher fault-level installations compared to standard MCB ranges.

B. Working Principle
The MCB combines two trip mechanisms to isolate the circuit during abnormal conditions. During overloads (sustained overcurrent), a thermal element heats up and trips the mechanism to open the contacts, limiting conductor temperature rise. During short circuits (high fault current), an instantaneous magnetic mechanism operates rapidly to disconnect the circuit and reduce arc energy. The device also supports infrequent manual switching under normal operating conditions, making it suitable for feeder protection and routine isolation in panels.

C. Key Applications

• Oil & Gas: Auxiliary power feeders in skids, analyser shelters, lighting and small utility circuits

• Chemical & Process: MCC/DB outgoing protection for instrumentation power, utility sockets, control circuits

• Power & Utilities: LT distribution boards, metering panels, station service auxiliaries

• Pharma: Clean utility boards, AHU/utility auxiliaries, packaging line panel feeders

• Food & Beverage: Packaging lines, small drive auxiliaries, utility distribution in plants

• Water & Wastewater: Panel feeders for dosing systems, instrumentation panels, lighting circuits

• HVAC & Refrigeration: AHU auxiliaries, controls, solenoid/controls feeders (non-direct motor starting use)

• General Utilities/Buildings: Facility DB protection for lighting and mixed loads

D. Why Industries Use This Product
Industrial electrical systems need predictable fault isolation to protect people, wiring, and equipment. An MCB reduces fire risk by limiting overheating during overloads and rapidly disconnecting during short-circuit events. Using an IEC/EN 60898-1 compliant device supports standardisation across projects and maintenance practices, especially in multi-vendor panels and retrofit work. If incorrectly selected, poorly terminated, or installed in unsuitable environments, risks include nuisance tripping, failure to trip under fault conditions, overheating at terminals, and unplanned downtime. The NB1-63 series user instructions highlight that installation and maintenance should be done by qualified professionals, power must be isolated during work, and copper conductors should be used with proper tightening torque to avoid loose connections and thermal damage. It is also noted that the device is not intended for direct starting of high-inductive or high-capacitance loads (such as fans, electric motors, electric heating equipment, capacitor banks), which is a common selection risk in plants.

E. Suitable Buyers

• OEMs: Panel builders and machine OEMs using standard DIN-rail protection for outgoing feeders

• EPC Contractors: LV distribution board packages, utilities and building services electrical scope

• System Integrators: Control panel protection for PLC/SCADA cabinets and instrumentation distribution

• Maintenance & Utilities Teams: Commonly used for replacement in standardised DBs and control panels; preferred where consistent protection philosophy and spare standardisation are required

• Plant Engineering & Procurement: Widely accepted in retrofit projects and routine shutdown maintenance where IEC/EN 60898-1 aligned MCBs are specified; suitable for DIN rail mounting and typical panel wiring practices

Quick Answers

What is CHINT NB1-63H 1P C Curve MCB?
It is a single-pole miniature circuit breaker used to protect AC low-voltage circuits from overload and short-circuit faults, built to IEC/EN 60898-1 requirements.

Where is CHINT NB1-63H 1P C Curve MCB used?
Used in LV distribution boards and industrial control panels for feeder protection in utilities, HVAC auxiliaries, lighting, instrumentation power, and general plant electrical circuits.

Why is CHINT NB1-63H required in industry?
It helps prevent cable overheating, reduces fire and equipment damage risk during faults, and supports standardised protection practices in industrial electrical installations.

Who typically uses CHINT NB1-63H?
Panel OEMs, EPC contractors, system integrators, maintenance teams, and plant procurement/engineering teams for new panels, replacements, and retrofit DB upgrades.

FAQ Section

1) Is NB1-63H suitable for industrial distribution boards and control panels?
Yes. It is intended for AC 50/60 Hz low-voltage circuits and provides overload and short-circuit protection. The NB1-63H variant is specified with a higher short-circuit breaking capacity (up to 10 kA), which is relevant for installations with higher prospective fault levels.

2) What does “C Curve” mean for selection in plant applications?
A C-curve MCB is typically selected where moderate inrush currents are expected (for example, mixed loads, lighting circuits, and certain auxiliaries). It helps reduce nuisance tripping compared to more sensitive curves, provided the overall protection coordination and load characteristics are verified by the panel designer.

3) Can this MCB be used for direct starting of motors, heaters, or capacitor banks?
The user instructions state it is not suitable for direct starting of high-inductive and high-capacity loads such as fans, electric motors, electric heating equipment, and capacitor cabinets. For such loads, selection should consider dedicated motor protection and suitable protective devices.

4) What installation practices reduce heating and failure at terminals?
Use copper conductors only, choose conductor cross-sections as per rated current guidance, and tighten wiring screws to the specified torque (2.0 N·m). Loose terminations are a common cause of overheating, nuisance faults, and inability to close the handle reliably.

5) What panel environment and mounting is this intended for?
The NB1-63 series is specified with IP20 protection and typical installation conditions such as altitude up to 2000 m, pollution degree 2, and installation categories II and III. It is designed for DIN rail mounting (TH35-7.5 type). Avoid damp/condensing areas and corrosive gas environments as indicated.

6) What should be done after the MCB trips on overload or short circuit?
Eliminate the fault before re-closing. The maintenance guidance recommends periodic checks during operation and troubleshooting for causes such as load-end short circuits, mechanism fault, incorrect rating selection, loose wiring, or undersized conductors before restoring supply.
