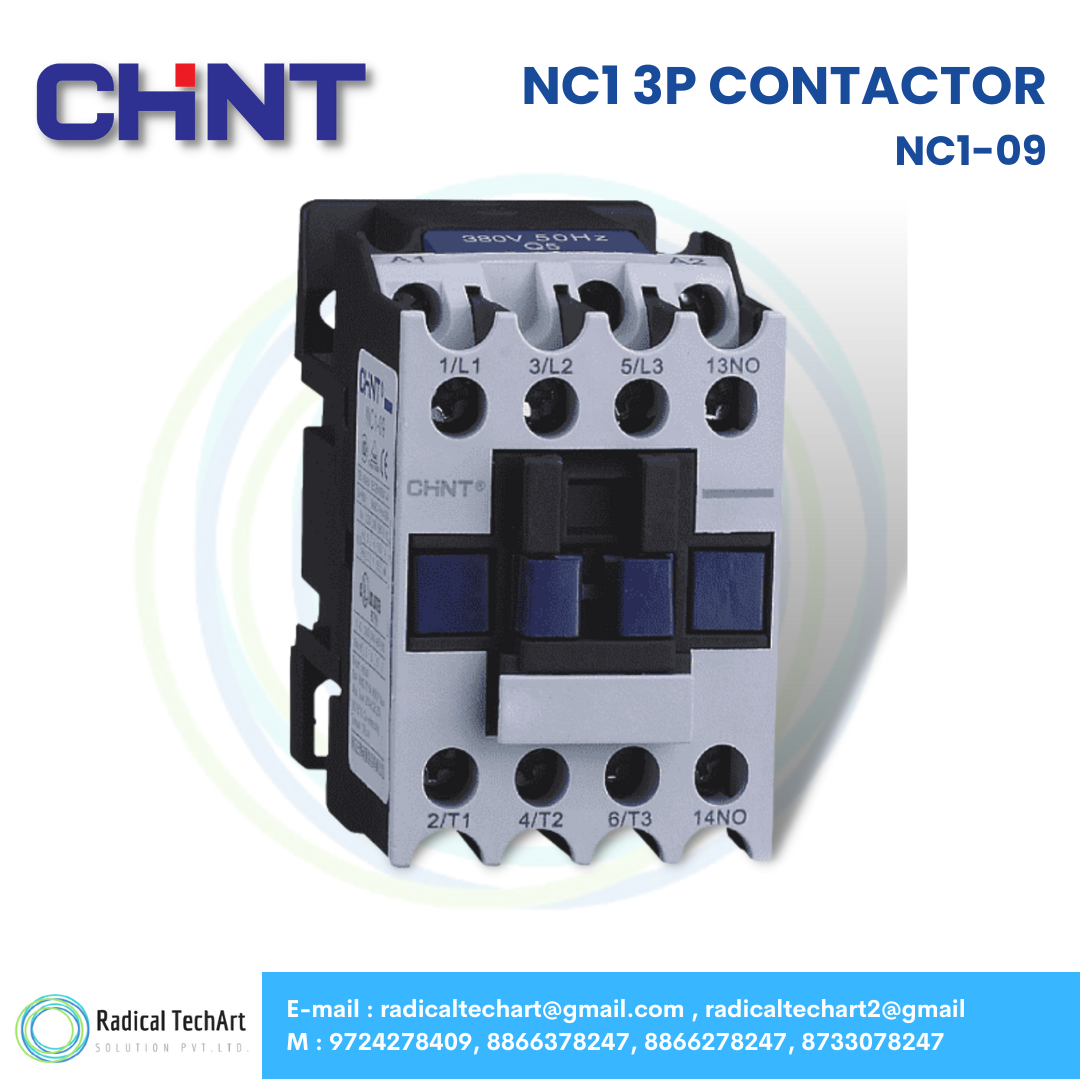

Chint NC1-09 3P Contactors
Reliable 3-pole AC contactor for switching and motor control applications up to 9A.
Product Summary:
The Chint NC1-09 3P Contactor is designed for remote circuit making and breaking, and motor control operations. Built to IEC/EN 60947-4-1 standards, it ensures durability, safety, and long-term performance.
Key Features:
Rated for AC50/60Hz, 690V, up to 9A
3-pole configuration
Utilization category: AC-3, AC-4
Altitude rated ≤2000m
Wide ambient temperature range: -5℃ to +40℃
Multiple international certifications: CE, KEMA, VDE, UL, etc.
High-quality insulation and flame-retardant housing
Compatible with thermal overload relays
Reliable coil performance and low noise operation
Applications:
Remote making & breaking of circuits
Motor control and protection
Frequent starting/stopping of AC motors
Control panels for HVAC, pumps, compressors
Industrial automation systems
Product Benefits:
Enhances operational safety and circuit protection
Ensures consistent performance in harsh environments
Reduces maintenance downtime
Compact design for easy panel integration
Global compliance with IEC/EN standards
FAQs:
Q1: What is the rated current capacity of the NC1-09 contactor?
A1: The Chint NC1-09 is rated up to 9A for AC3 duty.
Q2: Can this contactor be used with thermal overload relays?
A2: Yes, it's designed to work in combination with thermal overload relays for better protection.
Q3: What certifications does this contactor have?
A3: It holds CE, KEMA, VDE, EK, RCC, UL, and other international certifications.
