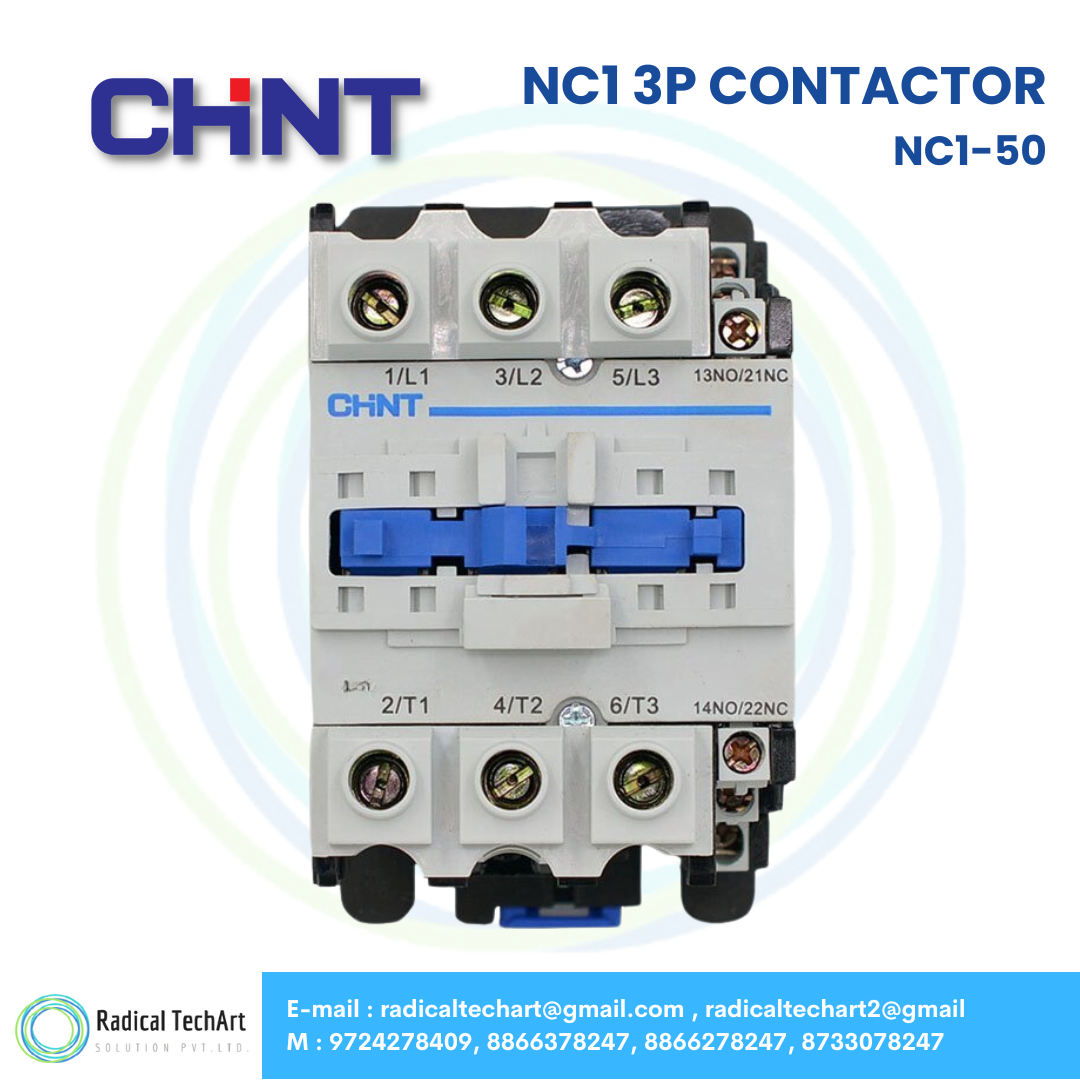

Chint NC1-50 3P Contactors

Product Summary:

Chint NC1-50 3P AC Contactor is engineered to remotely make or break circuits, offering high performance in frequent start-stop operations and overload protection when combined with a thermal relay.

Key Features:

• Rated for AC 50/60Hz, 690V, up to 95A

• 3 Pole configuration for enhanced power control

• Utilization category AC-3 & AC-4

• Certified: CE, UL, RCC, VDE, EK, UKrSEPRO, EAC, KEMA

• Standard compliant: IEC/EN 60947-4-1

• Operates in ambient temperature from -5℃ to +40℃

• Mounting category: III, with ±5° vertical inclination tolerance

• Compact & rugged for industrial environments

• Altitude operation: up to 2000m

Applications:

• Remote circuit making & breaking

• Motor start-stop control

• Circuit overload protection (with thermal relay)

• Industrial automation panels

• HVAC and machinery control systems

Product Benefits:

• High durability and performance under frequent operations

• Multiple global certifications ensure safety & reliability

• Easy to install and maintain

• Suitable for wide temperature and altitude ranges

• Versatile mounting options

FAQs:

Q1: What is the maximum current capacity of the Chint NC1-50?
A1: It supports up to 95A, suitable for medium to heavy load applications.

Q2: Can I use this contactor for motor start-stop applications?
A2: Yes, it is ideal for frequent start-up and control of AC motors.

Q3: Is it compliant with international standards?
A3: Yes, it complies with IEC/EN 60947-4-1 and holds certifications like CE, UL, VDE, and more.
