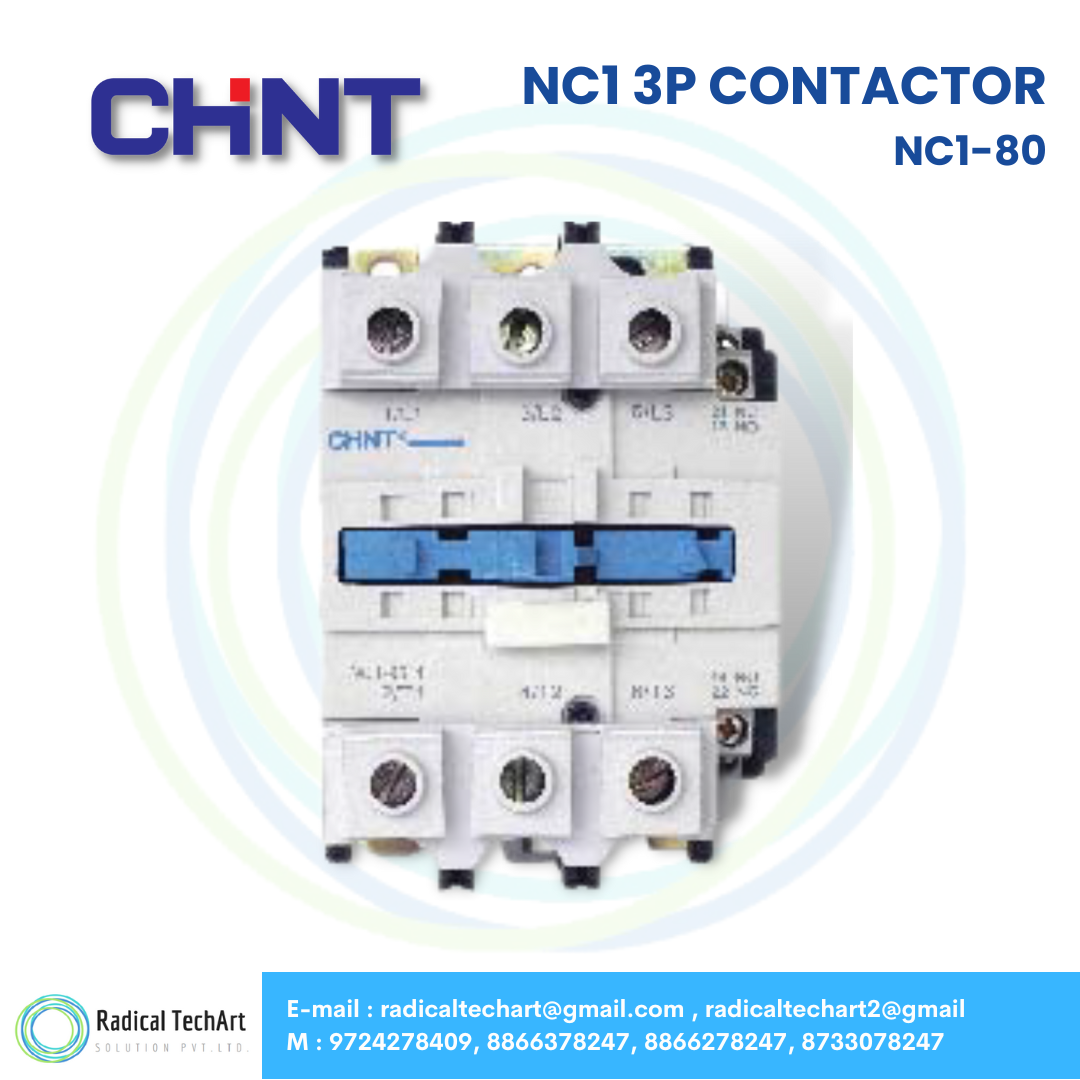

Chint NC1-80 3P Contactors
Product Summary:
Chint NC1-80 3P Contactors are robust and reliable switching devices designed for controlling electric motors, lighting, heating, and capacitor banks in industrial environments.
Key Features:
Rated current up to 95A at 690V AC
Complies with IEC/EN 60947-4-1 standards
Supports AC-3 & AC-4 utilization categories
Compatible with thermal overload relays for circuit protection
Wide ambient temperature range: -5℃ to +40℃
Mounting flexibility with ≤ ±5° inclination
Certifications: CE, KEMA, UL, RCC, VDE, EK, UKrSEPRO, EAC
Applications:
Remote switching of AC motor circuits
Overload protection when combined with thermal relays
Frequent starting/stopping of motors
Control of lighting and heating systems
Product Benefits:
High reliability in industrial operations
Compact size with powerful performance
Certified safety and compliance for global markets
Efficient operation in harsh environmental conditions
Reduces downtime with quick and stable contact action
FAQ:
Q1. What is the rated current capacity of the Chint NC1-80?
A1. It supports up to 95A at 690V AC for high-power applications.
Q2. Can it be used for frequent motor start-stop operations?
A2. Yes, it is designed for AC-3 and AC-4 utilization, ideal for frequent operations.
Q3. Is this contactor compatible with overload protection?
A3. Yes, it can be assembled with a thermal overload relay for circuit protection.
