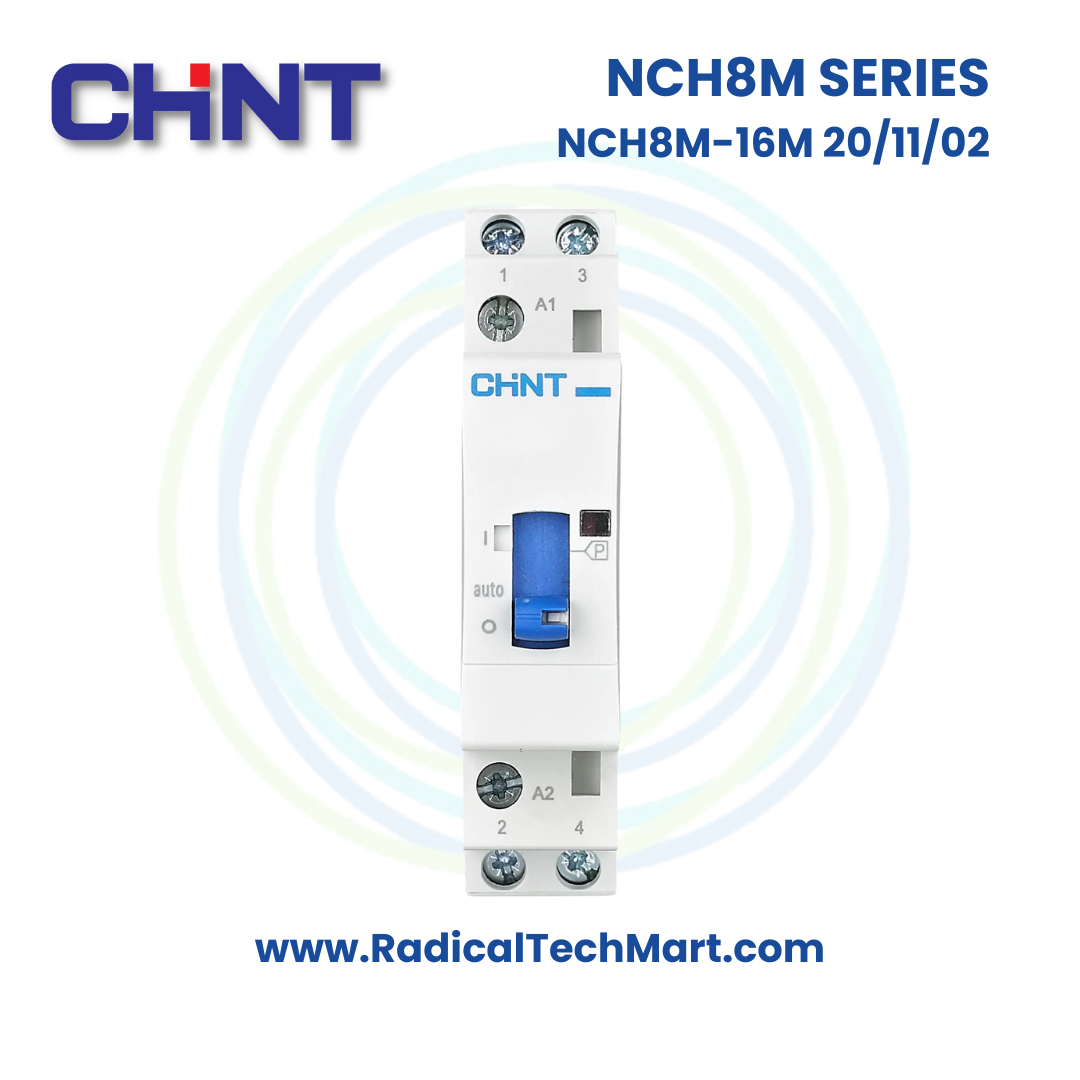

Chint NCH8-16M 20/11/02 Contactor

Product Summary:

The Chint NCH8-16M 20/11/02 is a modular AC contactor built for both manual and remote operations in residential, commercial, and industrial applications. With a rated voltage of up to 400V and current rating of 16A, it's ideal for controlling non-inductive or low-inductive loads such as appliances and resistance furnaces.

Key Features:

• Rated for 50/60Hz, 400V systems

• Supports current ratings up to 16A

• Manual or remote control operation

• Multiple contact configurations: 1NO+1NC, 2NO, 2NC, 4NO

• High mechanical durability: up to 100,000 operations

• High electrical durability: up to 80,000 operations

• Compact modular DIN rail mounting (TH35-7.5)

• Operating temperature: -25°C to +70°C

• IP20 protection class

• Humidity tolerance: up to 90% at +20°C

Applications:

• Domestic appliance control

• Resistance furnace switching

• Control of low-inductive loads

• Manual switching in control circuits

• Industrial automation panels

Product Benefits:

• Reliable operation in harsh industrial environments

• Suitable for both residential and industrial setups

• Space-saving modular design for panel mounting

• Enhanced service life reduces maintenance frequency

• Easy installation on standard DIN rails

FAQs:

Q1: Can the NCH8-16M be used for inductive motor loads?
A1: No, it's designed for non-inductive or low-inductive loads like heating and lighting. Motor loads require a different category of contactor.

Q2: What is the mounting type of this contactor?
A2: It’s designed for vertical installation on TH35-7.5 standard DIN mounting rails.

Q3: Is this contactor suitable for outdoor installations?
A3: No, it has an IP20 protection rating and must be housed in a protective enclosure for outdoor use.
