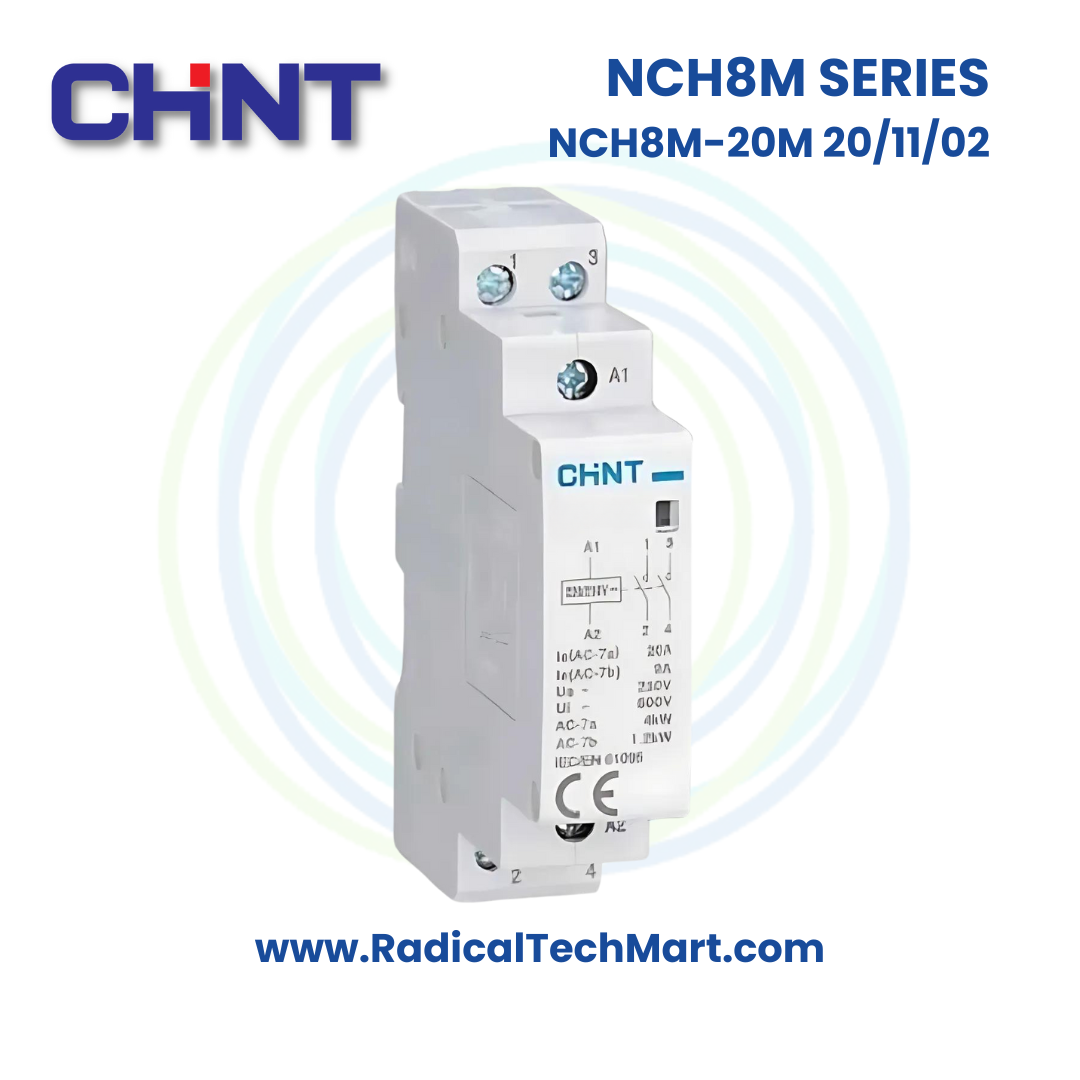

Chint NCH8-20M 20/11/02 Contactor
Reliable 2-pole modular contactor for AC control up to 20A with 230V coil voltage, IP20 rated and IEC/EN 61095 compliant.
Product Summary:
The Chint NCH8-20M 20/11/02 is a compact manual modular AC contactor ideal for residential and industrial applications, providing reliable switching for resistive and low-inductive loads.
Key Features:
Coil Voltage: 230 VAC, 50 Hz
Contact Configuration: 2 Normally Open (2NO)
Rated Current: 20A
Rated Voltage: Up to 400V
Frequency: 50/60 Hz
Protection Rating: IP20
Modular DIN rail mounting
Low power consumption
Conforms to IEC/EN 61095 standards
Compact and durable design
Applications:
Residential lighting and heating control
HVAC systems
Building automation
Domestic appliances
Resistance furnaces
Industrial panel controls
Product Benefits:
Easy manual or remote switching
Enhanced safety with IP20 protection
Long operational life and high durability
Easy to install in modular panels
Ideal for both residential and commercial use
FAQs:
Q1: Can this contactor be used for motor control applications?
A1: No, it is designed for resistive and low-inductive loads under AC-7a and AC-7b categories, not for motor or high-inductive loads.
Q2: Does this contactor include short-circuit protection?
A2: No, it does not include short-circuit protection and must be used with an appropriate external protection device.
Q3: Is this contactor suitable for outdoor installations?
A3: No, with an IP20 rating, it is suitable only for indoor applications in protected enclosures.
