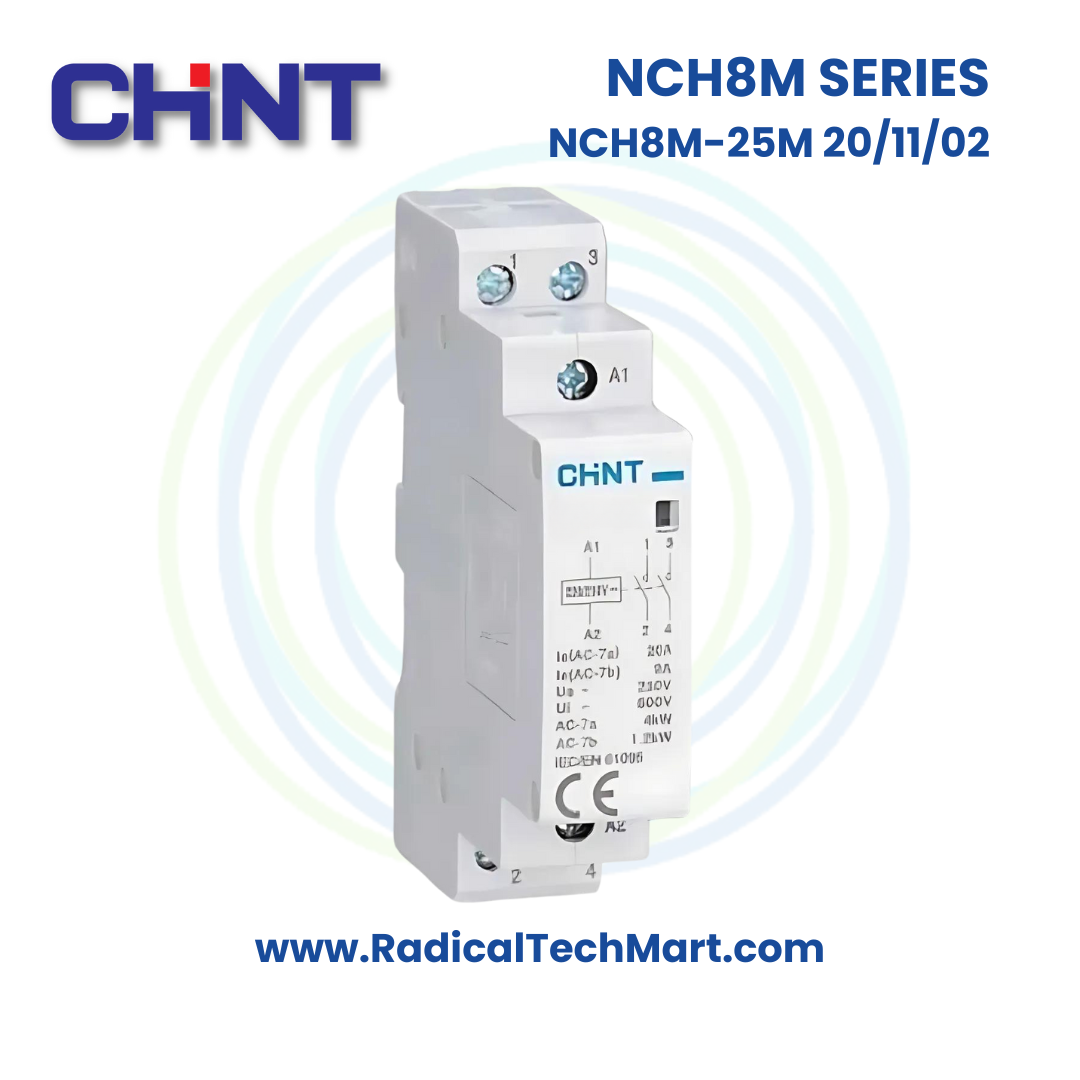

Chint NCH8-25M 20/11/02 Contactor
Modular AC contactor with 20A current rating, ideal for reliable switching of resistive and inductive loads in industrial control systems.
Product Summary:
The Chint NCH8-25M 20/11/02 is a high-performance modular AC contactor designed for manual or remote control of circuits up to 400V in industrial and residential applications. It supports AC-7a and AC-7b utilization categories for non-inductive and low-inductive loads.
Key Features:
Rated operating voltage: 230V / 400V AC
Rated current: 20A
Frequency: 50Hz / 60Hz
Control Voltage: AC 24V, 110V, 220–240V
Electrical life up to 80,000 cycles
DIN rail mountable modular design
Compact and space-saving
High-quality internal contacts ensure reliable operation
Meets IEC/EN 61095 standards
Applications:
Electrical distribution in commercial buildings
Domestic appliance control systems
Heating, ventilation, and air-conditioning (HVAC) systems
Lighting automation
Remote/manual circuit control in control panels
Product Benefits:
Easy integration in modular panels
Long service life reduces maintenance costs
Compact footprint saves space in control cabinets
Handles both resistive and inductive loads
Safe and reliable switching performance
Versatile voltage control options
FAQs:
Q1: What is the current rating of the Chint NCH8-25M 20/11/02 contactor?
A1: It has a rated current of 20A, suitable for low to medium load control applications.
Q2: Can this contactor be used for motor control?
A2: Yes, it supports AC-7b category, which allows it to handle inductive loads like small motors and pumps.
Q3: Is the Chint NCH8-25M suitable for DIN rail mounting?
A3: Yes, it features a modular design specifically for DIN rail installation in electrical enclosures.
