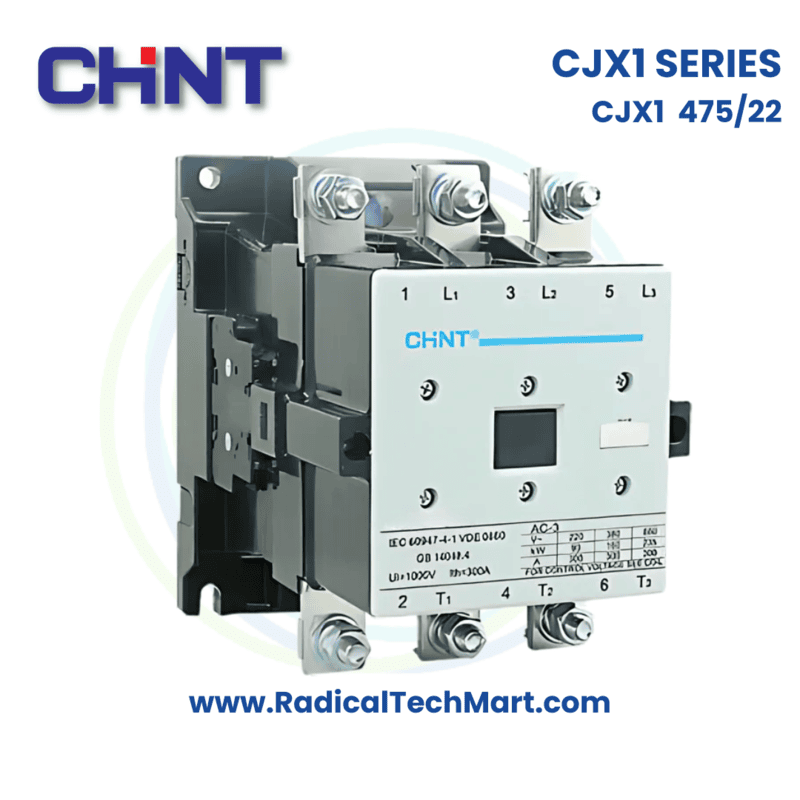

CJX1 475/22 Contactor
The Chint CJX1 475/22 Contactor is a highly efficient AC contactor designed to control the start and stop of AC motors, including reversing applications. It falls under the category of power contactors and is rated for operating currents from 9A to 475A, suitable for electrical systems with a rated operating voltage of up to 380V. The contactor is typically used in long-distance circuit making and breaking applications and can manage a range of electrical functions like motor control and protection.
The CJX1 series contactors are reliable for environments with temperatures between -5°C and +40°C and have an IP00 protection class. It is designed for high electrical and mechanical life, with over 10,000 electrical operations under AC-3 conditions and 100,000 mechanical operations. The contactor is available in multiple configurations, with versions supporting screw or rail mounting for flexibility in installation
- CJX1 series AC contactor is mainly used in AC 50Hz or 60Hz, where the rated insulation voltage is within 660V~1000V, and the rated operational current is 9A~820A while the rated operational voltage is 380V for utilization type AC-3.
- The contactor functions for switching on and off the circuit remotely, and is applicable for control of starting, stopping and rotating operations of AC motor.
