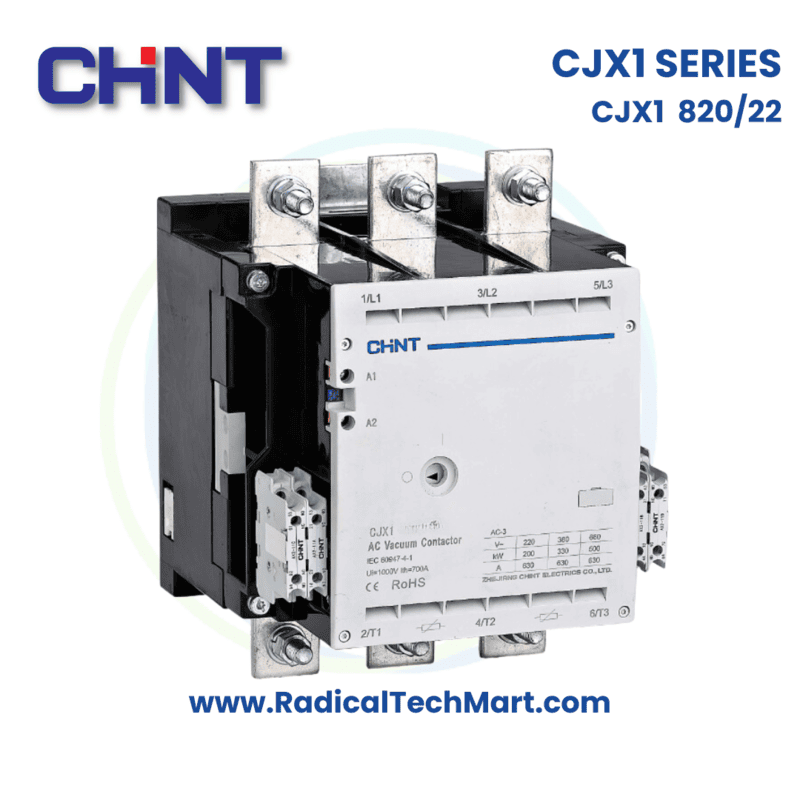

CJX1 820/22 Contactor
₹158,280.00
The Chint CJX1-820/22 is a highly reliable AC contactor designed for electrical systems operating under Category AC-3, specifically for controlling the start, stop, and reverse rotation of AC motors. It has a rated operating current of 22A at 380V and a rated insulation voltage of 690V, making it suitable for a variety of industrial applications. With a coil voltage of 380V, it ensures long-distance control of electrical circuits.
Key features of the Chint CJX1-820/22 include:
- Rated Voltage: 380V (AC-3)
- Rated Operating Current: 22A
- Insulation Voltage: 690V
- Rated Frequency: 50/60 Hz
- Mechanical Life: 1 million cycles
- Electrical Life: 100,000 cycles under normal conditions
- Protection Class: IP00, suitable for clean, dry indoor environments
- Mounting: Suitable for rail or screw mounting, making it versatile for different installation requirements.
Product Details
- CJX1 series AC contactor is mainly used in AC 50Hz or 60Hz, where the rated insulation voltage is within 660V~1000V, and the rated operational current is 9A~820A while the rated operational voltage is 380V for utilization type AC-3.
- The contactor functions for switching on and off the circuit remotely, and is applicable for control of starting, stopping and rotating operations of AC motor.
