Compression Spring Thermocouple Sensor

A. Product Overview

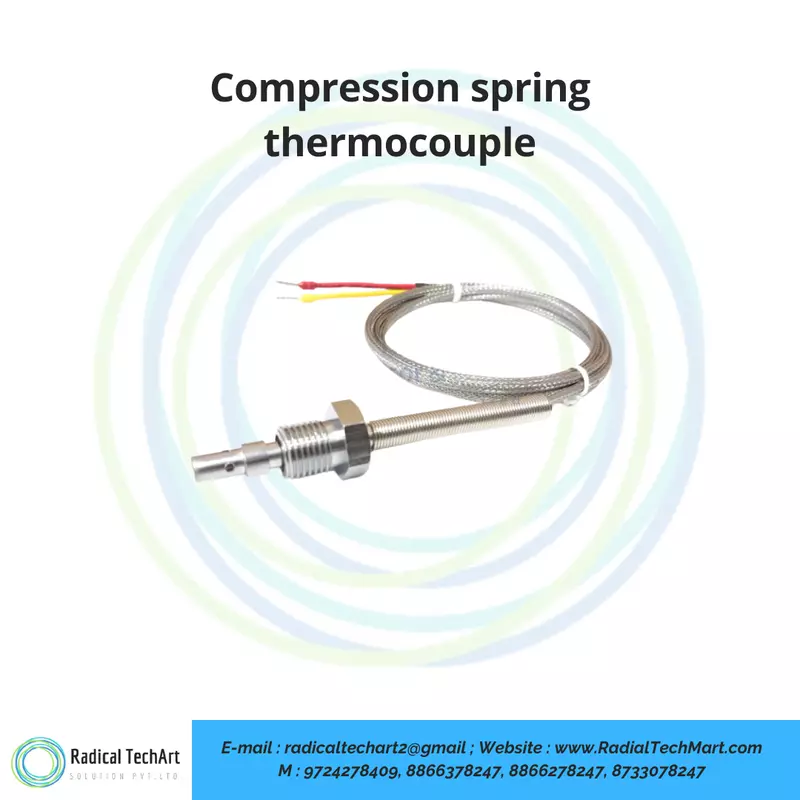

Compression Spring Thermocouple Sensor is a temperature sensing device designed for industrial temperature measurement and control. It is commonly used in plastic processing machines, injection molding machines, extrusion machines, heating barrels, dies, molds, and other high-temperature machinery.

The sensor is fitted with a compression spring that helps maintain continuous contact between the thermocouple tip and the measuring surface. This improves temperature sensing accuracy and helps the connected temperature controller receive stable readings.

This thermocouple is available in different types such as Type K, Type J, and Type E. It is suitable for temperature ranges from 35°C to 600°C, making it useful for many industrial heating and process applications.

Technical Specifications

Type: K, J, E
Temperature Range: 35°C to 600°C
Tip Size: Diameter 4 mm to 6 mm and Length 20 mm to 100 mm
Slot: 12.5 mm width and double slot
Wire Length: 0.5 meter to 10 meter
Adaptor: M12 x 1.5, 30 mm to 120 mm
Application: Plastic machinery, injection molding, extrusion barrel, heaters, dies, and industrial process equipment

B. Working Principle

A compression spring thermocouple works on the thermoelectric principle. It is made using two different metal wires joined at one end. When this joined tip is exposed to heat, it generates a small voltage signal according to the temperature.

This signal is sent to a temperature controller, indicator, or monitoring system. The controller then converts the signal into a temperature reading.

In this sensor, the compression spring helps push the thermocouple tip against the machine surface or barrel. This firm contact allows better heat transfer from the surface to the sensor tip, giving faster and more accurate temperature readings.

One end of the thermocouple is installed on the machinery surface, injection barrel, extrusion barrel, heater, mold, or die using a compression fitting. The other end is connected to a temperature controller or monitoring instrument.

C. Why It Is Used

Compression Spring Thermocouple Sensor is used because many industrial machines need accurate and continuous temperature monitoring. In plastic machinery, temperature control is very important because incorrect temperature can affect product quality, material flow, cycle time, and machine performance.

This sensor is useful because:

It provides better contact with the measuring surface
It gives fast temperature response
It helps maintain stable temperature control
It is suitable for high-temperature industrial areas
It can withstand harsh working conditions
It is easy to install with compression fitting
It works with temperature controllers and monitoring systems
It is suitable for plastic processing machinery and heating equipment

In injection molding and extrusion machines, the barrel temperature must be controlled properly. A compression spring thermocouple helps measure this temperature accurately so that the controller can maintain the required process temperature.

D. Suitable Buyers

This product is suitable for:

Plastic machinery manufacturers
Injection molding machine users
Extrusion machine manufacturers
Plastic processing plants
Packaging machine manufacturers
Heater and die manufacturers
Mold and tool room users
Industrial automation suppliers
Temperature controller panel manufacturers
OEM machine builders
Maintenance teams in factories
Process industry users
Industrial instrument dealers and traders
Electrical panel builders
Service engineers and machine retrofit teams

FAQ

1. What is a Compression Spring Thermocouple Sensor?

A Compression Spring Thermocouple Sensor is a temperature sensor used for industrial temperature measurement. It has a spring-loaded design that keeps the sensor tip in proper contact with the measuring surface for accurate temperature reading.

2. Where is this thermocouple commonly used?

It is commonly used in plastic machinery, injection molding machines, extrusion machines, heater barrels, molds, dies, packaging machines, and industrial process equipment.

3. Which thermocouple types are available?

This sensor is available in Type K, Type J, and Type E depending on the application and temperature requirement.

4. What is the temperature range of this sensor?

The temperature range is 35°C to 600°C.

5. Why is spring loading important in this thermocouple?

The spring helps maintain firm contact between the thermocouple tip and the surface. This improves heat transfer, gives faster response, and helps achieve more accurate temperature measurement.

6. Can this sensor be used with a PID temperature controller?

Yes, it can be used with PID temperature controllers, temperature indicators, display instruments, and industrial monitoring systems.

7. Is this sensor suitable for plastic extrusion machines?

Yes, it is suitable for plastic extrusion machines because it can measure barrel temperature accurately and help maintain stable process control.

8. What wire length options are available?

Wire length options are available from 0.5 meter to 10 meter.

9. What adaptor size is available?

The adaptor size is M12 x 1.5, with available lengths from 30 mm to 120 mm. Other sizes may also be available as per requirement.

10. Who should buy this product?

This product should be purchased by plastic processing industries, machine manufacturers, OEMs, maintenance teams, automation suppliers, panel builders, and industries that need reliable temperature monitoring in machinery.
