Product Details
Key Features
Auto/Manual Ranging, Data Hold, NCV.
APO, Temperature, Frequency, Max Hold.
Diode Test, Resistance, Duty Cycle.
Continuity Buzzer, Backlight, Trms.
Product Specifications
Brand | |
AC Current Accuracy | 6 A: ± (3.0%+20 digits) 60 A: ± (3.0%+5 digits) 600 A: ± (3.0%+8 digits) |
AC Current Range | 6A/60A/600A |
AC Voltage Accuracy | ± (1.5%+5 digits) on all ranges |
AC Voltage Range | 6V/60V/600V |
Battery Type | AAA |
Battery Voltage | 1.5 V |
Customer Care Number | 0091-22-24179467,24149657 |
DC Voltage Accuracy | 6-60V: ± (0.8%+3 digits) 600V: ± (1.0%+3 digits) |
DC Voltage Range | 6V/60V/600V |
Display | 35/6 digit 6600 counts LCD Display |
Frequency Accuracy | ± (0.8%+3 digits) on all ranges |
Frequency Range | 10Hz/100Hz/1KHz/100KHz/1MHz/10MHz |
Item Code | R-2070C |
Items in Pack | 1 Piece |
Number of Batteries | 2 |
Resistance Accuracy | 6KΩ-6MΩ: ± (1.0%+3 digits) 60MΩ: ±(1.5%+3 digits) |
Resistance Range | 6KΩ/60KΩ/600KΩ/6MΩ/ 60MΩ |
Temperature Accuracy | ± (1.0%+3 digits) |
Temperature Range | 0-600 deg C |
Warranty | 1 Year |
Country of origin | India |
Manufacturer Details | Spark instruments, 102 City Apartment 127 Saraswati Nagar University Road , Gwalior, Madhya Pradesh-474002, India , Phone: +91-8448233444 |
Packer Details | Spark instruments, 102 City Apartment 127 Saraswati Nagar University Road , Gwalior, Madhya Pradesh-474002, India , Phone: +91-8448233444 |

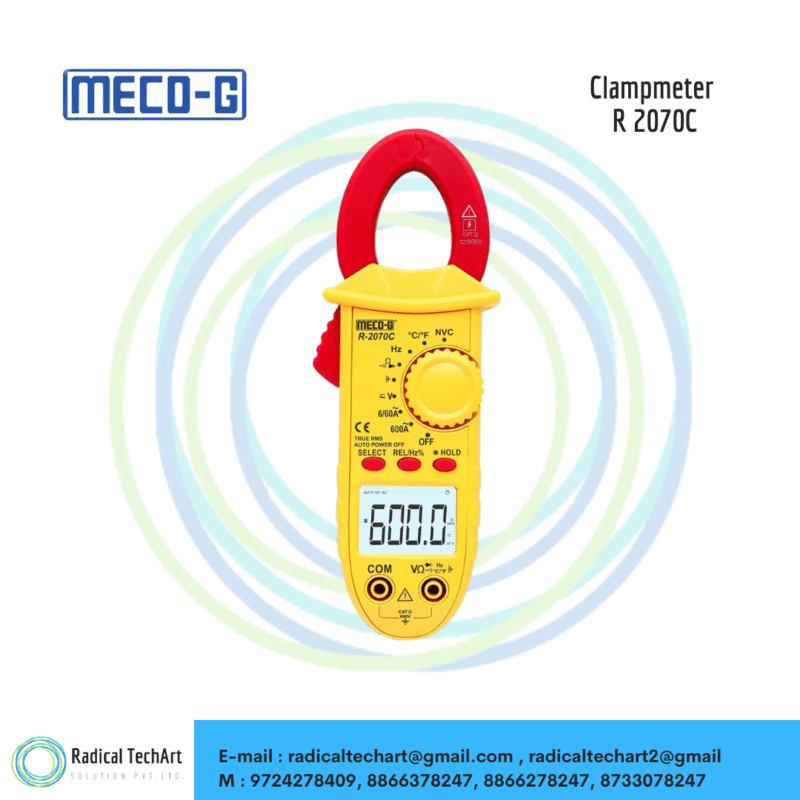

Common/Generic Name | Clamp Meter |
Dimensions LxWxH | 247x90x40 mm |
Weight | 425 g |
