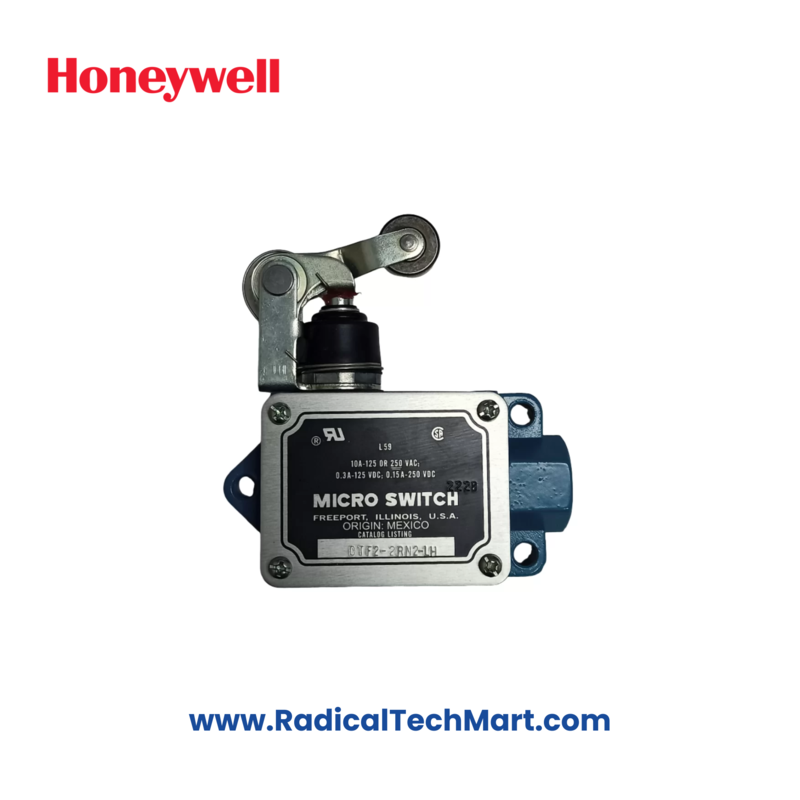

DTF2-2RN2-LH Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model no. | DTF2-2RN2-LH |
| Description | High capacity enclosed switch |
| Actuator Type | Left |
| Conduit | 1/2 in-14 NPT |
| Switching options | DPDT field adjustable 360° horizontally and 225° vertically |
| Sealing | NEMA 1, 3, 4 and 13 |
| Operating temperature | -32 °C to 71 °C [-25 °F to 160 °F] (standard) |
| Housing material | Zinc die-cast |
| Approvals | UL, CSA |
| Pretravel | 5,56 mm [0.219 in] |
| Different. travel | 0,51 mm [0.020 in] |
| Overtravel | 6,35 mm [0.250 in] |
| Operating force | 8,90 N [2 lb] |
