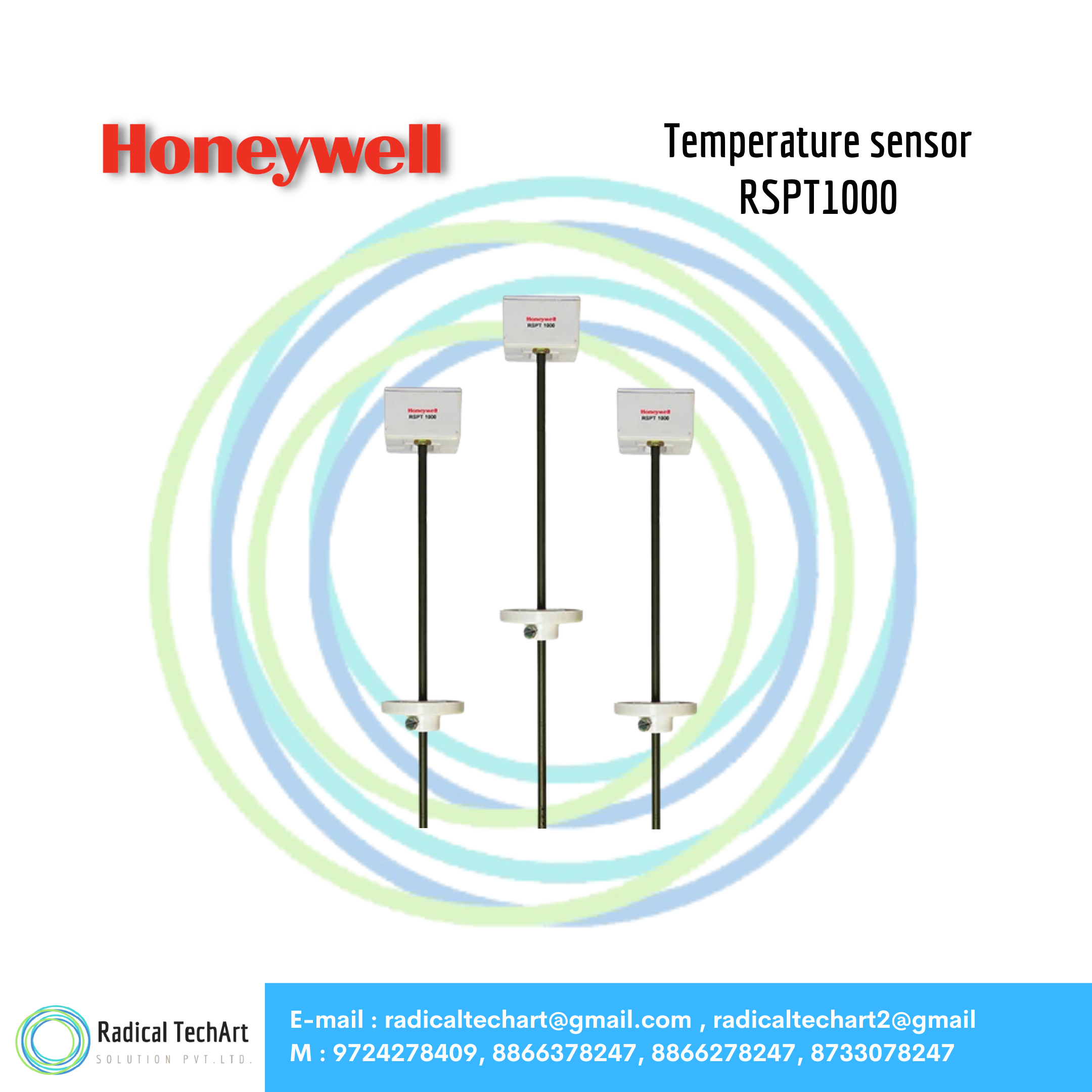

Honeywell RSPT1000 Duct Mount Temperature Sensor

A. Product Overview

The Honeywell RSPT1000 is a duct-mounted temperature sensor used for reliable temperature measurement inside air ducts. It comes with a Pt1000 sensing element, which provides stable resistance-based temperature measurement for HVAC and ventilation systems.

This sensor is designed for duct installation and is commonly used in air handling units, ventilation ducts, air conditioning systems and building management systems. It helps monitor air temperature in discharge ducts, return ducts and outside air ducts.

The sensor has an IP54 protection standard for the terminal box and tube, making it suitable for HVAC environments where dust and light moisture protection are required. The terminal box is made from flame-retardant plastic material and is designed for safe and durable installation.

B. Working Principle

The Honeywell RSPT1000 works on the principle of resistance temperature detection using a Pt1000 sensing element.

A Pt1000 sensor has a nominal resistance value of 1000 ohms at 0°C. As the temperature changes, the resistance of the Pt1000 element also changes. The connected controller, transmitter or building automation system reads this resistance change and converts it into a temperature value.

The Pt1000 element used in the RSPT1000 has a sensitivity of 3.85 ohms per Kelvin. This means the resistance changes in a predictable way as temperature increases or decreases. Because of this stable relationship, the sensor provides accurate and repeatable temperature measurement in duct air applications.

C. Why It Is Used

The Honeywell RSPT1000 is used to measure air temperature inside ducts in HVAC and ventilation systems. Accurate duct temperature measurement is important for maintaining comfort, energy efficiency and process control.

It is used because it helps HVAC systems monitor the actual air temperature in discharge air, return air and outside air ducts. This data helps controllers regulate heating, cooling, ventilation and air handling performance.

The sensor is suitable for applications where dependable duct temperature feedback is required for automation, monitoring and control. Its Pt1000 element provides stable temperature measurement, while the duct-mount design makes it easy to install directly into ventilation and air conditioning ducts.

D. Suitable Buyers

This Honeywell duct mount temperature sensor is suitable for:

HVAC contractors and system integrators.

Building automation companies.

AHU manufacturers and HVAC panel builders.

Facility management teams.

Commercial building maintenance teams.

Industrial plant maintenance engineers.

Electrical and instrumentation contractors.

OEMs working on ventilation and air conditioning systems.

Purchase teams looking for Honeywell HVAC temperature sensors.

Projects requiring duct temperature measurement in BMS and HVAC systems.

Key Specifications

Model: Honeywell RSPT1000.

Sensor Type: Pt1000 temperature sensor.

Nominal Value: 1000 ohms at 0°C.

Sensitivity: 3.85 ohms per Kelvin.

Application: Duct temperature measurement.

Installation Type: Duct mounting.

Measured Air Types: Discharge air, return air and outside air.

Transport and Storage Temperature: -40 to 80°C.

Humidity Range: 5 to 95 percent relative humidity, non-condensing.

Protection Standard: IP54 as per EN60529.

Terminal Box Material: Flame-retardant plastic.

Flame Retardant Rating: V1 as per UL94.

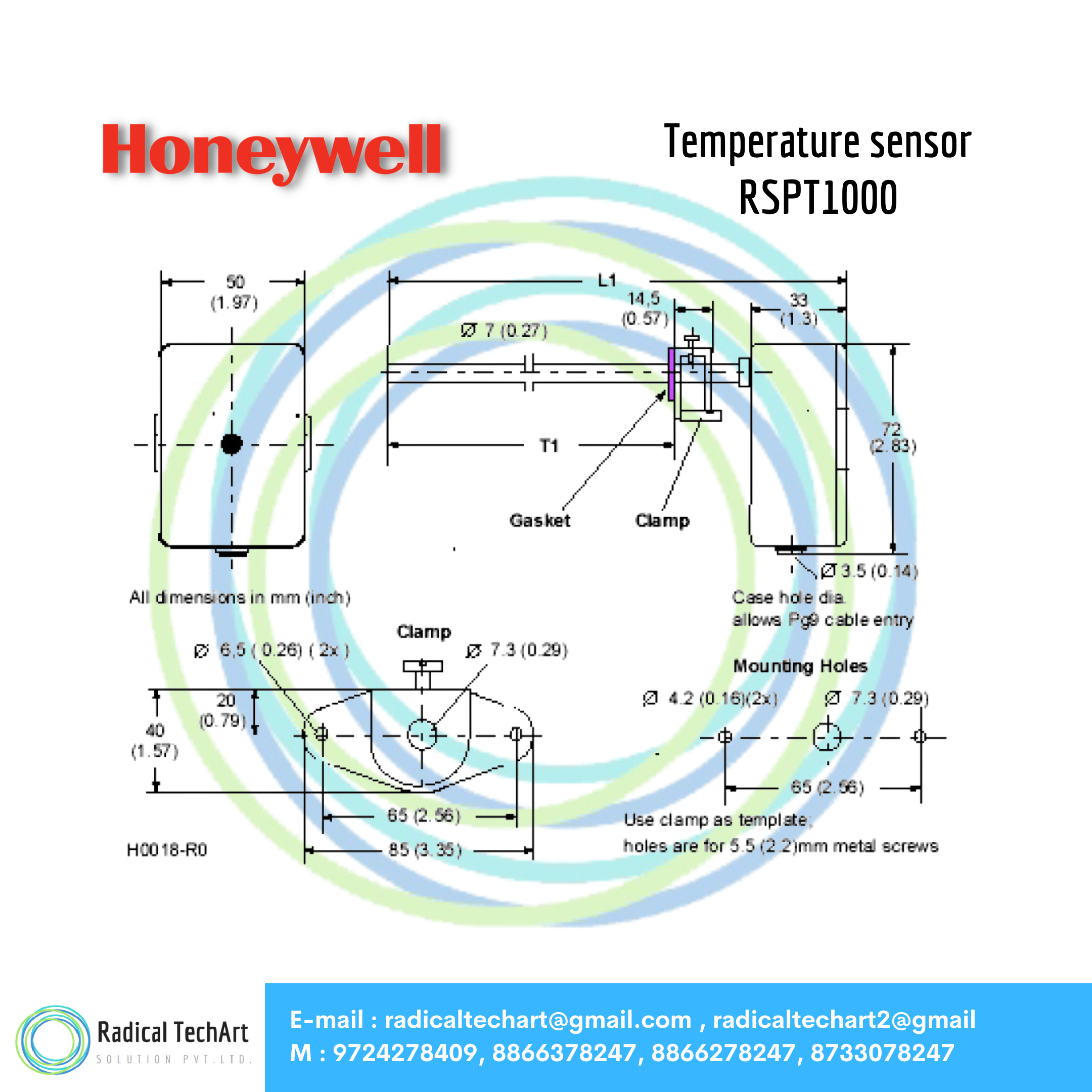

Terminal Box Dimensions: 40 x 50 x 72 mm.

Response Time: Approximately 30 seconds at air velocity of 5 m per second.

Cable Entry: PG9 cable entry.

Accessories: Sealing rings for housing supplied with the sensor.

Applications

HVAC duct temperature monitoring.

AHU temperature measurement.

Ventilation system temperature monitoring.

Return air temperature measurement.

Discharge air temperature measurement.

Outside air temperature measurement.

Air conditioning duct temperature control.

Commercial building automation.

Industrial ventilation systems.

BMS temperature input applications.

FAQ

1. What is the Honeywell RSPT1000 used for?

The Honeywell RSPT1000 is used for duct temperature measurement in ventilation, air conditioning, AHU and HVAC systems. It measures discharge air, return air or outside air temperature.

2. What type of sensing element is used in the RSPT1000?

The Honeywell RSPT1000 uses a Pt1000 sensing element with a nominal resistance of 1000 ohms at 0°C.

3. Is the Honeywell RSPT1000 suitable for HVAC applications?

Yes, the RSPT1000 is specifically designed for HVAC and ventilation duct applications. It is suitable for air handling units, duct monitoring and building automation systems.

4. Can this sensor measure return air temperature?

Yes, the Honeywell RSPT1000 can be used to measure return air temperature in HVAC ducts.

5. Can this sensor be used for outside air temperature measurement?

Yes, the RSPT1000 can be used for outside air temperature measurement when installed in a suitable duct or ventilation path.

6. What is the protection rating of the Honeywell RSPT1000?

The sensor has an IP54 protection rating for the terminal box and tube as per EN60529.

7. What is the response time of the RSPT1000?

The response time is approximately 30 seconds at an air velocity of 5 metres per second.

8. What is the humidity range for this sensor?

The sensor is suitable for 5 to 95 percent relative humidity in non-condensing conditions.

9. Who should buy the Honeywell RSPT1000?

This sensor is suitable for HVAC contractors, AHU manufacturers, system integrators, BMS companies, facility maintenance teams and industrial automation buyers.

10. Why choose a Pt1000 duct temperature sensor?

A Pt1000 duct temperature sensor provides stable, accurate and repeatable resistance-based temperature measurement, making it suitable for HVAC control and building automation systems.
