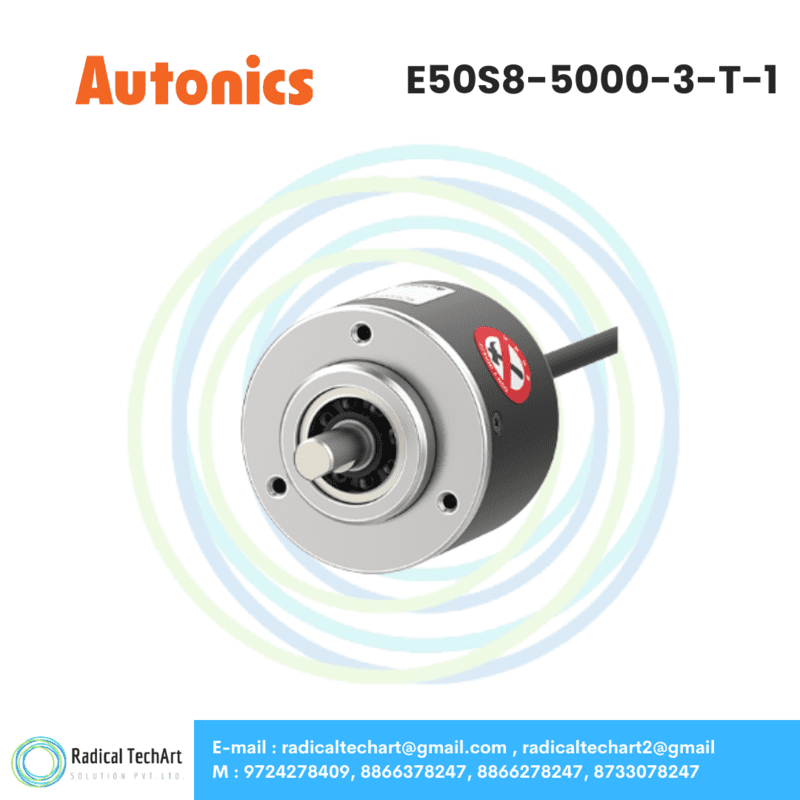

E50S8-5000-3-T-1 Autonics
₹5,000.00 ₹6,000.00
- Shaft outer diameter : Ø8mm
- Max. response frequency : 300kHz
- Max. allowable revolution : 5000rpm
- Starting torque : Max. 70gf.cm(max. 0.00686N.m)
- Resolution : 5000PPR
- Control output : Totem pole
- Power supply : 5-24VDC
- Connection type : Axial cable type
- Protection structure : IP50 (IEC standard)
Product Details
| Shaft outer diameter | Ø8mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 5000PPR |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 5-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
