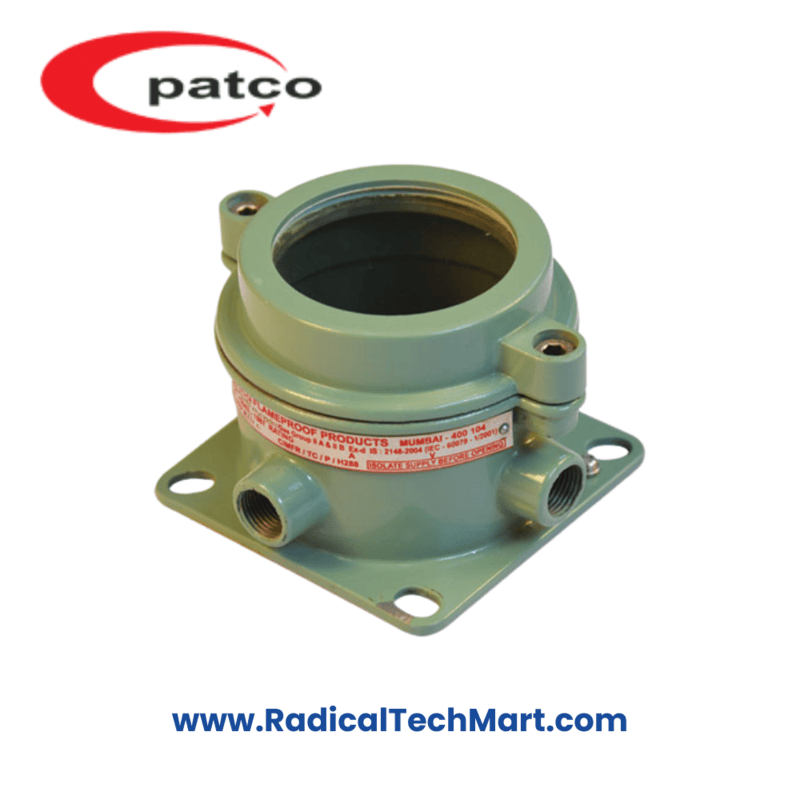

Patco FLP/WP Direct Entry – Instrument Enclosure

Product Summary:
The Patco FLP/WP Direct Entry Instrument Enclosure is specially designed to house temperature or process indicators in hazardous environments. Built from LM6 aluminum and IP65 rated, it provides safe, durable, and visible protection with a 74 mm diameter glass viewing window.

Key Features:

• Catalogue No: PFP/CS/10

• Explosion protection: IS/IEC-60079-1:2007 compliant

• Zone Classification: Zone 1 & Zone 2

• Gas Group: I, IIA, IIB

• IP Rating: IP-65 (IS/IEC60529-2001)

• Construction Material: Die Cast Aluminum Alloy LM6

• Glass Window: 74 mm diameter for clear display visibility

• Paint: Epoxy Polyester Powder Coated

• Cable Entry: 2 or 4 Nos. M20 (3/4” ET)

• Earth Terminals: 1 Internal, 2 External

• Stainless Steel Hardware for durability

Applications:

• Hazardous area instrumentation housing

• Temperature or pressure indicator enclosure

• Chemical, pharmaceutical, and oil & gas sectors

• Refinery and petrochemical plant installations

• Control panel integration for flameproof environments

Product Benefits:

• Safe for use in explosive gas zones

• IP65 ensures weatherproof and dust-tight enclosure

• Glass window allows real-time monitoring without opening the box

• Corrosion-resistant and rugged construction

• Flexible cable entry options for versatile installation

FAQs:

Q1. Can this enclosure be used with process indicators?
Yes, it is ideal for housing temperature or pressure indicators with visibility through the glass window.

Q2. Is this enclosure IP65-rated?
Yes, it offers IP65 ingress protection, suitable for harsh industrial and outdoor environments.

Q3. Is it compliant for use in Zone 1 and 2 classified areas?
Absolutely, it complies with IS/IEC60079-1:2007 and is approved for Zone 1 & 2 applications.
