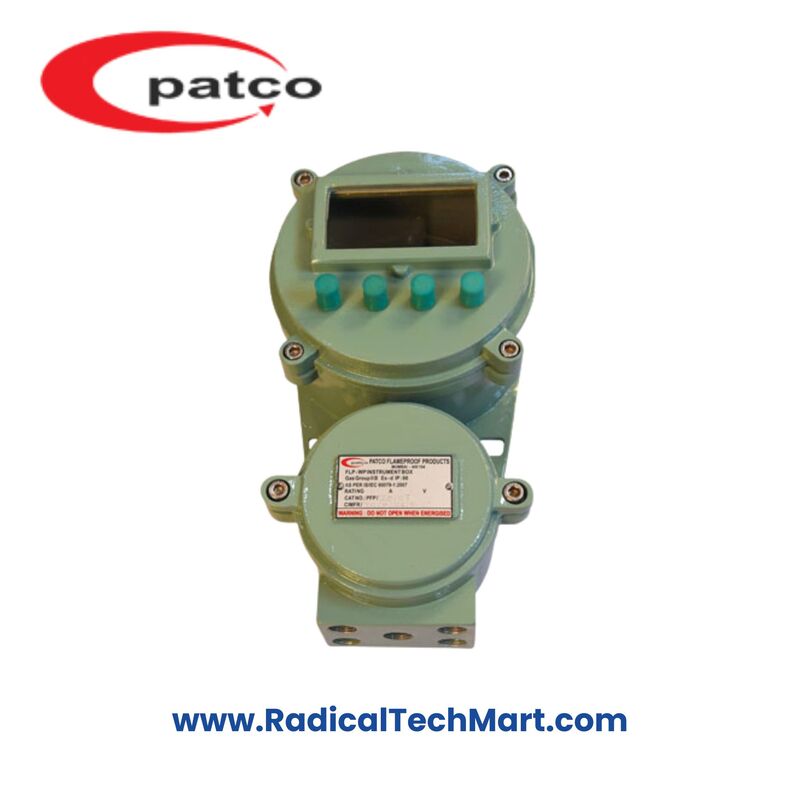

Patco FLP/WP Instrument Enclosure with 100x50 Glass Window & 4-5 Push Buttons

Product Summary:
The Patco FLP/WP Instrument Enclosure is designed for safe control operations in hazardous areas (Zone 1 & 2). Built from durable die-cast LM6 aluminium with IP65 protection, it features a 100x50 mm glass window and 4–5 green push buttons with 10A contact elements for user interface flexibility.

Key Features:

• Catalogue No: PFP/IB/08

• Explosion Protection: IS/IEC-60079-1:2007

• Zone Classification: Zone 1 & 2

• Gas Groups: I, IIA, IIB

• Ingress Protection: IP-65 as per IS/IEC60529-2001

• Material: Die Cast Aluminium Alloy LM6

• Glass Window: 100 x 50 mm toughened

• Push Buttons: 4–5 Green Push with 10A NO contacts

• Terminal Block: 12-way clip-on rail or strip type

• Cable Entry: 3–5 Nos. for M20 (¾” ET)

• Coating: Epoxy Polyester Powder

• Earthing: 1 Internal & 2 External

• Hardware: Stainless Steel corrosion-resistant fittings

Applications:

• Chemical & Petrochemical Plants

• Oil & Gas Processing Units

• Refinery and Pipeline Projects

• Hazardous Zone Control Stations

• Pharmaceutical Industries

Product Benefits:

• Safe & certified for explosive gas atmospheres

• Toughened window provides visual monitoring

• Easy control via push buttons for field operation

• Corrosion-resistant & weatherproof design

• Customizable terminal and cable entries

FAQs:

Q1. Is this enclosure certified for explosive environments?
Yes, it complies with IS/IEC-60079-1:2007 and is suitable for Zone 1 & 2 hazardous areas.

Q2. What is the purpose of the 100x50 mm glass window?
The window enables visual monitoring of internal instruments without opening the box, enhancing safety.

Q3. Can I customize the number of cable entries or terminal blocks?
Yes, the unit supports 3–5 cable entries and 12-way terminal configuration, customizable on request.
