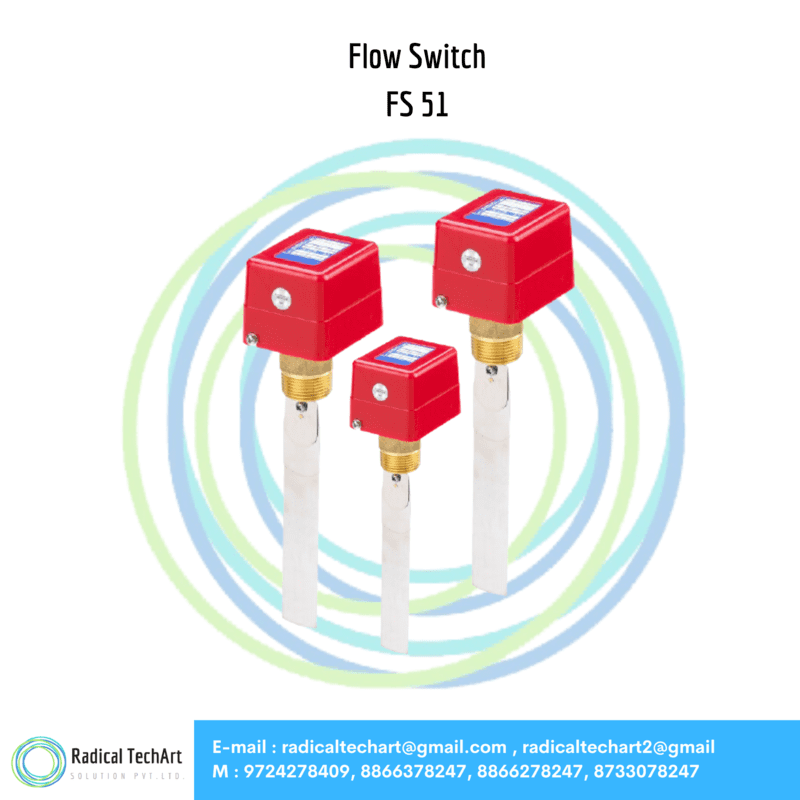

Flow Switch
₹900.00 ₹1,200.00
Features
- Max liquid pressure: 1 MPa, can be used in multiple applications.
- There are 3 stainless steel paddles, can be used in 25 to 75mm diameter pipe.
- Number of paddles is changeable and length of paddle is trim-able according to customer requirements. With additional 6''paddle, FS series liquid flow switch can be used in 100 to 150mm diameter pipe.
- Adjustable flow setting, Users can set the flow value according to their requirements.
- For user convenience, FS52 flow switch has large room for wiring. FS51/FS52 can also be provided with stainless steel connection, which is suitable for ammonia and other medium
Product Details
Performance Parameter
- Electric load : AC250V 10A
- Max working pressure: 10.34Bar
- Flow temperature: 0-120℃
- Environment temperature: 0-60℃
- The endurance of bellows: 500000 cycles Ingress
- Protection: IP53
