A. Product Overview

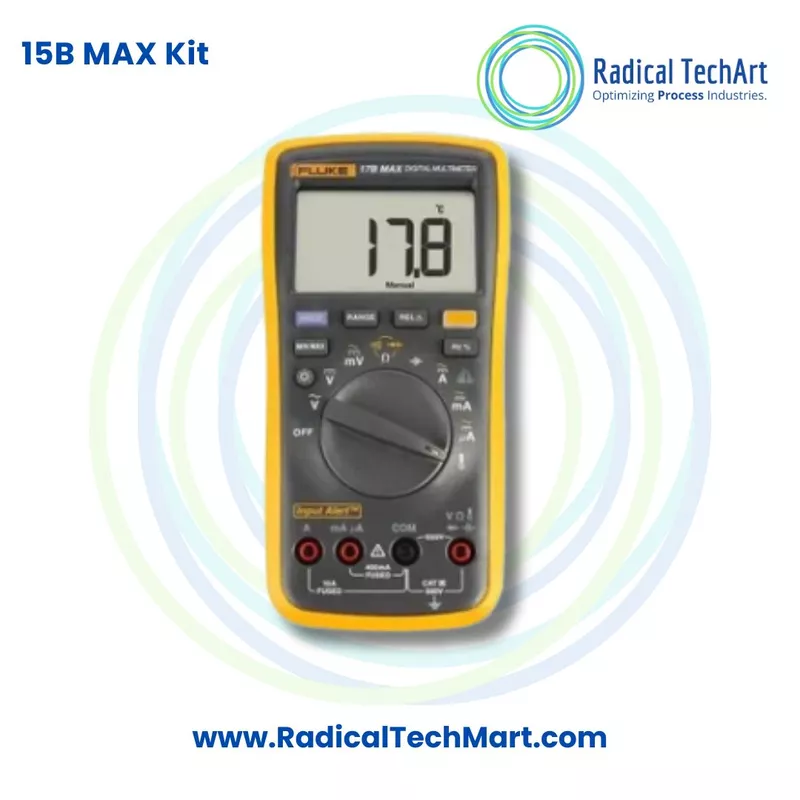

The Fluke 15B MAX Kit Digital Multimeter is a portable electrical testing instrument designed for electricians, maintenance technicians and electronics professionals. It combines essential voltage, current, resistance, capacitance, continuity and diode testing functions in one handheld meter.

The 6000-count LCD provides clear measurement readings and updates approximately three times per second. Its backlight helps users read measurements inside control panels, electrical cabinets and other areas with limited lighting.

The multimeter incorporates an Input Alert feature that provides an audible and visual warning when the test leads are connected to an incorrect input terminal for the selected measurement function. This feature helps reduce connection mistakes during electrical testing.

The meter can also be awakened from sleep mode by pressing any button, allowing technicians to resume measurements quickly during fieldwork.

Main Features

• 6000-count backlit digital display
• AC voltage measurement up to 1000 V
• DC voltage measurement up to 1000 V
• AC current measurement up to 10 A
• DC current measurement up to 10 A
• Resistance measurement up to 40 MΩ
• Capacitance measurement up to 2000 µF
• Continuity testing with audible indication
• Diode testing
• Audible and visual Input Alert
• CAT III 600 V safety rating
• IP40 ingress protection
• Fused current measurement inputs
• Minimum battery life of approximately 500 hours
• TL75 general-purpose test leads
• TL31 extra-slim test leads for circuit-board testing

The Fluke 15B MAX Kit includes TL75 test leads with two protective caps, TL31 extra-slim test leads with two protective caps, two AA batteries and safety information. The ordering information on page 6 of the technical document confirms the complete kit contents.

B. Working Principle

The Fluke 15B MAX measures electrical values by receiving a signal through its test leads, processing that signal through internal measurement circuits and displaying the result digitally on its LCD.

The user selects the required measurement function using the rotary dial and connects the test leads to the appropriate terminals.

Voltage Measurement

For AC or DC voltage testing, the probes are placed across two points in a circuit. The multimeter detects the electrical potential difference between those points and displays the measured voltage.

The Fluke 15B MAX supports AC and DC voltage ranges up to 1000 V. Its AC voltage range is specified for signals between 40 Hz and 500 Hz.

Current Measurement

For current measurement, the multimeter is connected in series with the circuit so that the electrical current passes through the meter.

It provides separate input terminals for low current and high current measurement. The current inputs are fuse-protected, including protection for the milliampere input and the 10 A input.

Resistance Measurement

For resistance testing, the circuit must be switched off. The multimeter applies a small internal test signal through the connected component and calculates its resistance from the resulting electrical response.

It can measure resistance from low-ohm values up to 40 MΩ.

Continuity Testing

During continuity testing, the multimeter checks whether an uninterrupted electrical path exists between two points. An audible indication helps technicians locate broken wires, faulty switches, open fuses and loose connections without continuously watching the display.

Capacitance Measurement

For capacitance testing, the meter internally charges and discharges the connected capacitor. It analyses the electrical response and displays the measured capacitance.

The Fluke 15B MAX supports capacitance measurement ranges up to 2000 µF.

Diode Testing

In diode mode, the meter applies a small test voltage across the semiconductor junction. It displays the forward voltage drop, helping users check diodes and identify open or shorted semiconductor components.

Input Alert Operation

The Input Alert system compares the selected rotary-switch function with the terminal in which the test lead is connected. When the lead position does not match the selected measurement mode, the meter generates an audible and visual warning.

C. Why It Is Used

The Fluke 15B MAX Kit is used to perform routine electrical measurements, identify faults and confirm whether electrical components and circuits are operating correctly.

It reduces the need to carry separate instruments for voltage, current, resistance, capacitance, continuity and diode testing.

Common applications include:

• Testing AC and DC power supplies
• Checking electrical panels and distribution boards
• Measuring battery and power-adapter voltage
• Testing motors, contactors, relays and switches
• Checking control-panel wiring
• Measuring current consumed by electrical loads
• Finding open circuits and damaged wires
• Checking cable continuity
• Testing fuses and circuit connections
• Measuring resistor values
• Testing capacitors
• Checking diodes and semiconductor components
• Troubleshooting printed circuit boards
• Inspecting industrial machines and electrical equipment
• Performing preventive electrical maintenance
• Supporting electronics repair and servicing

The TL75 test leads are suitable for routine electrical measurements in panels and equipment. The TL31 extra-slim test leads provide improved access to small components, narrow terminals and closely spaced points on printed circuit boards. Page 2 of the product document visually demonstrates the fine probe tips being used on electronic components.

D. Suitable Buyers

The Fluke 15B MAX Kit is suitable for:

• Industrial electricians
• Electrical maintenance technicians
• Electronics repair technicians
• Control-panel manufacturers
• Automation engineers
• Field service technicians
• Electrical contractors
• Facility maintenance teams
• Machine maintenance departments
• Original equipment manufacturers
• Printed circuit-board repair centres
• Electrical testing laboratories
• Technical training institutes
• Instrumentation technicians
• Industrial production plants
• Power-supply repair technicians
• Appliance service centres
• Research and development teams working with electronic circuits

It is especially suitable for buyers who need one multimeter kit for both general electrical measurements and fine electronic circuit-board testing.

Frequently Asked Questions

1. What is the Fluke 15B MAX Kit?

The Fluke 15B MAX Kit is a digital multimeter package containing the Fluke 15B MAX meter, TL75 general-purpose test leads, TL31 extra-slim test leads, protective caps, two AA batteries and safety information.

2. What can the Fluke 15B MAX measure?

It can measure AC voltage, DC voltage, AC current, DC current, resistance and capacitance. It also provides continuity and diode testing functions.

3. What is the maximum voltage measurement range?

The Fluke 15B MAX can measure AC and DC voltage up to 1000 V.

4. What is the maximum current range?

It can measure AC and DC current up to 10 A.

5. What is the display count of the Fluke 15B MAX?

It has a 6000-count LCD. The display updates approximately three times per second.

6. Does the Fluke 15B MAX have a backlit display?

Yes. It includes an LCD backlight for working in electrical cabinets, equipment rooms and poorly illuminated areas.

7. What is the maximum resistance range?

The multimeter can measure resistance up to 40 MΩ.

8. What is the maximum capacitance range?

The Fluke 15B MAX can measure capacitance up to 2000 µF.

9. Does the Fluke 15B MAX measure frequency?

No. Frequency and duty-cycle measurement are not specified functions of the Fluke 15B MAX. These functions are available on the Fluke 17B MAX.

10. Does the Fluke 15B MAX measure temperature?

No. Temperature measurement is not included in the Fluke 15B MAX specification.

11. What is the difference between the TL75 and TL31 test leads?

TL75 test leads are general-purpose probes suitable for routine electrical testing. TL31 extra-slim test leads have finer probe tips for small terminals, densely arranged components and printed circuit-board measurements.

12. Are both TL75 and TL31 test leads included?

Yes. The Fluke 15B MAX Kit includes both TL75 test leads and TL31 extra-slim test leads. Each set is supplied with two protective caps.

13. What does the Input Alert feature do?

Input Alert provides an audible and visual warning when the test leads are connected to an incorrect terminal for the selected function. It helps reduce incorrect test-lead connections.

14. Can the Fluke 15B MAX test circuit boards?

Yes. The included TL31 extra-slim probes are designed for accessing small components and closely spaced contact points on electronic circuit boards.

15. Can it test continuity?

Yes. The continuity function helps identify complete electrical paths, broken wires, open fuses, faulty switches and loose connections.

16. Can it test diodes?

Yes. The diode-test mode can be used to measure the forward voltage drop and identify open or shorted diodes.

17. What is the safety rating of the Fluke 15B MAX?

The meter has a CAT III 600 V safety rating and is designed according to the applicable IEC electrical safety requirements stated in the technical document.

18. Does the Fluke 15B MAX have input fuse protection?

Yes. Its current measurement inputs are protected by fast-blow fuses specified by Fluke.

19. What batteries does the meter use?

It operates using two AA batteries.

20. What is the battery life?

The specified minimum battery life is approximately 500 hours under the stated operating conditions.
